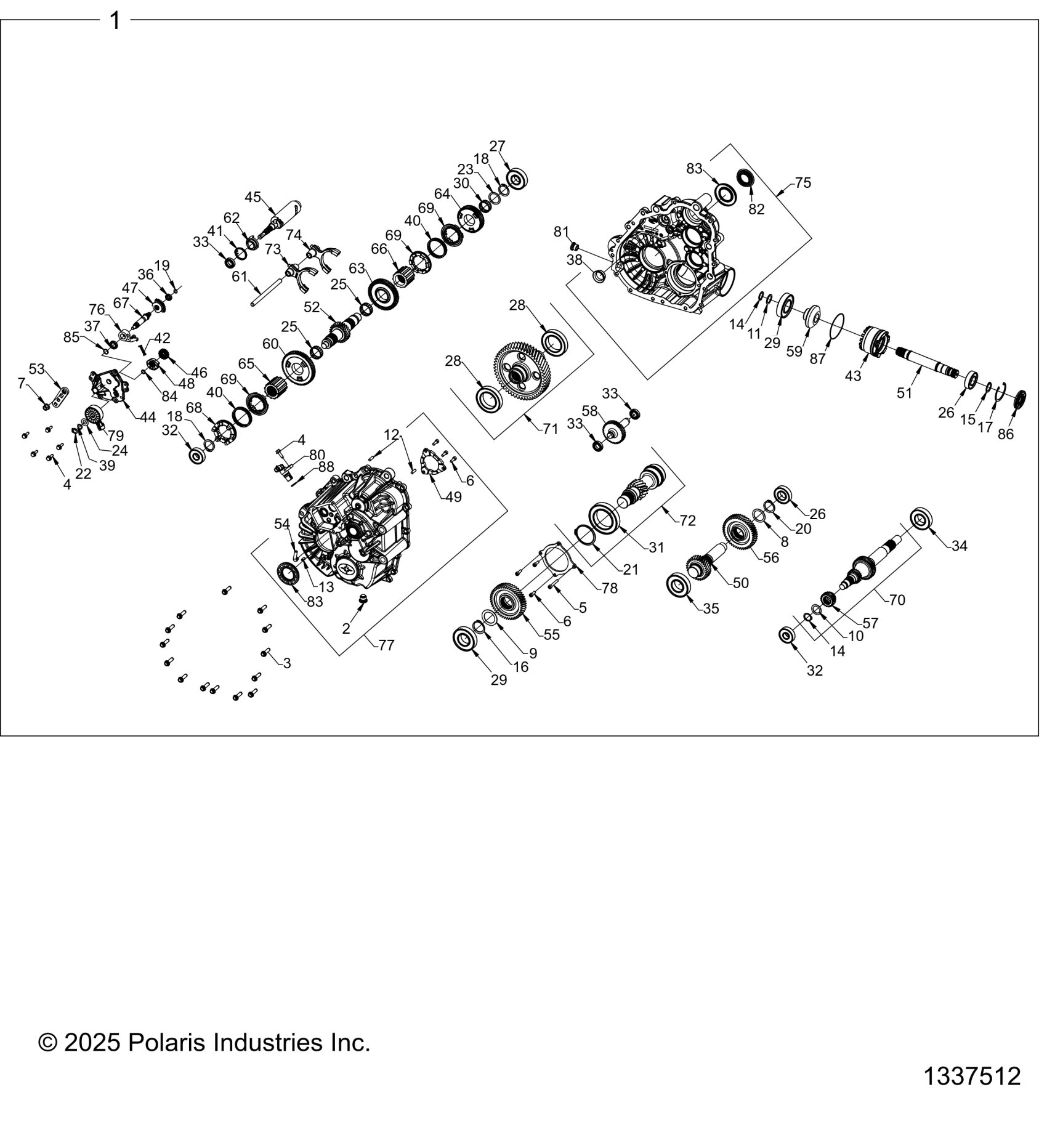

Polaris RZR XP 1000 ULTIMATE (R01) - Z26NET99A4/B4/A6/B6 DRIVE TRAIN, MAIN GEARCASE INTERNALS - Z26NET99A4/B4/A6/B6 (1337512) Diagram

#

Description
Price

1

ASM-GEARCASE,MAIN,424510 [INCL. ALL]

1337512

$4,864.99

2

PLUG, M18 X 1.5 MAGNETIC

3234756

$31.75

3

SCREW-HEXFLANGEHEAD,M8X1.25X30

3234898

$9.52

4

SCREW, HEX FLANGE HEAD, M6 X 1 X 20

3235206

$7.14

4

SCREW, HEX FLANGE HEAD, M6 X 1 X 20

3235206

$7.14

5

SCREW, SOCKET HEAD, CAP, M6 X 1.0 X 40

3235208

$11.11

6

SCREW, SOCKET HEAD, CAP, M6 X 1.0 X 18

3235332

$3.97

6

SCREW, SOCKET HEAD, CAP, M6 X 1.0 X 18

3235332

$3.97

7

NUT, LOCK HEX FLANGE, NYLON M8 X 1.25

3235210

$7.94

8

WASHER-32.3X42X1.5(115288)

3235211

$10.32

9

WASHER-35.6X57X1.5(115289)

3235212

$13.49

10

WASHER 22.70 X 32.0 X 1.5

3235991

$12.34

11

WASHER, 22.5 X 30 X 1.5

3236410

$9.49

12

PIN, DOWEL 6 X 20

3234330

$7.14

13

PIN, SPRING, SLOTTED 6 X 12

7043746

$8.08

14

RING, RETAINING BASIC EXTERNAL

7710434

$3.97

14

RING, RETAINING BASIC EXTERNAL

7710434

$3.97

15

RING,RETAINING BASIC,EXTERNAL 0.984

3233106

$5.56

16

RING, RETAINING, SHAFT, DIA. 1.375

3233364

$6.46

17

RING,RETAINING BASIC,INTERNAL 2.047

3234269

$9.52

18

RING, RETAINING,

3234205

$11.11

18

RING, RETAINING,

3234205

$11.11

19

RING, RETAINING, BASIC EXTERNAL SH-39

3239594

$7.94

20

RING-RETAIN,EXT,MSR-32(130296)

3235214

$9.52

21

RING-RETAIN,VSH-237(130298)

3235216

$10.32

22

RING-RETAINING,SHF-43

3239951

Unavailable

23

WASHER,THRUST,1.187 X 1.500 X .0600

3233378

$9.52

24

WASHER,THRUST,0.446 X 0.88 X 0.025

3234642

$10.32

25

BEARING, NEEDLE

3233014

$43.65

25

BEARING, NEEDLE

3233014

$43.65

26

BEARING, BALL, 6205 C3 25X52X15

3233019

$31.75

26

BEARING, BALL, 6205 C3 25X52X15

3233019

$31.75

27

BEARING

3233020

$47.62

28

BEARING-BALL 6010 C3 50 X 80 X 10

3233268

$51.59

28

BEARING-BALL 6010 C3 50 X 80 X 10

3233268

$51.59

29

BEARING,BALL 6207 C3 35X72X17

3234065

$47.62

29

BEARING,BALL 6207 C3 35X72X17

3234065

$47.62

30

BEARING-NEEDLE,30X35X13-CAGED

3233384

$31.75

31

BEARING, BALL, 6012 C3 60 X 95 X 18

3235218

$59.52

32

BEARING, BALL 6303, 17 X 47 X 14

3234652

$15.87

32

BEARING, BALL 6303, 17 X 47 X 14

3234652

$15.87

33

BEARING, BALL 6903 17 X 30 X 7

3235807

$35.71

33

BEARING, BALL 6903 17 X 30 X 7

3235807

$35.71

33

BEARING, BALL 6903 17 X 30 X 7

3235807

$35.71

34

BEARING, BALL 62/32

3236773

$59.99

35

BEARING,BALL 6207 PEER HP C3 35X72X17

3239477

$39.68

36

BEARING, BALL 6800, 10 X 19 X 5

3239595

$11.90

37

BEARING, BALL 6802, 15 X 24 X 5

3239596

$11.90

38

BEARING, PLAIN FLNGD, 28 X 32 X 13.00

3239597

$15.87

39

WASHER-SPRING,210393

3235327

$9.52

40

SPRING, WAVE, 53.00 ID X 61.00 OD

3239598

$16.99

40

SPRING, WAVE, 53.00 ID X 61.00 OD

3239598

$16.99

41

SPRING, TORSION

3239599

$24.27

42

SPRING, COMPRESSION, DETENT

3239600

$13.75

43

TUBE, SNORKEL MACH

3236120

$194.74

44

COVER-SECTOR GEARS,MACH

3239981

Unavailable

45

DRUM-SHIFT,MACH

3239982

$169.98

46

GEAR, SECTOR, 16T

3233839

$36.41

47

GEAR-SECTOR,31T

3233832

$36.41

48

STAR, DETENT

3239602

$36.41

49

PLATE, PARK 6-FACE

3239815

$40.46

50

SHAFT-IDLER,29T(285803)

3235223

$128.24

51

SHAFT, FRONT OUTPUT

3236411

$159.75

52

SHAFT,REVERSE,25T

3239606

$184.99

53

BELLCRANK, 92 DEGREE

3235227

$28.32

54

TUBE, VENT 90 -1/4 INCH HOSE

3234230

$10.51

55

GEAR-46T,STAGE 3(352872)

3235236

$128.24

56

GEAR, 48T, STAGE 2

3235450

$156.74

57

GEAR, LOW 25T

3236132

$75.99

58

GEAR, IDLER 39T

3235986

$113.32

59

GEAR, 13T SNORKEL

3236412

$170.99

60

GEAR, LOW 67T

3239610

$117.37

61

RAIL, SHIFT SHAFT

3239612

$24.27

62

CAM, PARK

3239614

$183.95

63

GEAR, REVERSE 56T

3239615

$97.13

64

GEAR, HIGH 52T

3239616

$96.81

65

SLEEVE, PARK

3239675

$59.99

66

SLEEVE, HIGH

3239676

$29.99

67

SHAFT-SHIFT

3239985

$49.99

68

SHIFT DOG, PARK

3239984

$84.99

69

DOG, SHIFT

3239983

Unavailable

69

DOG, SHIFT

3239983

Unavailable

69

DOG, SHIFT

3239983

Unavailable

70

SUBASSEMBLY, INPUT 43T/22T/25T

3236691

$416.33

71

SUBASSEMBLY, OUTPUT

3239361

$439.99

72

SUBASSEMBLY, PINION SP

3239521

$470.24

73

SUBASSEMBLY, SHIFT FORK

3239620

$72.84

74

SUBASSEMBLY, SHIFT FORK

3239621

$72.84

75

SUBASSEMBLY, LH CASE

3239838

Unavailable

76

ASM-PAWL,DETENT,ROLLER

3239902

Unavailable

77

SUBASSEMBLY, RH CASE

3239941

Unavailable

78

COVER-BEARING,CNTR DR.

3235241

$48.56

79

SWITCH, ROTARY, 2 PIN RESISTIVE

7662468

$54.99

80

SENSOR-SPEED (INLCUDES ITEM #88 O-RING)

4082135

$109.27

81

PLUG, M18 X 1.5

3234755

$27.78

82

SEAL-LGHTR LIP W/FLNGE,32X49X9

3239564

$60.70

83

SEAL-TRIPLE LIP,VITON,40X70X7

3239726

Unavailable

83

SEAL-TRIPLE LIP,VITON,40X70X7

3239726

Unavailable

84

O-RING, -012 VITON

3233836

$6.87

85

O-RING, -014 VITON

3233828

$6.87

86

SEAL, TRIPLE LIP 25 X 55 X 8

3236135

$56.65

87

O-RING 2.989 I.D. X 0.07

3236136

$11.39

88

O-RING, -016 VITON

3236279

$5.65
