Description

Price

-

KIT-TORSION,SPRING AND RETAINER [INCLUDES 22 & 26]

3235712

$43.56

-

BEARINGS [INCLUDES 3 & 4]

3236051

$194.99

-

KIT-GEAR HOUSING & PINION GEAR ASSSY [INCLUDES 4,11,12,16,20,29 & 32]

3236764

$949.99

-

ASM - OUTPUT HUB (ALUM) LG ROLL [INCLUDES 3,7,8,19 & 28]

3239362

$493.79

-

ASM-COVER OUTPUT [INCLUDES 1,10,14,24,27 & 31]

3239525

$484.11

-

K-SEAL REPAIR [INCLUDES 1,9 & 10]

3239524

$95.24

-

ASM-GEARCASE [INCLUDES 2,5,6,10,15,17,33 & 34]

3239523

$1,904.74

-

ASM-GRCASE,FRT,ISO,3.25,LRZC [INCLUDES ALL]

1337397

$2,004.99

-

ASM-ROLL CAGE [INCLUDES 18 & 23]

3239819

Unavailable

1

O-RING

----

Unavailable

2

VENT TUBE

----

Unavailable

3

BEARING

----

Unavailable

3

BEARING

----

Unavailable

4

BEARING, DOUBLE ROW

----

Unavailable

5

BUSHING, DU

----

Unavailable

6

BUSHING

----

Unavailable

7

BUSHING, INNER

----

Unavailable

8

BUSHING, OUTER

----

Unavailable

9

SEAL, OIL

----

Unavailable

10

SEAL, OIL, CUSTOM

----

Unavailable

10

SEAL, OIL, CUSTOM

----

Unavailable

11

RING, RETAINING, INNER

----

Unavailable

12

RING, RETAINING

----

Unavailable

13

COVER-FASTNERS [INCLUDES QTY 7]

3235483

$62.92

14

COVER

----

Unavailable

15

GEARCASE

----

Unavailable

16

RING GEAR

----

Unavailable

17

KIT-ISOLATOR

5417265

$39.99

18

BUSHING

----

Unavailable

19

ASM-HUB

----

Unavailable

19

ASM-HUB

----

Unavailable

20

SHIM

----

Unavailable

21

CAGE ROLLERS [INCLUDES QTY 24]

3235486

$8.08

22

TORSION SPRING

----

Unavailable

23

SPRING-H CLIP

----

Unavailable

24

ASM-CONNECTOR

----

Unavailable

25

SPACER-RING GEAR

3234437

$19.84

26

ASM-SPRING RETAINER

----

Unavailable

27

SPACER-BACKLASH

----

Unavailable

28

SPACER-NYLON

----

Unavailable

29

PINION

----

Unavailable

30

PLATE-4WD ARMATURE

3236048

$113.32

31

COIL

----

Unavailable

32

WELD STUD

----

Unavailable

33

KIT-PLUG,FILL

2203739

$44.51

34

KIT-PLUG,DRAIN

2203738

$42.74

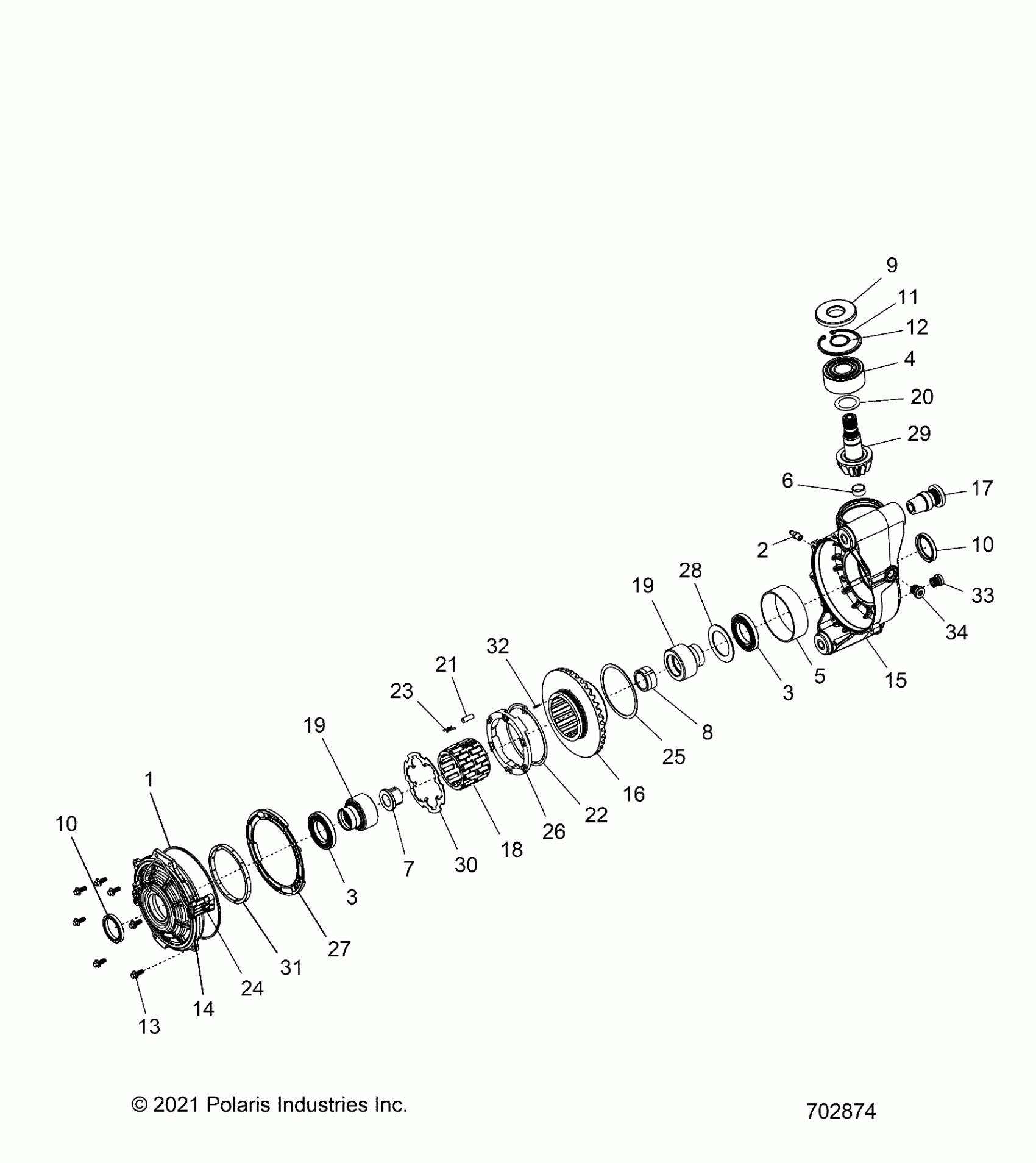

Polaris RZR XP 1000 ULTIMATE (R01) - Z26NET99A4/B4/A6/B6 DRIVE TRAIN, FRONT GEARCASE INTERNALS - Z26NET99A4/B4/A6/B6 (702794) Diagram

KIT-TORSION,SPRING AND RETAINER [INCLUDES 22 & 26]

BEARINGS [INCLUDES 3 & 4]

KIT-GEAR HOUSING & PINION GEAR ASSSY [INCLUDES 4,11,12,16,20,29 & 32]

ASM - OUTPUT HUB (ALUM) LG ROLL [INCLUDES 3,7,8,19 & 28]

ASM-COVER OUTPUT [INCLUDES 1,10,14,24,27 & 31]

K-SEAL REPAIR [INCLUDES 1,9 & 10]

ASM-GEARCASE [INCLUDES 2,5,6,10,15,17,33 & 34]

ASM-GRCASE,FRT,ISO,3.25,LRZC [INCLUDES ALL]

ASM-ROLL CAGE [INCLUDES 18 & 23]

O-RING

VENT TUBE

BEARING

BEARING

BEARING, DOUBLE ROW

BUSHING, DU

BUSHING

BUSHING, INNER

BUSHING, OUTER

SEAL, OIL

SEAL, OIL, CUSTOM

SEAL, OIL, CUSTOM

RING, RETAINING, INNER

RING, RETAINING

COVER-FASTNERS [INCLUDES QTY 7]

COVER

GEARCASE

RING GEAR

KIT-ISOLATOR

BUSHING

ASM-HUB

ASM-HUB

SHIM

CAGE ROLLERS [INCLUDES QTY 24]

TORSION SPRING

SPRING-H CLIP

ASM-CONNECTOR

SPACER-RING GEAR

ASM-SPRING RETAINER

SPACER-BACKLASH

SPACER-NYLON

PINION

PLATE-4WD ARMATURE

COIL

WELD STUD

KIT-PLUG,FILL

KIT-PLUG,DRAIN
