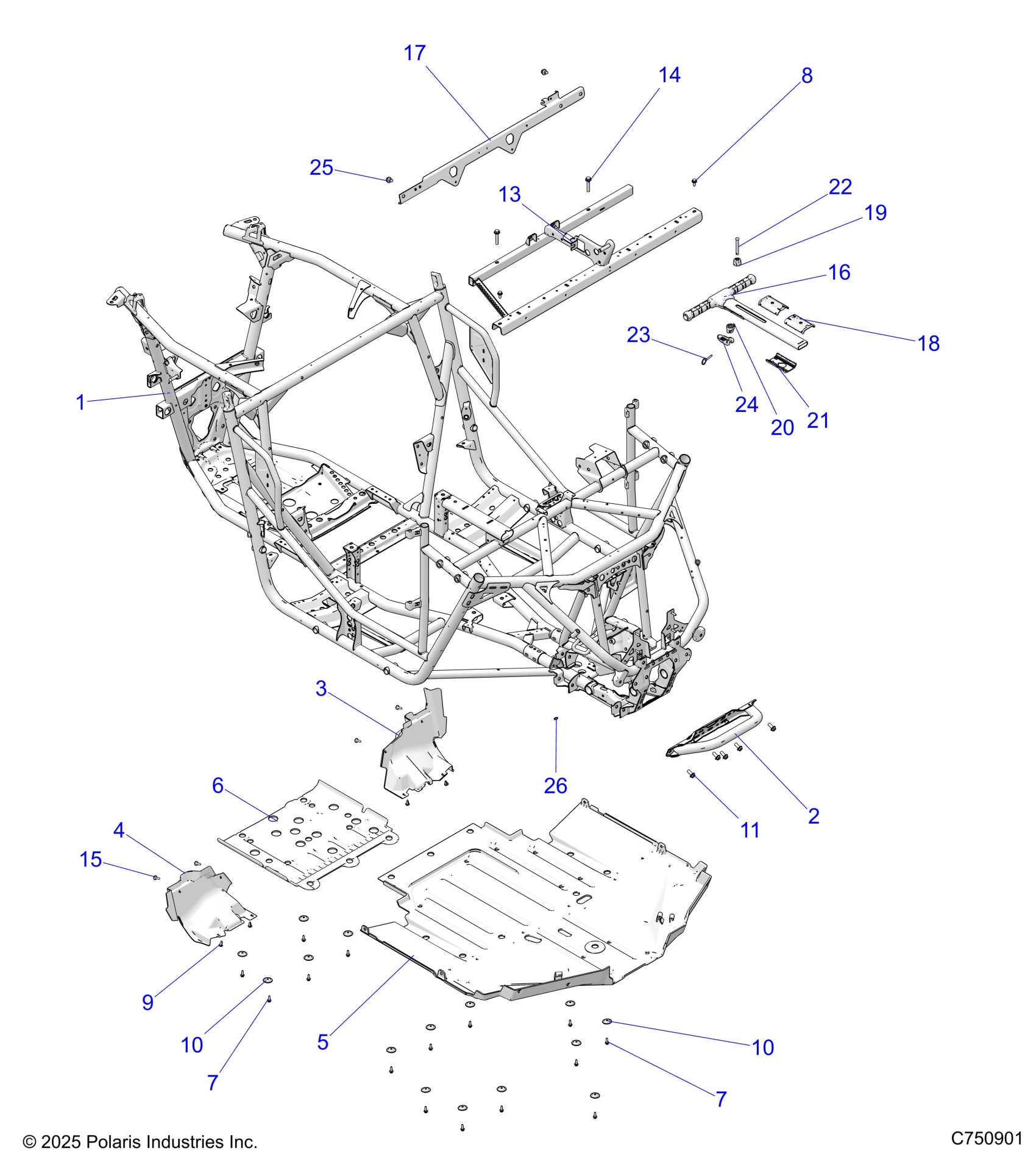

Polaris RZR XP 1000 ULTIMATE (R01) - Z26NET99A4/B4/A6/B6 CHASSIS, MAIN FRAME AND SKID PLATES - Z26NET99A4/B4/A6/B6 (C750901) Diagram

#

Description
Price

1

WELD-FRAME MAIN,72,BLK

1028958-458

$3,744.99

2

WELD-FRT,BUMPER,RED

1028894-293

$299.99

3

COVER-SCM,LH,BLK

5457593-070

$40.46

4

COVER-TANK,RH,BLK

5457594-070

$36.41

5

SKID PLATE-FRONT,BLK

5466370-070

$369.99

6

PLATE-SKID,REAR,BLK

5458920-070

$209.99

7

SCR-M6X1.0X20,HXHD,FLG,TDFM,BK

7518529

$1.19

7

SCR-M6X1.0X20,HXHD,FLG,TDFM,BK

7518529

$1.19

8

SCR-TFHFL-M8X1.25X20 CHS ZOD

7518555

$2.38

9

RIVET-TUFLOK,.315-.325X.787

7661855

$1.19

10

WASHER-SKID PLATE

7556065

$4.76

10

WASHER-SKID PLATE

7556065

$4.76

11

SCR-M10X1.5X25 8.8 HXFL ZOD

7519071

$4.76

13

WELD-SEAT BASE,FRT,BLK

1026956-329

$259.99

14

SCR-HXFL-M10X1.5X55 8.8 ZY3

7518474

$4.76

15

SCR-TXTH-M6X1.0X25 ZFB

7519650

$3.97

16

ASM-GRAB BAR

2637771

$84.98

17

BRKT-CLOSE OFF SUPPORT,ECOAT

5274852-329

$114.99

18

BUSHING-GRAB BAR,UPPER

5457427

$4.76

19

NUT-GRAB BAR

5457511

$7.14

20

CAP,GRAB BAR LEVER

5457512

$4.84

21

BUSHING-GRAB BAR,LOWER

5457891

$4.76

22

ROD-GRAB BAR THREADED

7521309

$8.99

23

PIN-GRAB BAR

7663047

$9.99

24

LEVER,GRAB BAR

5459039

$3.22

25

SCR-HXFL-M10X1.25X16 8.8 ZY3

7520200

$3.97

26

NUT-WELD,M6X1,PROJECTION

7547307

$3.17
