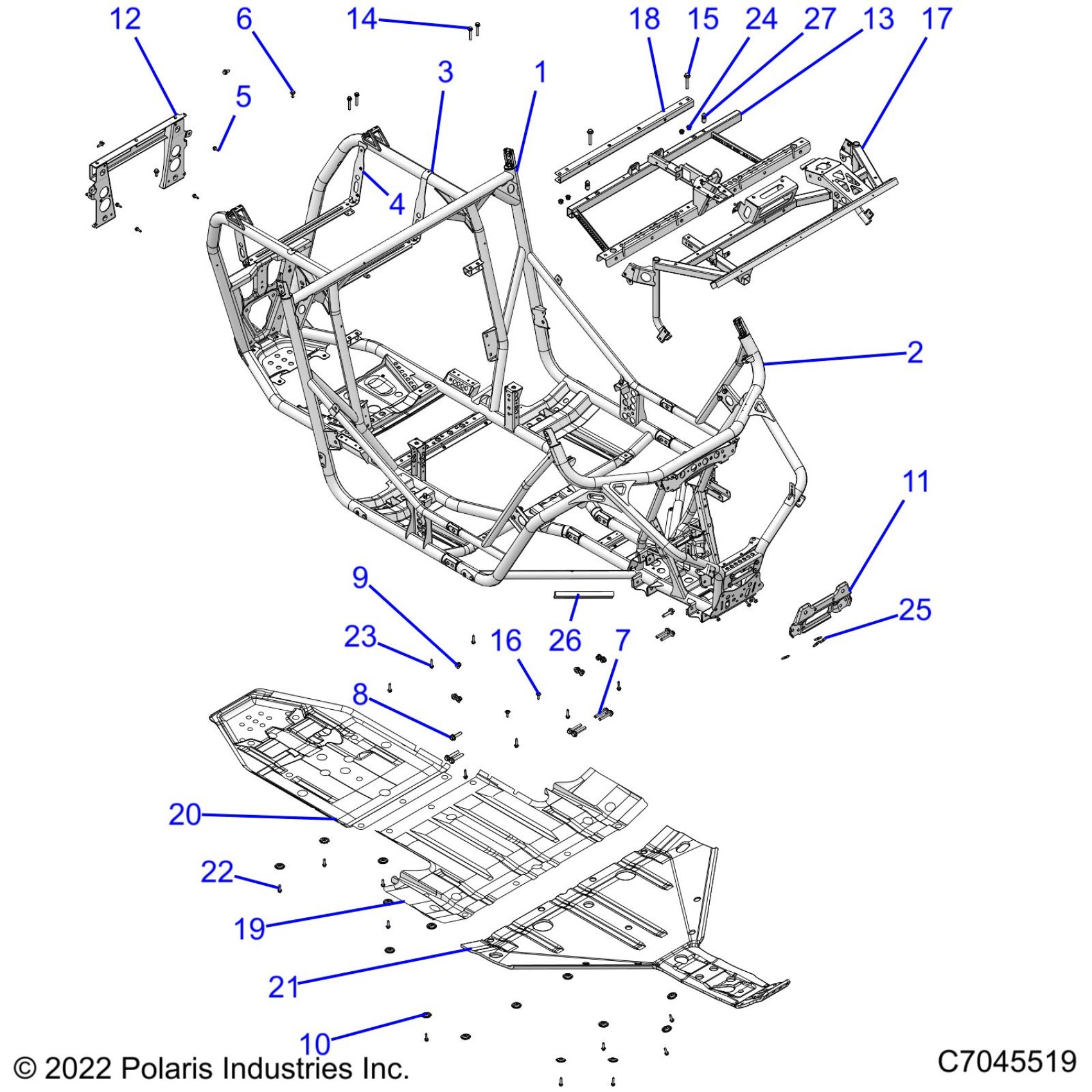

Polaris RZR XP 1000 TRAILS & ROCKS (R02) - Z22NAR99AF/BF CHASSIS, MAIN FRAME AND SKID PLATES - Z22NAR99AF/BF (C700273) Diagram

WELD-MAIN FRAME,BLK

1024526-458

$2,406.79

WELD-MAINFRAME,FRT,SWAY,BLK

1024369-458

$2,415.59

BRACKET, BOX STRAP, BLACK

5260947-329

$43.99

BRKT-BOX SUPPORT REAR,ECOAT

5264553-329

$39.99

SCR-M6X1.0X20,HXHD,FLG,TDFM,BK

7518529

$1.49

SCR-TFHFL-M8X1.25X20 CHS ZOD

7518555

$2.39

SCR-HXFL-M10X1.25X55 10.9 ZOD

7519285

$2.39

SCR-HXFL-M10X1.25X40 8.8 ZOD

7519332

$5.59

NUT-HXFL M10X1.25 8 ZTB NYL

7547333

$1.59

WASHER-SKID PLATE

7556065

$4.79

BRKT-SUSP MNT,FRT,M.BLK

5259449-458

$51.99

SUPPORT, REAR, MATTE BLACK

1019529-458

$115.99

WELD-SEAT BASE,BLK

1022443-329

$283.99

SCR-SH-M8X1.25X30 8.8 ZPC

7516732

$1.59

SCR-HXFL-M10X1.5X55 8.8 ZY3

7518474

$4.79

SCR-TXTH-M6X1.0X25 ZFB

7519650

$3.99

WELD-DASH,TURBO,S,ECOAT

1024577-329

$307.99

BRKT-CLOSE OFF SUPPORT,BLK

5260539-329

$35.99

SKIDPLATE-HMW,MID,RZN

5450926

$271.99

SKIDPLATE-HMW,RR,RZN,R2

5452769

$271.99

SKIDPLATE-HMW,FRT,BUMPER WRAP

5455926

$359.99

SCR-TFHFL-M6X1.0X25,ZOD

7519342

$1.86

BOLT-HXFL-M6X1.0X30 RIE TAPR

7519344

$3.99

NUT- M8X1.25, FLG, NYLOC-OLIVE D

7547332

$3.99

WASHER-.270X1.25X.060,FL-Y

7558221

$2.39

BRAKET, SKID PLATE MOUNT, BLACK

5260402-329

$47.99

LATCH, PLUNGER, SEAT

5632848

$13.59
