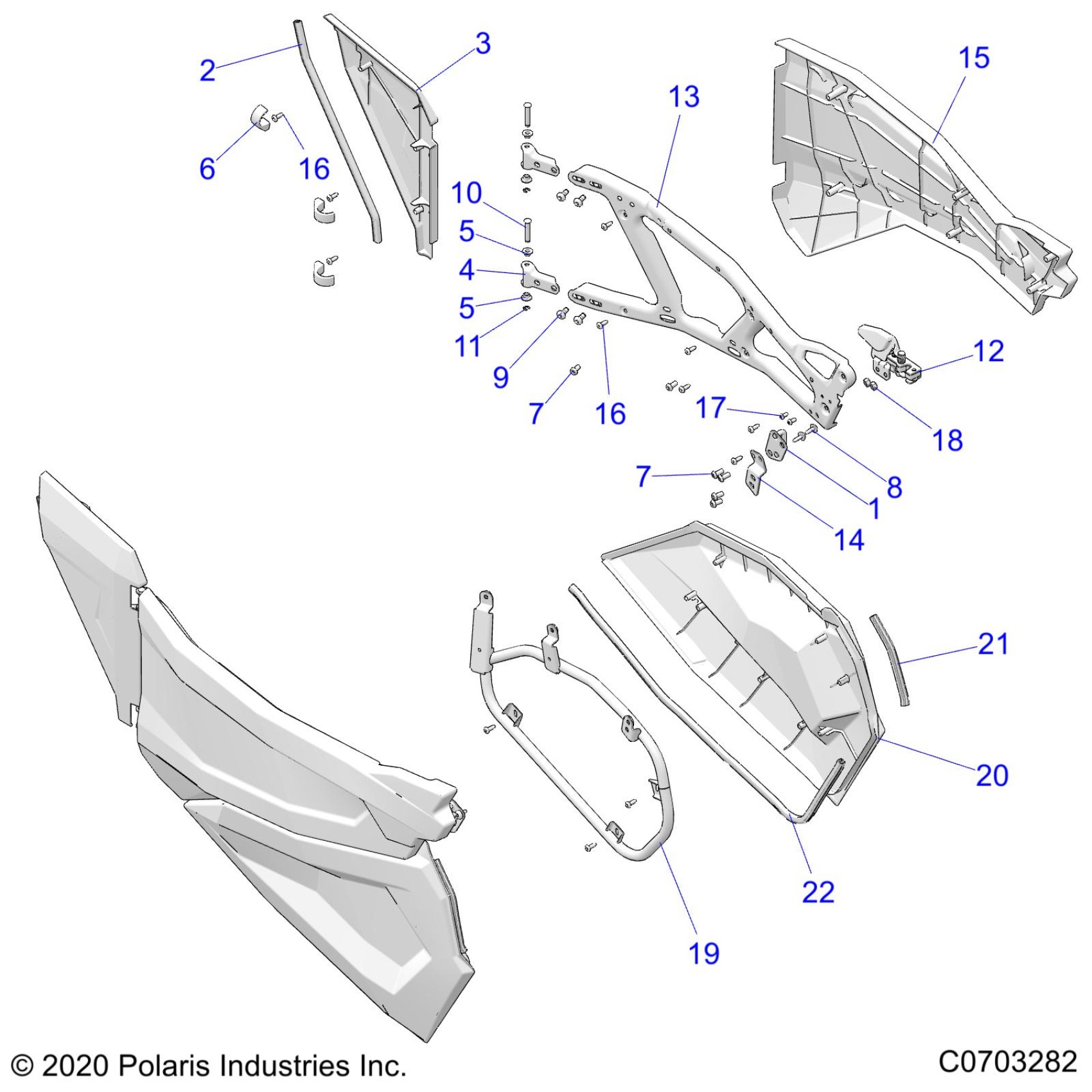

Polaris RZR XP 1000 TRAILS & ROCKS (R02) - Z21NAR99AN/BN BODY, DOORS - Z21NAR99AN/BN (C0703282) Diagram

#

Description
Price

1

ASM., STRIKER, LH

1021237

$39.99

1

ASM., STRIKER, RH

1021238

$39.99

2

SEAL-WTHRSTRP,BOLSTER,RZN

5522024-450

$43.99

3

ASM., BOLSTER, LH [INCL. 2]

2635693

$79.99

3

ASM., BOLSTER, RH [INCL. 2]

2635694

$79.99

4

BRACKET, DOOR, HINGE

5258008

Unavailable

5

BUSHING, DOOR, PIVOT

5450592

$2.39

5

BUSHING, DOOR, PIVOT

5450592

$2.39

6

BRKT-J MOUNT,INJ,RZN

5451472

$15.99

7

SCREW-HXBH-M8X1.25X16 10.9 ZPB

7517484

$4.79

7

SCREW-HXBH-M8X1.25X16 10.9 ZPB

7517484

$4.79

8

SCREW-TXTH-M6X1.0X20 T40 ZPB

7519112

$3.19

9

SCR-TXTH-M8X1.25X20 8.8 ZB3 P3

7519997

$3.99

10

PIN-DOOR HINGE

7663016

$4.79

11

E-CLIP,M6, DIN 6799

7710466

$3.19

12

ASM-LATCH,DOOR,LH

2637286

$71.99

12

ASM-LATCH,DOOR,RH

2637287

$71.99

13

STAMPING, DOOR FRAME, LH, MATTE BLACK

5257929-458

$147.99

13

STAMPING, DOOR FRAME, RH, MATTE BLACK

5257930-458

$147.99

14

MOUNT-LWR DOOR,LH,RZN

5258254

$27.99

14

MOUNT-LWR DOOR,RH,RZN

5258255

$27.99

15

DOOR, SKIN, LH

5450636

$119.99

15

DOOR, SKIN, RH

5450638

$119.99

16

SCR-TX TRUSS-#14X3/4, HI/LO ZBK

7519045

Unavailable

16

SCR-TX TRUSS-#14X3/4, HI/LO ZBK

7519045

Unavailable

17

SCREW-TXBH-M6X1.0X12 8.8 ZPB D20

7519063

$3.99

18

NUT-NYLOCK M8X1.25-Y

7547144

$3.19

19

WELD-MOUNT,DOOR,LOWER,LH,RZN

1019994

$107.99

19

WELD-MOUNT,DOOR,LOWER,RH,RZN

1019999

$107.99

20

PANEL, DOOR, PLASTIC, LOWER, LH

5450616

$107.99

20

PANEL, DOOR, PLASTIC, LOWER, RH

5450617

$107.99

21

SEAL, WEATHER STRIP, LOWER, DOOR

5522024-180

$23.99

22

SEAL, WEATHER STRIP, LOWER, DOOR

5522024-837

$43.99
