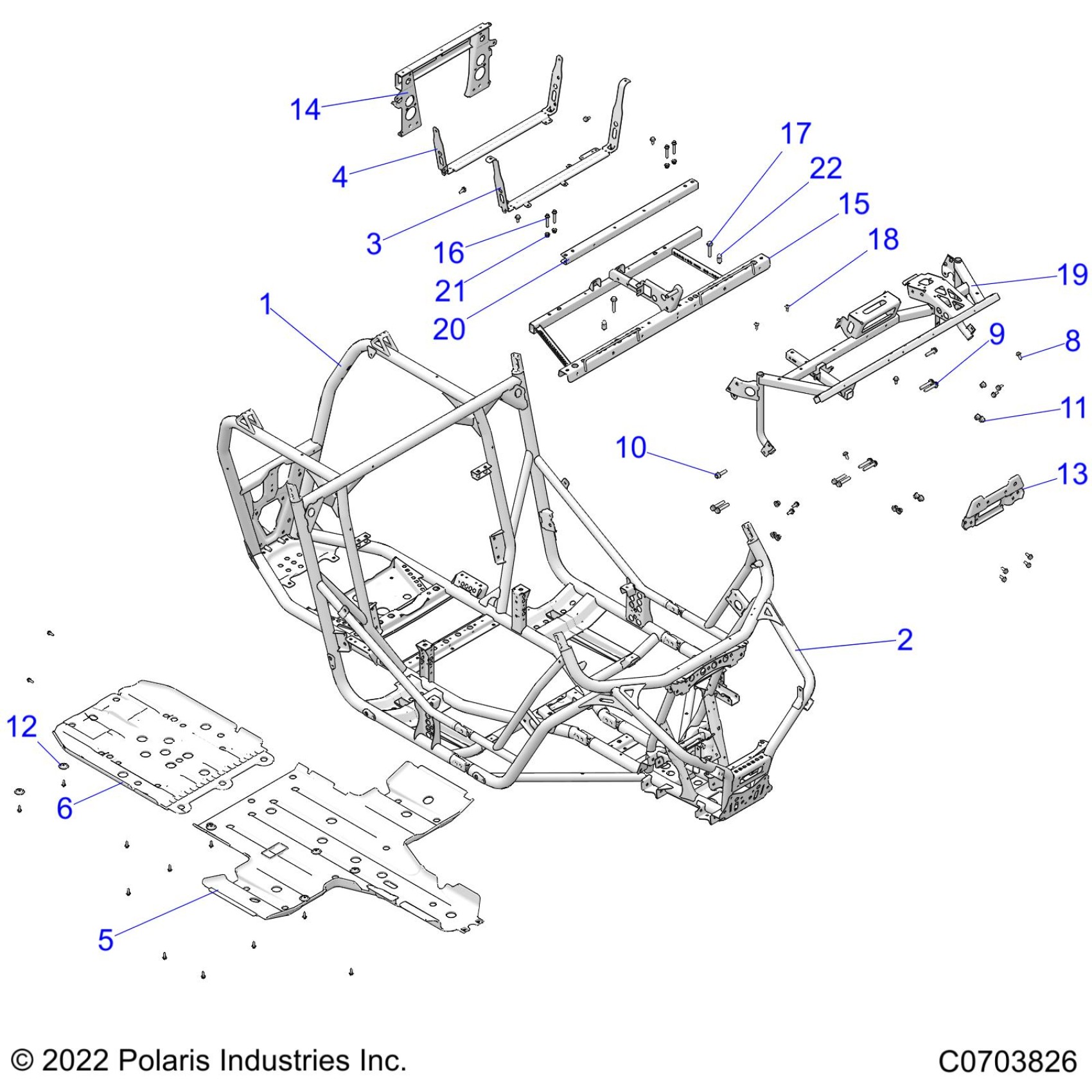

Polaris RZR XP 1000 SPORT (R07) - Z22NAE99AJ/AN/BJ/BN CHASSIS, MAIN FRAME AND SKID PLATES - Z22NAE99AJ/AN/BJ/BN (C0703826) Diagram

WELD-MAIN FRAME,BLK

1024526-458

$2,406.79

WELD-MAINFRAME,FRT,SWAY,BLK

1024369-458

$2,415.59

BRACKET, BOX STRAP, BLACK

5260947-329

$43.99

BRKT-BOX SUPPORT REAR,ECOAT

5264553-329

$39.99

PLATE-SKID,BLK

5456432-070

$239.99

PLATE-SKID,REAR,BLK

5458186-070

$239.99

SCR-TFHFL-M8X1.25X20 CHS ZOD

7518555

$2.39

SCR-HXFL-M10X1.25X55 10.9 ZOD

7519285

$2.39

SCR-HXFL-M10X1.25X40 8.8 ZOD

7519332

$5.59

NUT-HXFL M10X1.25 8 ZTB NYL

7547333

$1.59

WASHER-SKID PLATE

7556065

$4.79

BRKT-SUSP MNT,FRT,M.BLK

5259449-458

$51.99

SUPPORT, REAR, MATTE BLACK

1019529-458

$115.99

WELD-SEAT BASE,BLK

1020571-329

$195.99

SCR-SH-M8X1.25X30 8.8 ZPC

7516732

$1.59

SCR-HXFL-M10X1.5X55 8.8 ZY3

7518474

$4.79

SCR-TXTH-M6X1.0X25 ZFB

7519650

$3.99

WELD-DASH,TURBO,S,ECOAT

1024577-329

$307.99

BRKT-CLOSE OFF SUPPORT,BLK

5260539-329

$35.99

NUT- M8X1.25, FLG, NYLOC-OLIVE D

7547332

$3.99

LATCH, PLUNGER, SEAT

5632848

$13.59
