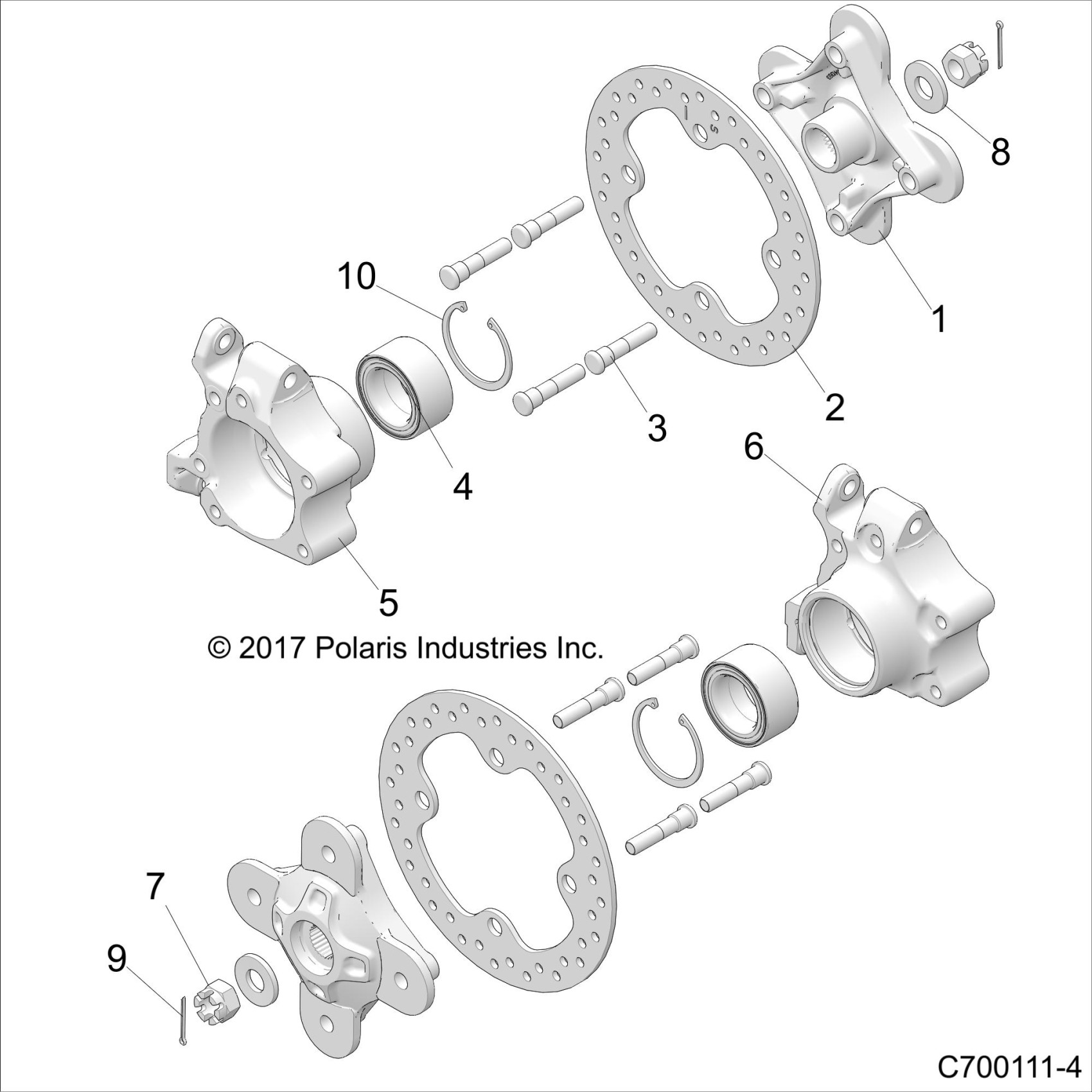

Polaris RZR XP 1000 SPORT (R05) - Z23NAE99AL/99BL/AR/BR SUSPENSION, REAR CARRIER AND HUB - Z23NAE99A/99B (C700111-4) Diagram

#

Description

Price

1

HUB-WHEEL(MACH),BLK

5141353-067

$99.99

2

DISC, BRAKE

5257196

$63.99

3

STUD-WHEEL,M12-1.5

7519792

$5.59

4

BEARING-BALL,SEALED,44X72X33.1

3514924

$39.99

4

BEARING-WHEEL,HD,44X72X33.1MM [OPTIONAL]

3515090

$63.99

4

BEARING-BALL,SEALED,44X72X33.1

3514924

$39.99

4

BEARING-WHEEL,HD,44X72X33.1MM [OPTIONAL]

3515090

$63.99

5

CARRIER-BEARING,WHEEL,LH(MACH)

5140634

$151.99

6

CARRIER-BEARING,WHEEL,RH(MACH)

5140635

$151.99

7

NUT-M18X1.5,CASTLE,ZINC/YELLOW

7547337

$1.99

8

WSHR-AXLE,M18,42X4.5

7557134

$7.99

9

PIN-COTTER 1/8X1 1/2-Y

7661404

$4.79

10

RING-RETAINING,2.875,INTERNAL

7710440

$10.39
