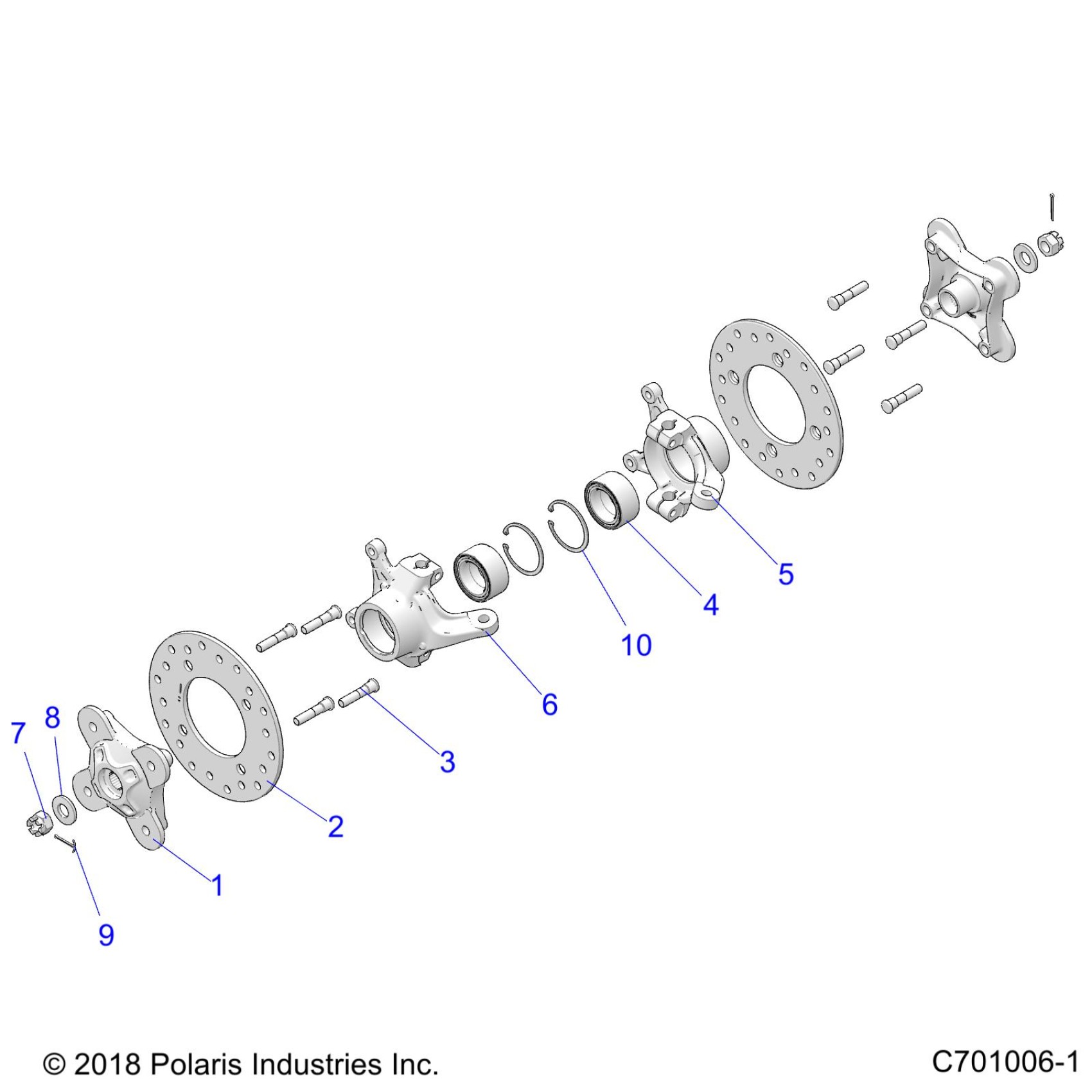

Polaris RZR XP 1000 SPORT (R05) - Z23NAE99AL/99BL/AR/BR SUSPENSION, FRONT CARRIER AND HUB - Z23NAE99A/99B (C701006-1) Diagram

#

Description
Price

1

HUB-WHEEL(MACH),BLK

5141353-067

$105.22

2

DISC, BRAKE

5257196

$64.75

3

STUD-WHEEL,M12-1.5

7519792

$5.56

4

BEARING-BALL,SEALED,44X72X33.1

3514924

$39.68

4

BEARING-WHEEL,HD,44X72X33.1MM [OPTIONAL]

3515090

$63.49

5

KNUCKLE-FRONT,LH(MACH)

5142214

$204.24

6

KNUCKLE-FRONT,RH(MACH)

5142215

$204.24

7

NUT-M18X1.5,CASTLE,ZINC/YELLOW

7547337

$1.98

8

WSHR-AXLE,M18,42X4.5

7557134

$7.94

9

PIN-COTTER 1/8X1 1/2-Y

7661404

$4.76

10

RING-RETAINING,2.835,INTERNAL

7710780

$9.52
