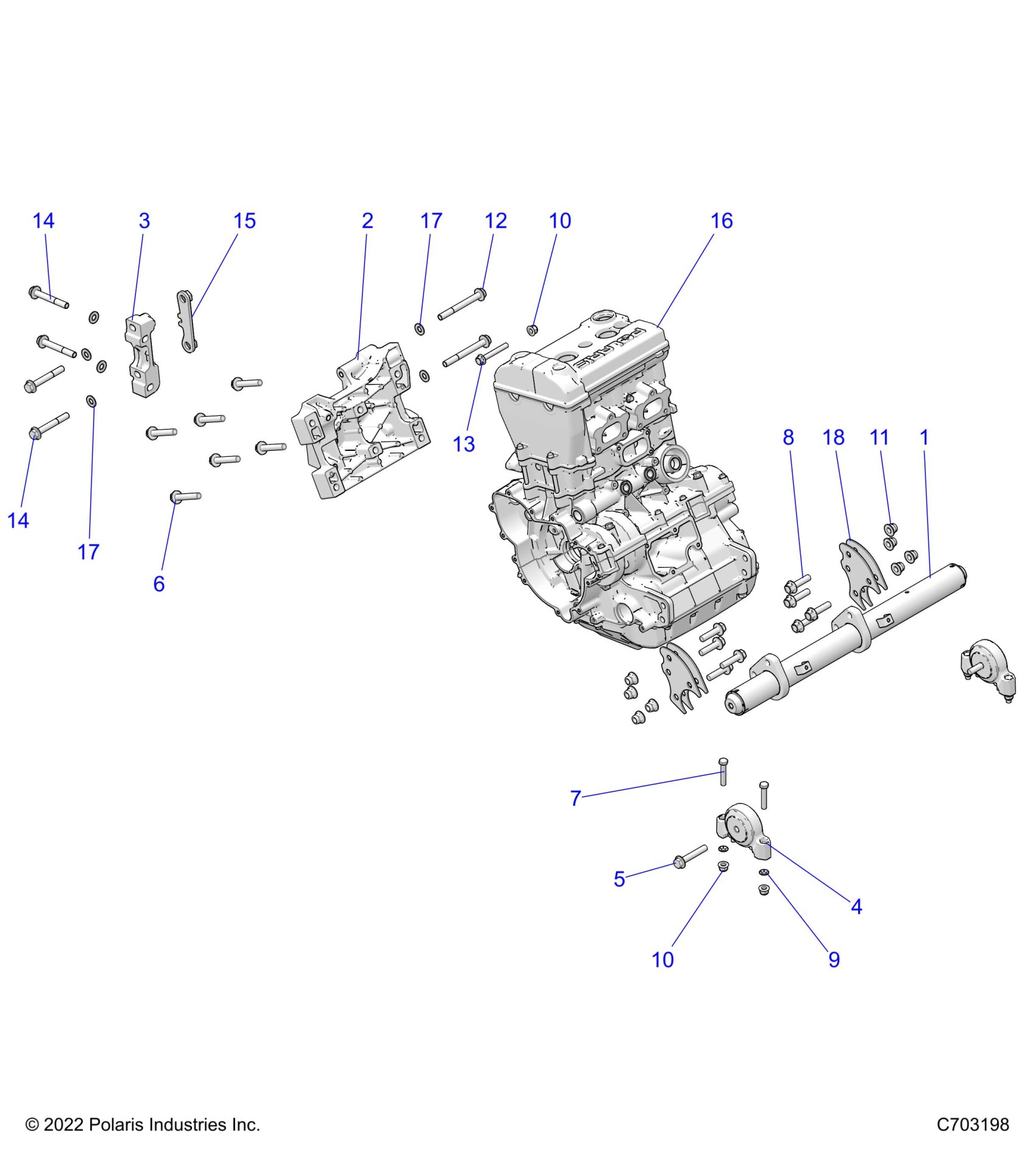

Polaris RZR XP 1000 SPORT (R05) - Z23NAE99AL/99BL/AR/BR ENGINE, MOUNTING & LONG BLOCK - Z23NAE99A/99B (C703198) Diagram

WELD-MOUNT,ENGINE,E.COAT

1024525-329

$147.99

BRKT-TRANSJOINT,MACH

5143718

$174.27

BRACKET, TRANSMISSION JOINT, MACH

5143635

$43.99

MOUNT-ISOLATOR,DRIVELINE

1332955

$71.99

SCR-HXFL-M10X1.25X60 10.9 ZOD

7518826

$4.79

BOLT-M10X1.5X60MM8.8HEXDRILOCK

7520467

$4.79

SCREW-HH M8X1.25X45 8.8 ZOD

7519097

$1.59

SCR-HXFL-M10X1.25X40 8.8 ZOD

7519332

$5.59

NUT-5/16-PAL-Y

7547030

$4.79

NUT- M8X1.25, FLG, NYLOC-OLIVE D

7547332

$3.99

NUT- M8X1.25, FLG, NYLOC-OLIVE D

7547332

$3.99

NUT-HXFL M10X1.25 8 ZTB NYL

7547333

$1.59

SCR-HXFL-M10X1.25X95 10.9 ZOD

7519043

$9.59

SCR-HXFL-M8X1.25X60 8.8 ZOD

7519298

$3.99

SCR-HXFL-M10X1.25X75 10.9 ZOD

7519286

$7.19

SCR-HXFL-M10X1.25X75 10.9 ZOD

7519286

$7.19

WELD-NUT, PLATE

5259964

$23.99

K-LONG BLOCK 999

2209242

$6,120.39

WASHER-3/8 FW SAE STL THRU-HRD

7556153

$1.99

WASHER-3/8 FW SAE STL THRU-HRD

7556153

$1.99

BRACKET, MOUNT, ENGINE

5257952

$31.99
