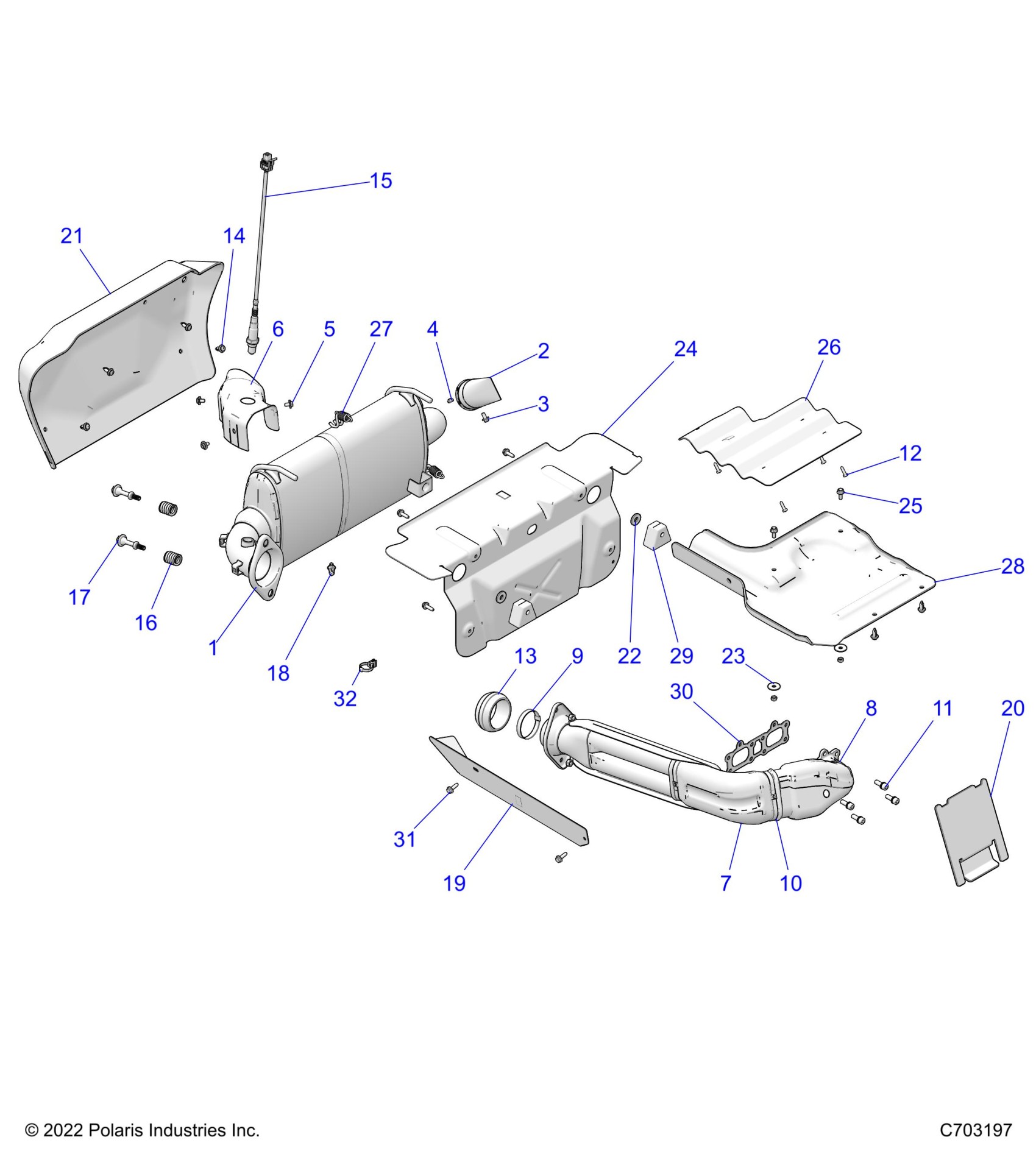

Polaris RZR XP 1000 SPORT (R05) - Z23NAE99AL/99BL/AR/BR ENGINE, EXHAUST SYSTEM - Z23NAE99A/99B (C703197) Diagram

#

Description
Price

1

ASM-SILENCER [INCL. 2-6]

1263066

$642.39

2

WELD-SPARK ARRESTOR

1262390

$47.99

3

SCREW-HXFL-M6X1.0X12 10.9 ZPC

7517257

$9.59

4

NUT-HEX-M6X1.0 8 SPC

7547120

$4.79

5

SCR-HHSEMS-M6X1.0X10 A286,LOCK

7520291

$7.19

6

SHIELD-SILENCER INLET

5264296

$27.99

7

ASM., HEADPIPE [INCL. 8-10]

1262599

$363.99

8

CLAMP-HEAT SHIELD,EXHAUST

7081156

$7.19

9

CLAMP, HEAT SHIELD,EXHAUST

7081579

$7.19

10

CLAMP-HEAT SHIELD,EXHAUST

7081915

$7.19

11

SCR-HXFL-M5X0.8X12 4.8 ZPC NYL

7518984

$7.99

12

SCR-10X 5/8 TX PN PLST-243

7518577

$2.39

13

GASKET, DOUBLE, SPHERICAL

3610236

$47.99

14

RIVET-TUFLOK,.315-.325X.787

7661855

$1.49

15

SENSOR-LAMBDA,LSF 4.2

4011853

$135.54

16

SPRING, SPHERICAL, EXHAUST

7044274

$14.39

17

STUD-SPHERICAL,EXHAUST

7520079

$13.59

18

CLIP FIR-TREE,DIA6-33MM

7081496

$4.79

19

SHIELD-FOIL,SIDE BOX,0.05"AL

5263028

$27.99

20

SHIELD, ACCESS PANEL

5814648

Unavailable

21

SHIELD-REAR BUMPER

5814362

$55.99

22

WASHER-.406X1.00X.125,FL

7555966

$2.63

23

WASHER-.281X1.00X.051

7556329

$1.49

24

SHIELD-REAR,STAINLESS

5268152

$43.99

25

SCREW-HXFL-M6X1.0X16 8.8 ZPB

7518591

$3.73

26

SHIELD-FOIL,ACCESS PANEL

5262942

$36.41

27

SPRING-EXHAUST

7041789

$7.99

28

SHIELD-BOX,FRONT

5814245

$43.99

29

MOUNT, ISOLATOR

5450115

$14.39

30

GASKET-EXHAUST SEAL

3610184

$48.56

31

SCR-M6X1.0X20,HXHD,FLG,TDFM,BK

7518529

$1.49

32

CLIP- EDGE, 1-3MM THICKNESS

7082427

$5.59
