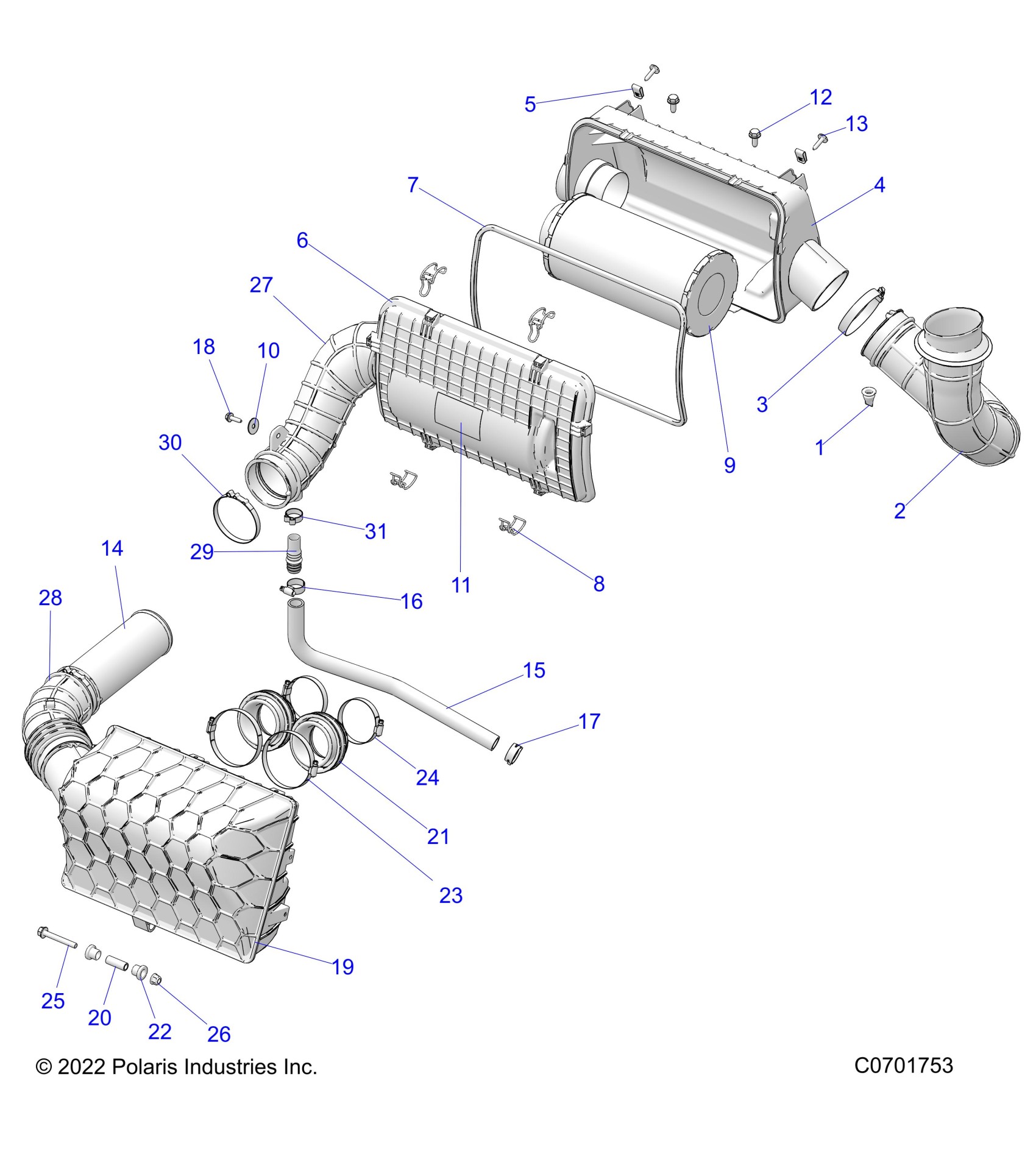

Polaris RZR XP 1000 SPORT (R05) - Z23NAE99AL/99BL/AR/BR ENGINE, AIR INTAKE SYSTEM - Z23NAE99A/99B (C701348) Diagram

#

Description
Price

1

PLUG-DRAIN

5414472

$5.59

2

HOSE, AIRBOX, IN

5414691

$103.99

3

CLAMP,HOSE,3.75,SS

7080907

$11.19

4

ASM., AIRBOX HOUSING [INCL. 5]

1240747

$87.99

5

NUT-M6-1.0, U-TYPE (2.5-3.8)

7547674

$1.49

6

ASM., AIRBOX COVER [INCL. 7,8]

1240748

$71.99

7

SEAL, AIRBOX

5813929

$27.99

8

CLIP, AIRBOX

7081872

$5.59

9

ASM-FILTER

1241084

$35.99

9

K-FILTER,AIR,ULTRA,PERF,RZN HD Air Filter Kit

2882234

$59.99

10

WASHER-.281X1.00X.051

7556329

$1.49

11

DECAL-CAUT.AIR BOX

7182652

Unavailable

12

SCR-TFHFL-M8X1.25X20 CHS ZOD

7518555

$2.39

13

SCR-TXTH-M6X1.0X25 ZFB

7519650

$3.99

14

ASM., INTAKE DUCT [INCL. 27-31]

1240770

$139.99

15

HOSE, VENT

5414671

$35.99

16

CLAMP, HOSE WORM GEAR 1.25

7080614

$7.19

17

SPRINGBAND-CLAMP 27/12,GREEN

7080841

$7.19

18

SCR-M6X1.0X20,HXHD,FLG,TDFM,BK

7518529

$1.49

19

INTAKE, ENGINE HOUSING

1240749

$147.99

20

SHAFT-COMPRESSION LMTR,34.4MM

5138987

$14.39

21

BOOT, THROTTLE BODY

5414570

$47.99

22

BUSHING-MOUNT

5414719

$2.39

23

CLAMP-WORM DRIVE,.44WX3.75 DIA(10)

7080812

$19.99

24

CLAMP-WORM GEAR,44-70MM,HOSE

7081623

$3.19

25

SCR-HXFL-M8X1.25X60 8.8 ZOD

7519298

$3.99

26

NUT- M8X1.25, FLG, NYLOC-OLIVE D

7547332

$3.99

27

HOSE-INTAKE,AIRBOX OUT

5414652

$45.59

28

HOSE-INTAKE,ENG HOUSING

5414670

$27.99

29

FITTING-3/4 DOUBLE BARB

7052580

$5.59

30

CLAMP-HOSE

7081902

$10.63

31

CLAMP-HOSE

7081903

$7.19
