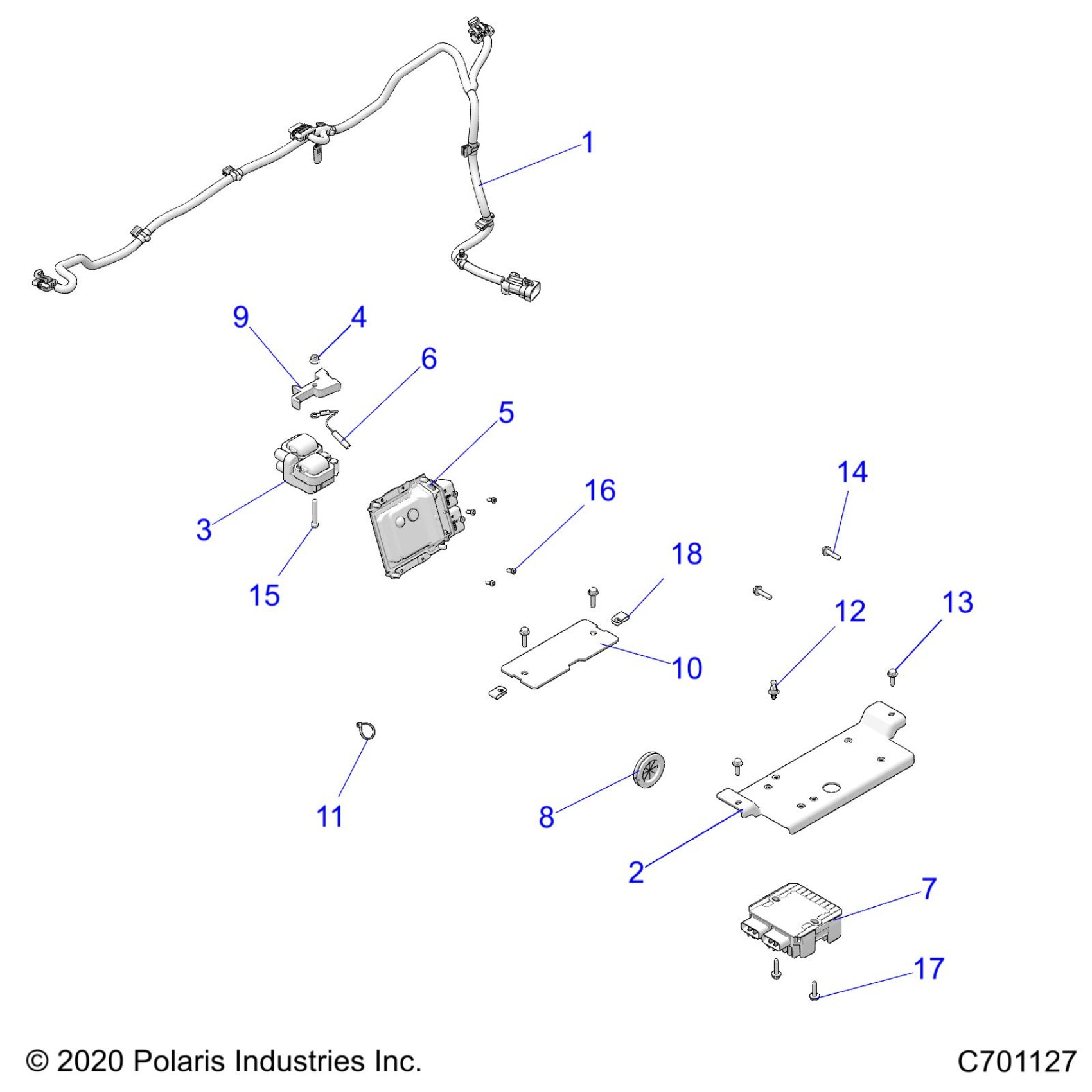

Polaris RZR XP 1000 SPORT (R05) - Z23NAE99AL/99BL/AR/BR ELECTRICAL, ECU, REGULATOR, ETC. - Z23NAE99A/99B (C701127) Diagram

HARNESS-BOX,RZR,72,CAMERA

2414085

$95.99

BRKT-MOUNT,REGULATOR,ECOAT

5264572-329

$35.99

COIL-EFI

4010425

Unavailable

NUT-M6 FLANGE,NYLOC

7547274

$1.49

ECM-HARD,ME17,2CYL,250K

4014125

$694.99

JUMPER, COIL GROUND

4014422

$27.99

REGULATOR-3PH,50A,SERIES,HISPD

4016868

$123.99

GROMMET-ELEC,CAB,SLIT

5415049

$3.99

SPACER-COIL MOUNT

5436577

$3.99

PANEL-CLOSEOFF,FUSE CTR LOC

5454317

$8.79

CABLE-TIE,DIA12-50MM,WTHR-RES.

7080138

$2.41

CLIP FIR-TREE,DIA6-33MM

7081496

$4.79

SCR-M6X1.0X20,HXHD,FLG,TDFM,BK

7518529

$1.49

SCR-HXFL-M6X1.0X25 8.8 RIE

7518533

$1.49

SCR-M6X1.0X40,HX/SOC/CP-B

7518780

$3.99

SCR-#10X1/2-HI/LO-PN-T25, TRX-M

7519091

$3.19

SCR-TFHFL-M6X1.0X25,ZOD

7519342

$1.86

NUT-M6-1.0, U-TYPE (2.5-3.8)

7547674

$1.49
