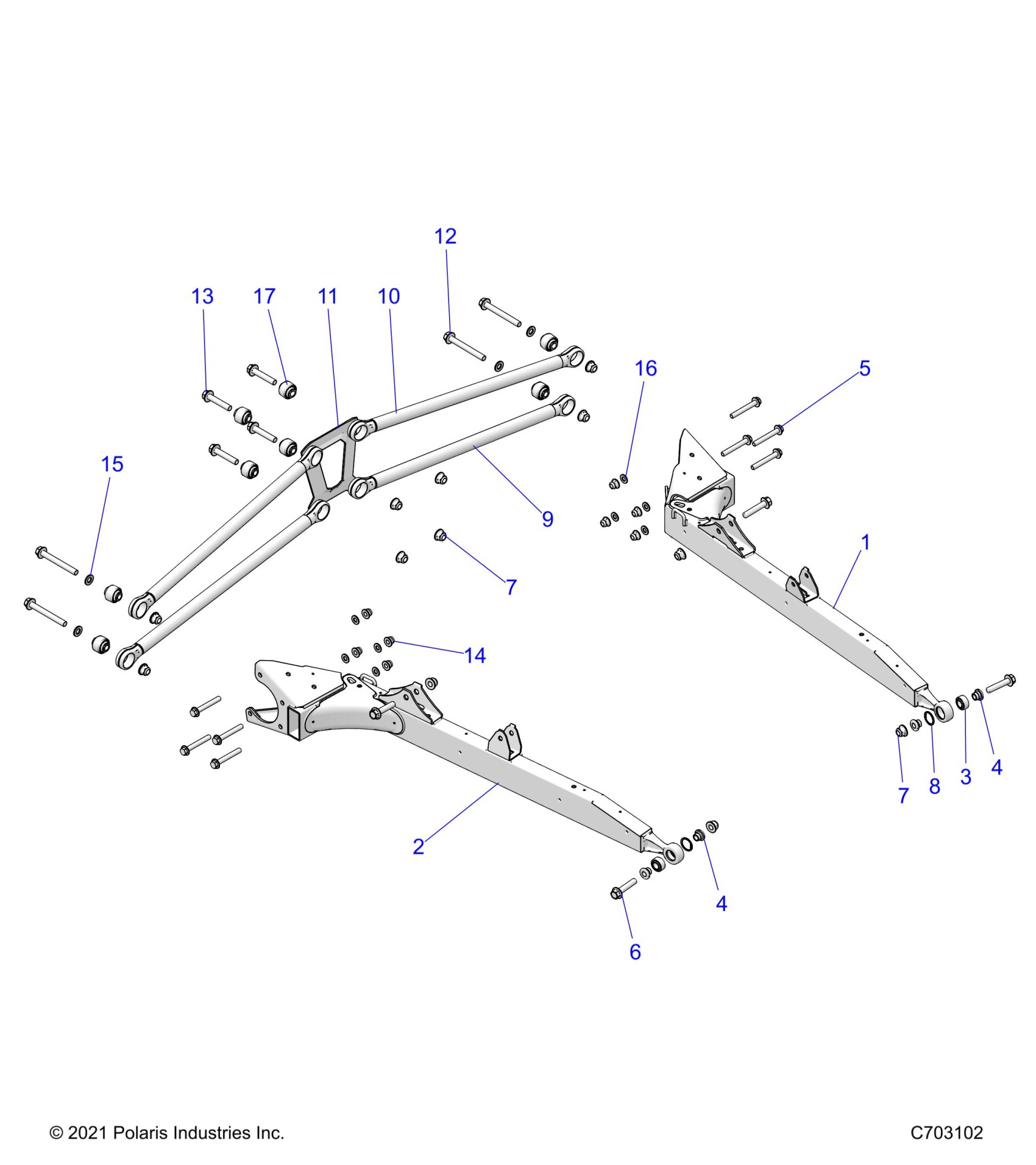

Polaris RZR XP 1000 SPORT (R02) - Z25NEE99A4/B4/A5/B5 SUSPENSION, REAR CONTROL ARMS - Z25NEE99A4/B4/A5/B5 (C703102) Diagram

ASM-TRL ARM,LH,BLK [INCLUDES 3 & 8]

1544718-458

$417.29

ASM-TRL ARM,RH,BLK [INCLUDES 3 & 8]

1544719-458

$417.29

BEARING, SPHERICAL

3514689

$39.99

BUSHING, REDUCER

5336751

$6.39

BUSHING, REDUCER

5336751

$6.39

SCR-HXFL-M10X1.25X75 10.9 ZOD

7519286

$7.19

SCR-HXFL-M12X1.5X60 10.9 ZOD

7519138

$9.59

NUT-M12X1.5, FLG, NYLOC-OLIVE D

7547334

$4.79

NUT-M12X1.5, FLG, NYLOC-OLIVE D

7547334

$4.79

RING,RETAINING(10)

7710437

$3.19

ASM-RADIUS ROD,BTM,BLK [INCL. QTY 4 of 17]

1544931-458

$179.99

ASM-RADIUS ROD,TOP,BLK [INCL. QTY 4 of 17]

1544298-458

$151.99

PLATE-REAR,BOLT BRACE,M.BLK

5262630-458

$39.99

SCR-HXFL-M12X1.5X105 10.9 ZOD

7520479

$7.19

SCR-HXFL-M12X1.5X65 10.9 ZOD

7520477

$3.19

NUT-HXFL M10X1.25 8 ZTB NYL

7547333

$1.59

WSHR-13.0X24.0X2.5 ZPC

7556287

$7.19

WASHER-3/8 FW SAE STL THRU-HRD

7556153

$1.99

BEARING-SPHERICAL

7082253

$15.99
