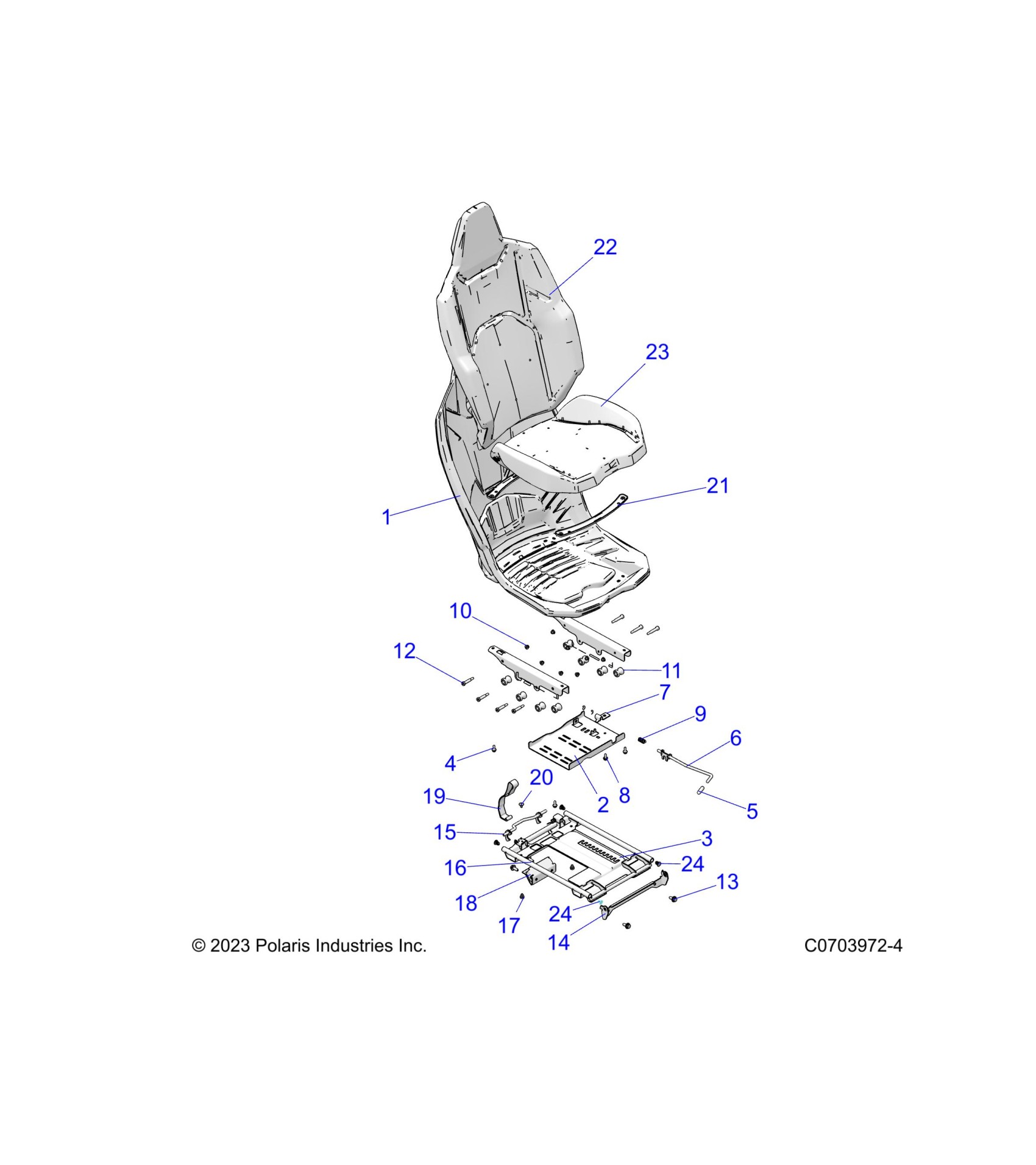

Polaris RZR XP 1000 SPORT (R02) - Z25NEE99A4/B4/A5/B5 BODY, SEAT ASM. AND SLIDER - Z25NEE99A4/B4/A5/B5 (C0703972-1) Diagram

#

Description
Price

1

SEAT-SHELL

5459426

$114.39

2

ASM-SEAT BASE-SLIDER

2637765

$63.99

3

ASM-SEAT BASE-STATIC

2638462

Unavailable

4

SCREW-HXFL-M6X1.0X16 8.8 ZPB

7518591

$3.73

5

CAP-LEVER

5457972

$3.73

6

WELD-SEAT SLIDER ROD,ECOAT

1025338-329

$9.59

7

BRKT-P-CLIP,SEAT SLIDER,ECOAT

5268611-329

$5.60

8

SCR-M6X1X16 TR/TX,TRI-LOB

7521354

$4.66

9

SPRING-SEAT ADJUSTER

7045595

$5.60

10

NUT-HXFL-M6X1.0 8 ZB3 NYL

7548043

$4.66

11

ROLLER-SEAT SLIDER

5456629

$5.60

12

SCR-SHS-M6X1.0-M8X30

7521353

$5.60

13

SCR-TFHFL-M8X1.25X20 CHS ZOD

7518555

$2.39

14

WELD-FRONT MOUNT,SLIDER,ECOAT

1027797-329

$31.99

15

WELD-HOOK,REAR,ECOAT

1026909-329

$31.99

16

WELD-SEAT BASE,ECOAT

1028112-329

$95.99

17

BUMPER-RUBBER

5417657

$2.79

18

WELD-REAR LATCH,ECOAT

1027799-329

$27.99

19

STRAP-SEAT

2691935

$23.99

20

RIVET 3/16(.063-.250)ST-ST-LF-B

7621472

$1.49

21

ASM-SEAT SUPPORT

1027788

$12.79

22

BUN-SEAT,BACK

5814977

$35.99

22

ASM-CVR-SEATBACK,BLK/TTM,BK ST [COVER ONLY]

2693355

$123.99

23

BUN-SEAT,BOTTOM

5814978

$35.99

23

ASM-CVR-SEAT BTM,BLK/TTM,BK ST [COVER ONLY]

2693356

$107.99

24

PLUG-PLASTIC

5457971

$3.99

24

PLUG-PLASTIC

5457971

$3.99
