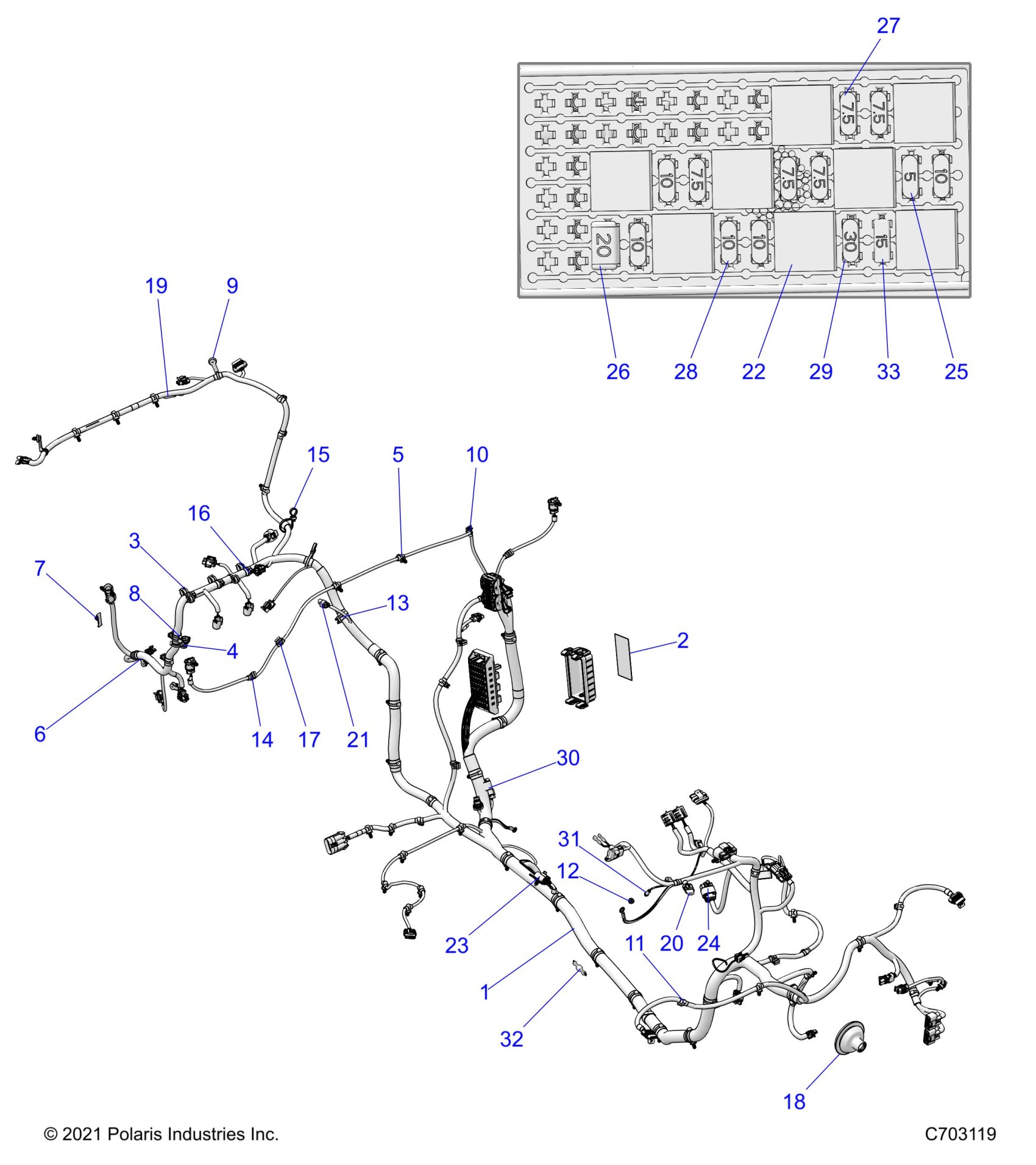

Polaris RZR XP 1000 SPORT (R02) - Z24NEE99A2/B2 ELECTRICAL, WIRE HARNESS - Z24NEE99A2/B2 (C703119) Diagram

#

Description
Price

1

HARN-CHASSIS,RZR,64 R.C [INCL. ALL]

2417043

$1,849.99

2

LABEL-FUSE BOX, PREM

7192425

Unavailable

3

CLIP-XMAS,OMEGA, CABLE/11-15MM

7082750

$3.17

4

CLIP-OMEGA,CABLE,4-10MM DIA

7082744

$2.38

5

CLIP FIR-TREE,DIA6-33MM

7081496

Unavailable

6

CLIP OFFSET 12.5MM FIRTREE(BK)

7082458

$4.74

7

CLIP-XMAS,6.35MM HOLE,TAPE-ON

7082411

$3.17

8

CLIP-OMEGA,CABLE/10-14MM DIA

7082407

$3.97

9

CLIP-OFFSET,FT6 FIR TREE

7082405

$3.97

10

CLIP-EDGE, 1-3mm THICKNESS

7082403

$4.76

11

CLIP-EDGE, 1-3mm THICKNESS

7082402

$7.14

12

CLIP - ROUTING, DIN BOX

7082020

$5.56

13

CLIP-EDGE,DIA5-50MM,OUT-SER

7081824

$12.94

14

CLIP-EDGE,1-3MM,6-45MM,SERT.

7081808

$5.65

15

CABLE-TIE,7-46MM,DUAL-LOOP

7081033

$4.03

16

CABLE-TIE,25-76MM,WEATH.-RES.

7080492

$2.41

17

CLIP, EDGE, HARNESS

7081890

$10.32

18

GROMMET - 65 MM, BLK

5813954

$8.99

19

CAP - VINYL, 125X375, BLACK

5438230

$5.65

20

COVER-TYCO, TP

4018140

$8.89

21

CAP EVAP CONNECTOR

4018066

$4.03

22

RELAY-SPST,12V,20A,EPXY,HFA

4016819

$36.41

23

COVER-FUSEHOLDER

4012260

$10.51

24

COVER-DIAGNOSTIC,W/CLIP

4012170

$8.89

25

FUSE-5A,MINI BLADE

4011652

$11.32

26

BREAKER-CIRCUIT,20 AMP

4011372

$44.51

27

FUSE - 7.5, MINI BLADE (BROWN)

4011068

$11.32

28

FUSE-IGNITION,10 AMP

2434016

$5.65

29

FUSE-MAIN,30 AMP

2434015

$8.87

30

DIODE-2 AMP

2415626

$15.37

31

LED - PANEL MNT, 12V, BLUE

2413217

$52.60

32

DIODE - 6 AMP, 1/4, 3/16 TERM

2411035

$56.65

33

FUSE-MINI BLADE,15 AMP

2410280

$8.08
