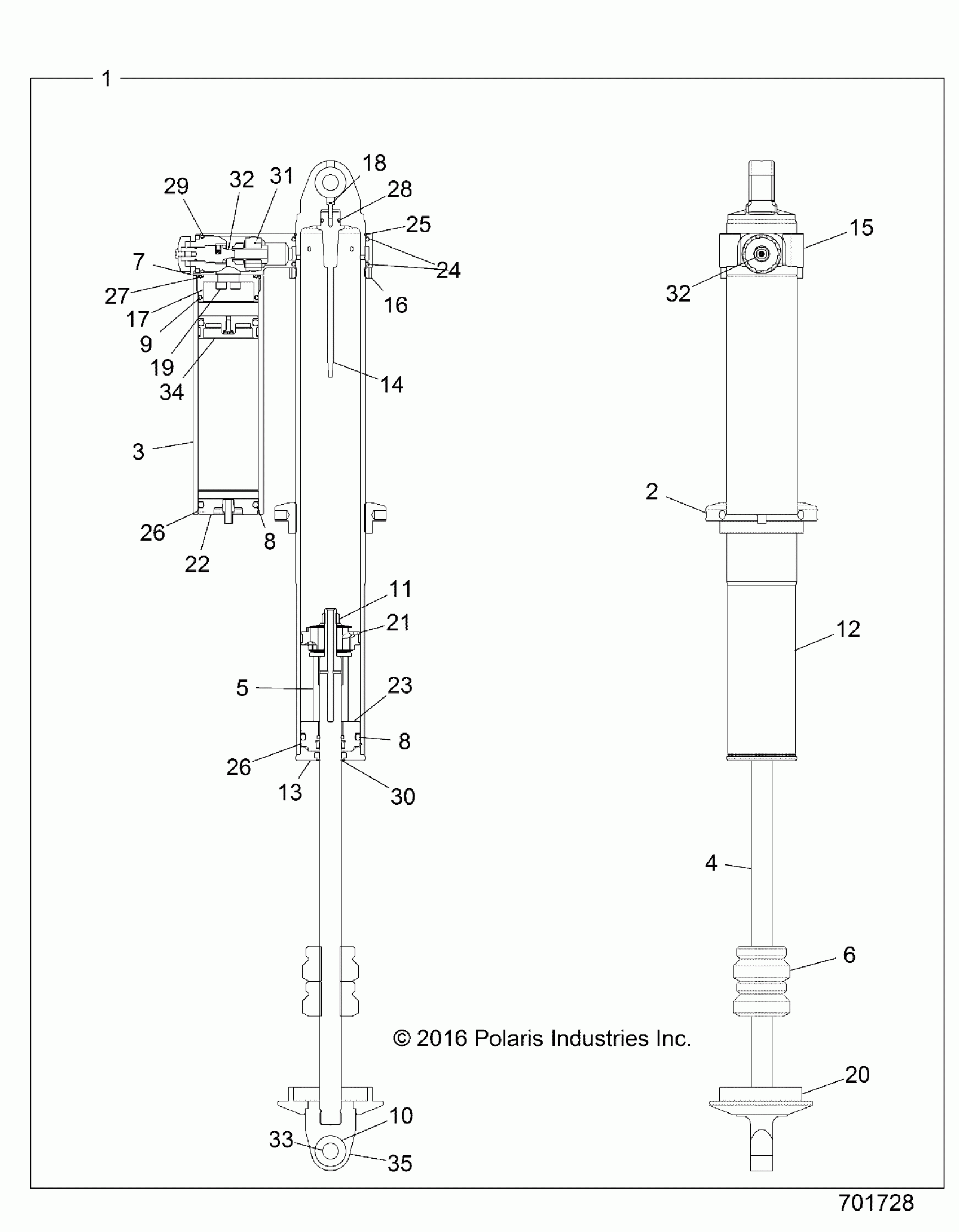

Polaris RZR XP 1000 (R17) - Z17VDE99AM/AP/AW/LW/K99AK/M99AB/R99AZ SUSPENSION, REAR SHOCK INTERNALS - Z17VD_99AB/AK/AM/AW/LW/AZ/AP (701728) Diagram

#

Description
Price

1

SHOCK, REAR [INCL ALL]

7044464

$899.99

2

2.5IN SPRING NUT (CLEAR)

1800836

$109.99

3

2.5IN 8.5L PB RES CAN WR (HARD CLEAR)

1800837

$209.99

4

3/4in SS CHROME NEEDLE SHAFT 18.295L

1800620

$285.62

5

SPACER 2.287L

1800610

$74.99

6

1.25 BUMP STOP LG

1800201

$80.74

7

O-RING 2-033

1800613

$11.32

8

O-RING 2-327

1800508

$5.65

8

O-RING 2-327

1800508

$5.65

9

O-RING 2-225

1800500

$2.02

10

RING- RETAIN (SNAP)

1800482

$13.54

11

42567 NY LOCK NUT

1800638

$4.76

12

BODY, MONOTUBE 2.5 REAR W NEEDLE HARD CLEAR 21.070L

1800838

$364.99

13

WIPER CAP 2.5 X 0.75 PRESS FIT

1800839

$59.99

14

NEEDLE, 1PC PRESS IN

1800840

$69.99

15

BRIDGE, 2.5 WER ADJUSTER (CLEAR)

1800841

$319.99

16

2.5IN CROSSOVER RING/ JAM NUT

1800842

$44.99

17

2.5 RES MOUNT

1800488

$106.49

18

#8-32 X 0.5 LOW HEAD SCREW

1800843

$4.76

19

SCREW, SOCK CAP 43834 X .5"

1800754

$3.17

20

SPRING CLIP

1501007

$84.99

21

PISTON (NO BLEED, W/ VALVING)

1800659

$124.43

22

ASM. END CAP, 2.5 SCHRAEDER

1800844

$154.90

23

ASM. 2.5 SEAL HEAD, 0.75 SHAFT, PRESS IN

1800845

$134.99

24

O-RING 2-230

1800497

$5.65

25

2.48 X 0.0625 WIRE RING

1800846

$8.08

26

Retaining Ring 2.5

1800847

$23.81

26

Retaining Ring 2.5

1800847

$23.81

27

O-RING, 2-134

1800502

$2.02

28

O-RING 2-112

1800095

$0.82

29

O-RING 2-122

1800503

$1.60

30

WIPER 2.5IN SH .75SHAFT

1800506

$54.99

31

VALVE, CHECK ASM

1800848

$74.99

32

ASM. SS RETENTION NUT

1800849

Unavailable

32

ASM. SS RETENTION NUT

1800849

Unavailable

33

BEARING, SPHR COM9T-500, 1.093 UTV

1800592

$74.99

34

RES, PISTON 2.5IN ASM

1800752

$174.27

35

9/16 HEIM SHAFTLOOP (Clear)

1800555

$294.99
