Description

Price

1

SHOCK, FRONT LH [INCL ALL]

7044553

$710.70

1

SHOCK, FRONT RH [INCL ALL]

7044554

$710.70

2

SHAFT, 0.625 CHROME NEEDLE 12.84L

1800662

$114.99

3

DROOP SPACER W NEG SPRING

1800858

$44.99

4

RING, SNAP 1.750ID

1800159

$5.59

5

BALL, DETENT 3/16"

1800127

$6.39

6

SPRING-COMP .025X.3, 40.5#

1800128

$10.39

7

RING, SNAP 1.0ID

1800041

$7.27

7

RING, SNAP 1.0ID

1800041

$7.27

8

O-RING BODY LOOP

1800030

$2.02

8

O-RING BODY LOOP

1800030

$2.02

9

WIPER

1800034

$31.99

10

NUT, CRIMP (CASTLE) 42567

1800164

$9.59

11

BUMP STOP, MCU, 2.0Dia x 1.75L (ISC 140174-N)

1800859

$77.44

12

BODY, MONOTUBE CO, 2 X 14.285L HARD CLEAR

1800860

$289.99

13

NEEDLE,1PC, PRESS IN

1800861

$59.99

14

CLICKER KNOB (BLACK)

1800418

$89.03

15

IFP PISTON ASM 1.75 W BLEED

1800739

$44.99

16

ASM. CLICKER STUD

1800758

$29.99

17

ASM. CLICKER PISTON

1800757

$79.99

18

SCREW, HEAD 11963 BTN

1800357

$3.19

19

SCREW,SET #8-32

1800700

Unavailable

20

Retaining Ring

1800862

$6.39

21

RETAINING RING WIRE 0.0625 X 1.750ID

1800795

$7.27

22

O-RING 2-226

1800863

$4.79

23

O-RING 2-324

1800184

$5.65

24

SPRING RETAINER

5633421

$69.49

25

O-RING 2-108

1800864

$4.79

26

SPRING NUT 2in ACME (CLEAR)

1800865

$39.99

27

#8-32 X 0.5 LOW HEAD SCREW

1800843

$4.79

28

EXT SHAFTLOOP .625THD 1IN BEARING

1800600

$195.99

29

BRIDGE 2 WER ADJUSTER (CLEAR)

1800866

$105.59

30

CAP, WIPER 2 PRESS IN (CLEAR ANODIZE)

1800794

$49.99

31

SPRING, CENTURY# 11980 DIRT

1800867

$31.99

32

JAMB NUT, 2.0IN ACME

1800868

$43.99

33

2 PC PISTON ASM INTERLOCKING (with valving)

1800516

$119.99

34

ASM. SEAL HEAD, 2.0, PRESS-IN, STD SEALS

1800869

$47.99

35

ASM. END CAP 2in (CLEAR)

1800755

$49.99

36

SPHERICAL BEARING 1.0OD X 0.5 ID W TEFLON

1800616

$63.99

37

BODY, RESVR, 2.0", 5.0L

1800392

$107.99

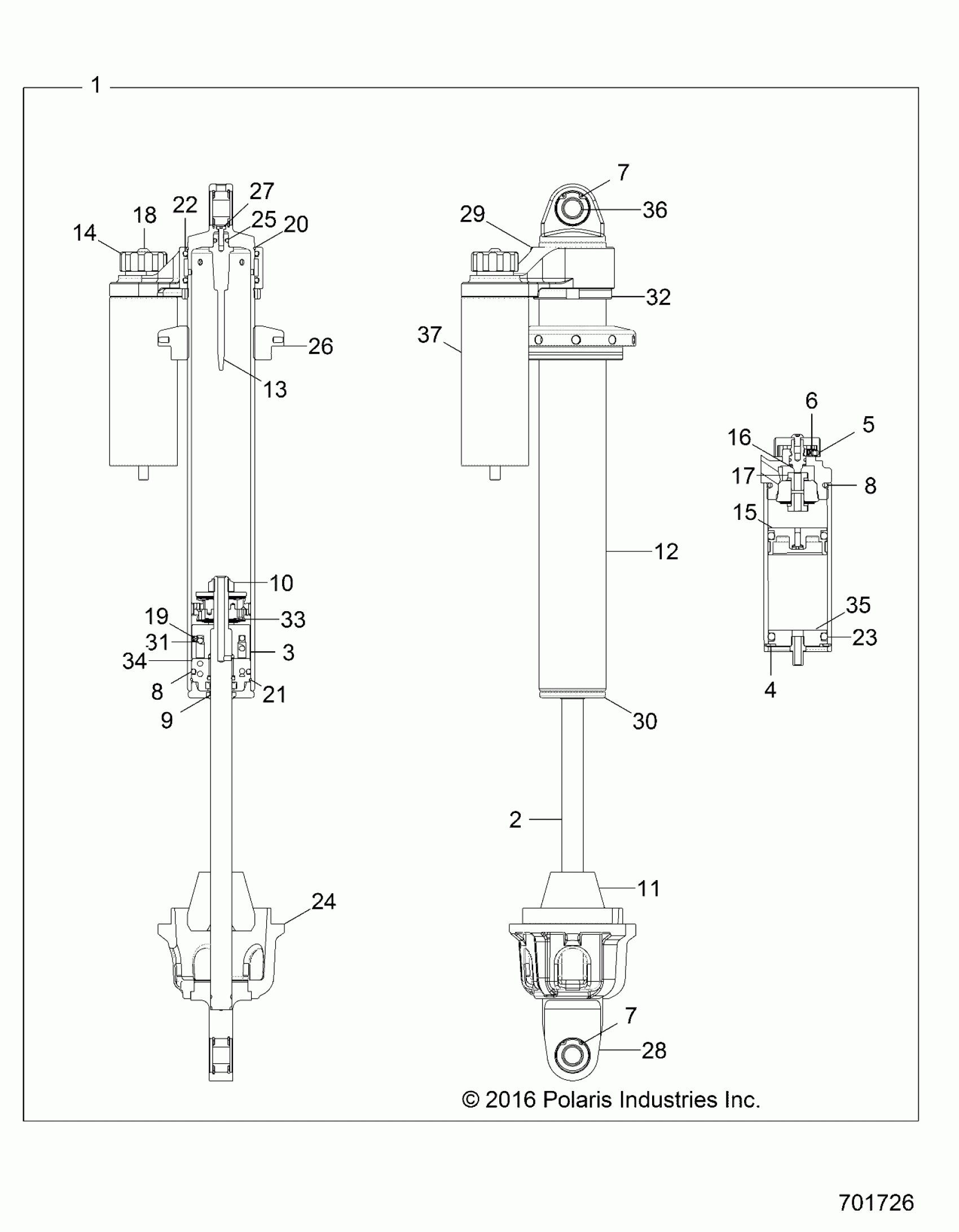

Polaris RZR XP 1000 (R17) - Z17VDE99AM/AP/AW/LW/K99AK/M99AB/R99AZ SUSPENSION, FRONT SHOCK INTERNALS - Z17VD_99AB/AK/AM/AW/LW/AZ/AP (701726) Diagram

SHOCK, FRONT LH [INCL ALL]

SHOCK, FRONT RH [INCL ALL]

SHAFT, 0.625 CHROME NEEDLE 12.84L

DROOP SPACER W NEG SPRING

RING, SNAP 1.750ID

BALL, DETENT 3/16"

SPRING-COMP .025X.3, 40.5#

RING, SNAP 1.0ID

RING, SNAP 1.0ID

O-RING BODY LOOP

O-RING BODY LOOP

WIPER

NUT, CRIMP (CASTLE) 42567

BUMP STOP, MCU, 2.0Dia x 1.75L (ISC 140174-N)

BODY, MONOTUBE CO, 2 X 14.285L HARD CLEAR

NEEDLE,1PC, PRESS IN

CLICKER KNOB (BLACK)

IFP PISTON ASM 1.75 W BLEED

ASM. CLICKER STUD

ASM. CLICKER PISTON

SCREW, HEAD 11963 BTN

SCREW,SET #8-32

Retaining Ring

RETAINING RING WIRE 0.0625 X 1.750ID

O-RING 2-226

O-RING 2-324

SPRING RETAINER

O-RING 2-108

SPRING NUT 2in ACME (CLEAR)

#8-32 X 0.5 LOW HEAD SCREW

EXT SHAFTLOOP .625THD 1IN BEARING

BRIDGE 2 WER ADJUSTER (CLEAR)

CAP, WIPER 2 PRESS IN (CLEAR ANODIZE)

SPRING, CENTURY# 11980 DIRT

JAMB NUT, 2.0IN ACME

2 PC PISTON ASM INTERLOCKING (with valving)

ASM. SEAL HEAD, 2.0, PRESS-IN, STD SEALS

ASM. END CAP 2in (CLEAR)

SPHERICAL BEARING 1.0OD X 0.5 ID W TEFLON

BODY, RESVR, 2.0", 5.0L
