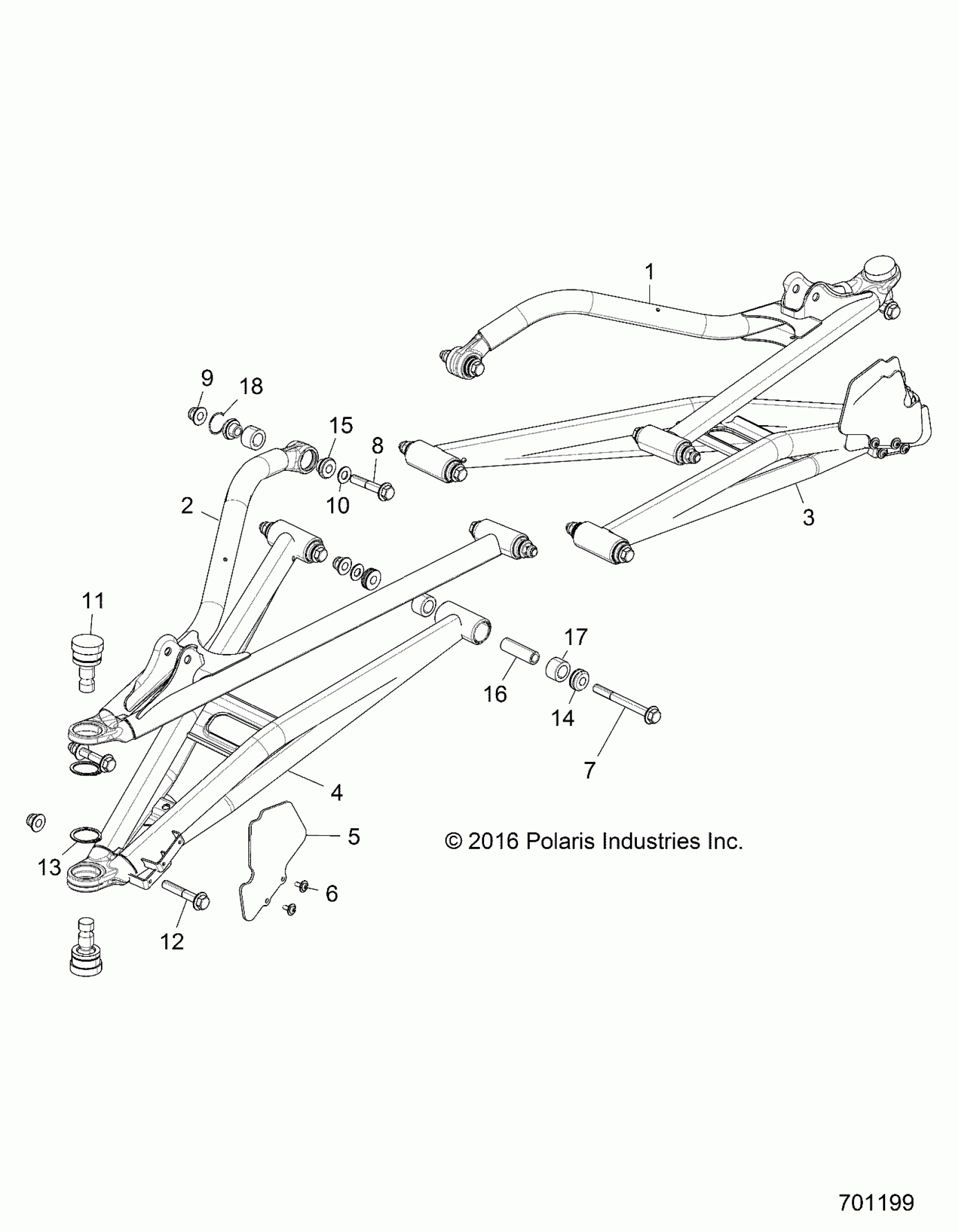

Polaris RZR XP 1000 (R17) - Z17VDE99AM/AP/AW/LW/K99AK/M99AB/R99AZ SUSPENSION, FRONT CONTROL ARMS - Z17VD_99AB/AK/AM/AW/LW/AZ/AP (701199) Diagram

WELD-CTRL ARM,UPR,FR,LH,64,RED [AM]

1021727-293

$309.83

WELD-CTRL ARM,UPR,FR,LH,64,L/S [AW][LW]

1021727-630

$309.83

WELD-CTRL ARM,UPR,FR,LH,64,VBL [AB][AK]

1021727-689

$309.83

WELD-CTRL ARM,UPR,FR,LH,64,BLK [AZ]

1021727-458

$309.83

WELD-CTRL ARM,UPR,FR,LH,64,SLV [AP]

1021727-385

Unavailable

WELD-CTRL ARM,UPR,FR,RH,64,RED [AM]

1021728-293

Unavailable

WELD-CTRL ARM,UPR,FR,RH,64,L/S [AW][LW]

1021728-630

$309.83

WELD-CTRL ARM,UPR,FR,RH,64,VBL [AB][AK]

1021728-689

$309.83

WELD-CTRL ARM,UPR,FR,RH,64,BLK [AZ]

1021728-458

$309.83

WELD-CTRL ARM,UPR,FR,RH,64,SLV [AP]

1021728-385

Unavailable

WELD-CTRL ARM,LWR,FR,LH,64,RED [AM]

1021480-293

$154.90

WELD-CTRL ARM,LWR,FR,LH,64,L/S [AW][LW]

1021480-630

$154.90

WELD-CTRLARM,HC LWR,FR,LH,64,B [AB]

1021482-689

$169.99

WELD-CTRL ARM,LWR,FR,LH,64,VLB [AK]

1021480-689

$154.90

WELD-CTRLARM,HC LWR,FR,LH,64,B [AZ]

1021482-458

$154.90

WELD-CTRL ARM,LWR,FR,LH,64,SLV [AP]

1021480-385

$154.90

WELD-CTRL ARM,LWR,FR,RH,64,RED [AM]

1021481-293

$154.90

WELD-CTRL ARM,LWR,FR,RH,64,L/S [AW][LW]

1021481-630

$154.90

WELD-CTRLARM,HC,LWR,FR,RH,64,B [AB]

1021483-689

$169.99

WELD-CTRL ARM,LWR,FR,RH,64,VLB [AK]

1021481-689

$154.90

WELD-CTRLARM,HC,LWR,FR,RH,64,B [AZ]

1021483-458

$154.90

WELD-CTRL ARM,LWR,FR,RH,64,SLV [AP]

1021481-385

$154.90

SHIELD, CV, FRONT, BLACK

5438641-070

$3.22

Screw

7512084

$1.19

SCREW

7519043

$9.52

SCREW

7519285

$2.38

NUT-HXFL M10X1.25 8 ZTB NYL

7547333

$1.59

WASHER

7556153

$1.98

BALL, JOINT, HARDENED

7081992

$48.56

SCREW

7519306

$5.56

RING, RETAINING

7710716

$8.08

ASM-PIVOT CAP,SEALED,M10

1543611

$5.65

ASM-PIVOT CAP,SEALED,SLIM,M10

1543735

$13.75

SHAFT-PIVOT,SHORT,M10

5139966

$5.65

BUSHING-STANDARD,SUSP,M10

5452233

$2.38

28MM SPIRAL RING,STEEL

7710845

$3.63
