Partiron

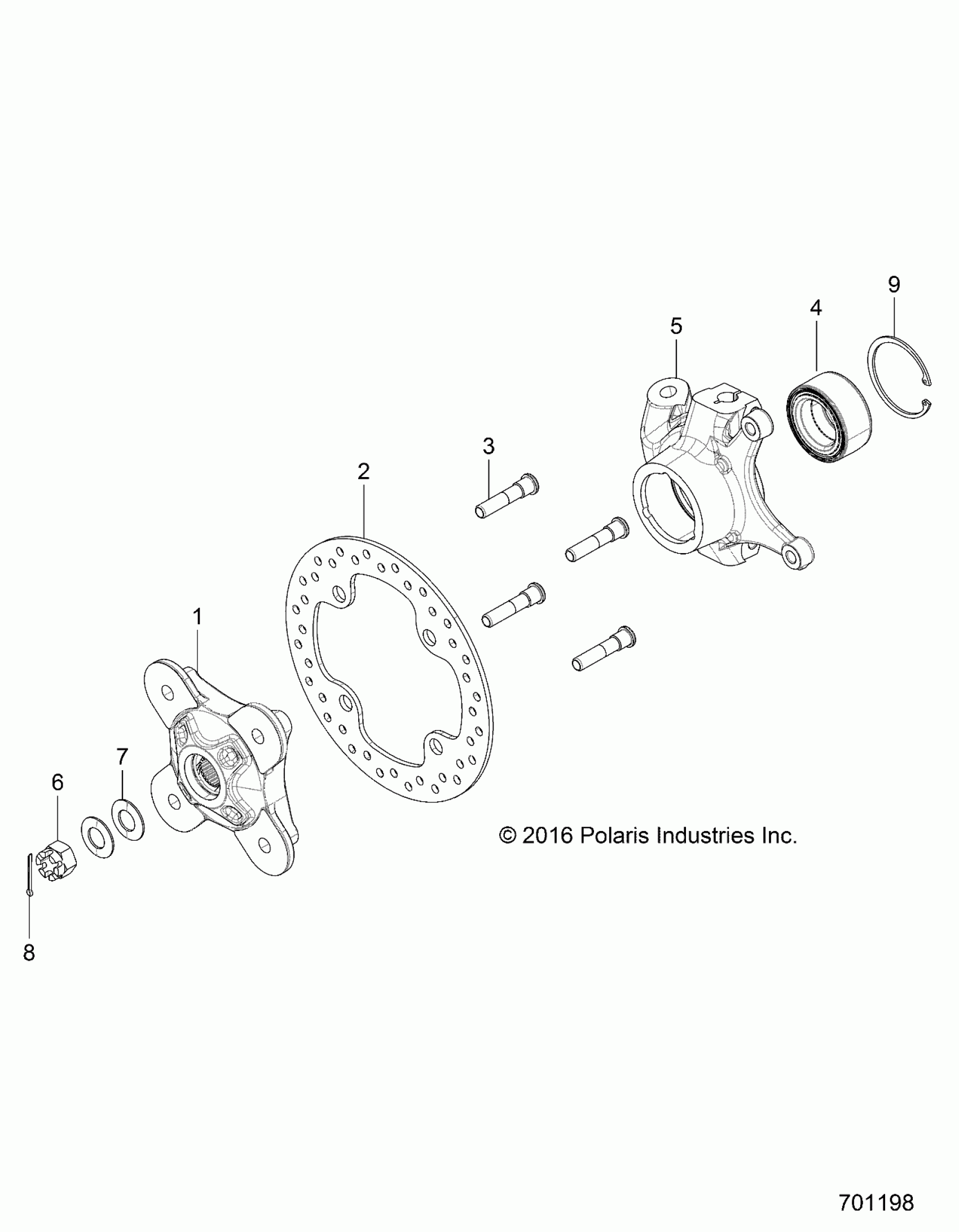

Polaris RZR XP 1000 (R17) - Z17VDE99AM/AP/AW/LW/K99AK/M99AB/R99AZ SUSPENSION, FRONT CARRIER- Z17VD_99AB/AK/AM/AW/LW/AZ/AP (701198) Diagram

#

Description
Price

1

HUB-WHEEL(MACH),BLK

5139265-067

$91.99

2

DISC-BRAKE

5257196

$63.99

3

STUD-WHEEL,M12-1.5

7519792

$5.59

4

BEARING-BALL,SEALED,44X72X33.1

3514822

Unavailable

4

BEARING-WHEEL,HD,44X72X33.1MM [OPTIONAL]

3515090

$63.99

5

KNUCKLE-FRONT,LH(MACH)

5139304

Unavailable

5

KNUCKLE-FRONT,RH(MACH)

5139305

Unavailable

6

NUT-M18X1.5,CASTLE,ZINC/YELLOW

7547337

$1.99

7

WASHER-CONE.755X1.5X.072-.107P

7555796

$7.99

8

PIN-COTTER 1/8X1 1/2-Y

7661404

$4.79

9

RING-RETAINING,2.835,INTERNAL

7710780

$9.59
