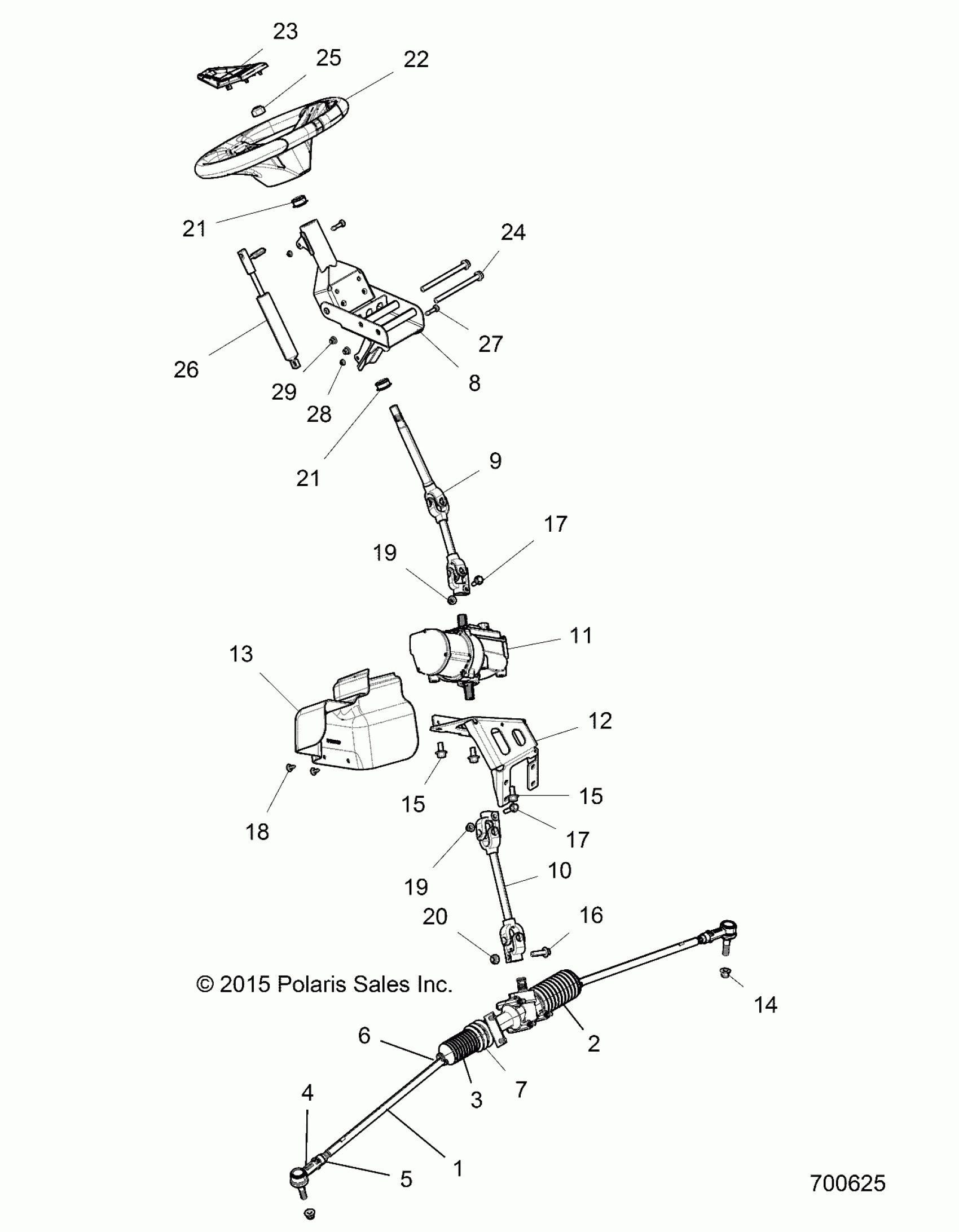

Polaris RZR XP 1000 (R17) - Z17VDE99AM/AP/AW/LW/K99AK/M99AB/R99AZ STEERING, POWER STEERING ASM. - Z17VD_99AB/AK/AM/AW/LW/AZ/AP (701192) Diagram

#

Description
Price

1

ASM., GEAR BOX, STEERING [INCL. 2-7]

1824469

$664.99

1

ASM-GEAR BOX,STEERING [INCL. 2-7][AZ]

1824500

$709.99

2

D.S. BELLOWS

5412012

$66.65

3

P.S. BELLOWS

5412013

$62.21

4

TIE ROD, OUTER

7061234

$48.56

5

NUT, JAM

2205058

$24.27

6

CLAMP, SMALL

7082150

$6.46

7

CLAMP, LARGE

7080979

$5.56

8

ASM-TILT,STEERING,RVTD,M10,BLK

1824420-458

$189.99

9

SHAFT, STEERING, UPPER

1823891

$174.27

10

SHAFT, STEERING LOWER, EPS

1824012

$161.49

11

ASM-POWER STEERING,RZR,2.5T [AZ]

2413631

$2,199.99

11

ASM-POWER STEERING,RZR,2.0T

2413483

$2,299.99

12

MOUNT, EPS, BLACK

5257531-329

Unavailable

13

NUT-6MM X 1 NYLOK-Z

7546703

$1.19

14

NUT

7547334

$4.76

15

BOLT

7518558

$3.97

15

BOLT

7518558

$3.97

16

SCREW

7518644

$4.76

17

SCREW

7519052

$1.59

17

SCREW

7519052

$1.59

18

NUT-HXFL M10X1.25 8 ZTB NYL

7547333

$1.59

19

NUT- M8X1.25, FLG, NYLOC-OLIVE D

7547332

$3.97

19

NUT- M8X1.25, FLG, NYLOC-OLIVE D

7547332

$3.97

20

NUT

7547385

$1.19

21

BUSHING-STEERING

7556675

$15.19

21

BUSHING-STEERING

7556675

$15.19

22

WHEEL, STEERING

1824014

$179.99

23

CAP, STEERING WHEEL, WHT LTNG [AZ][AP]

5450255-599

$24.27

23

CAP, STEERING WHEEL, I. RED [AM]

5450255-293

$28.32

23

CAP, STEERING WHEEL, LIME SQ [AW][LW][AK]

5450255-630

$39.98

23

CAP-STEERING WHEEL,VLCTY BLUE [AB]

5450255-689

$20.22

24

BOLT

7518665

$13.49

25

NUT

7547506

$4.99

26

ASM-SHOCK,OIL LOCKING,MACH

7044098

$113.99

27

SCR-SH-M6X1.0X11 12.9 ZB SHB

7519980

$7.14

28

NUT-6MM X 1 NYLOK-Z

7546703

$1.19

29

NUT-HXFL M10X1.25 8 ZTB NYL

7547333

$1.59
