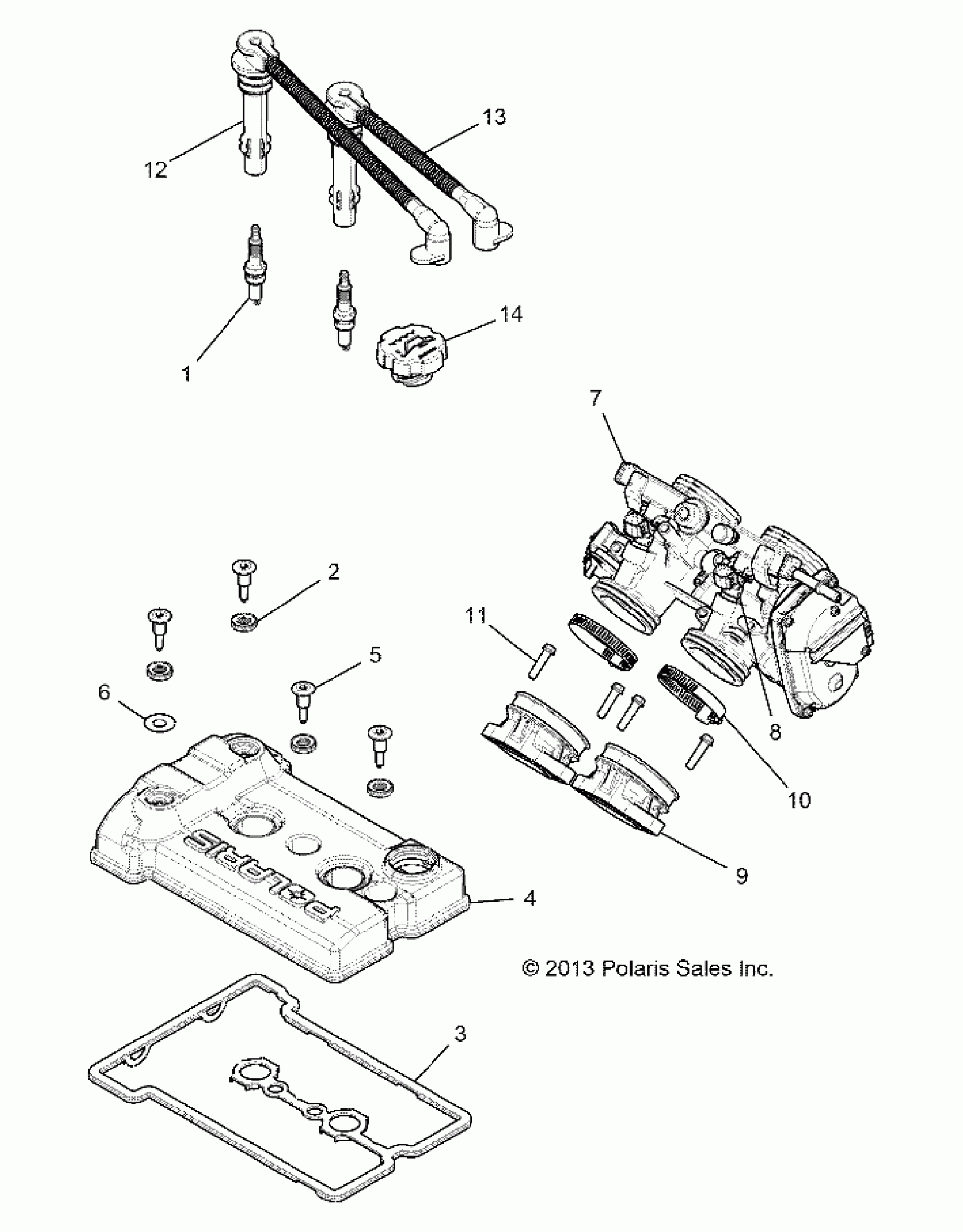

Polaris RZR XP 1000 (R17) - Z17VDE99AM/AP/AW/LW/K99AK/M99AB/R99AZ ENGINE, THROTTLE BODY AND VALVE COVER - Z17VD_99AB/AK/AM/AW/LW/AZ/AP (49RGRTHROTTLEBODY14RZR1000) Diagram

#

Description
Price

1

SPARK PLUG-10 MM

3022662

$10.46

2

ISOLATOR-VALVE COVER

5413806

$7.27

3

SEAL-VALVE COVER,2CY,DOHC

5415011

$51.99

4

COVER, VALVE, CAST

5633264

$111.10

5

BOLT, SHOULDRER

7519165

$13.59

6

WASHER-GROUNDING

7556750

$3.99

7

SENSOR-TMAP DSS3-TF

2411528

$93.08

7

ASM., THROTTLE BODY, DUAL [INCL. CLIP,8]

1204713

$898.79

7

CLIP, INJECTOR

3131717

$11.19

7

FUEL RAIL

3131754

Unavailable

8

INJ., EV 14 COMP, EXT

2521387

$115.99

9

ASM., THROTTLE BODY ADAPTER

1205302

$49.99

10

CLAMP, NARROWBAND

7080413

$3.19

11

SCREW

7519297

$3.99

12

WIRE, SPARK PLUG, MAG

4014295

Unavailable

13

WIRE, SPARK PLUG, PTO

4014296

Unavailable

14

ASM-OIL FILL CAP [INCL. O-RING]

1205012

$35.99

14

O-RING-FILL CAP

5414362

$3.59
