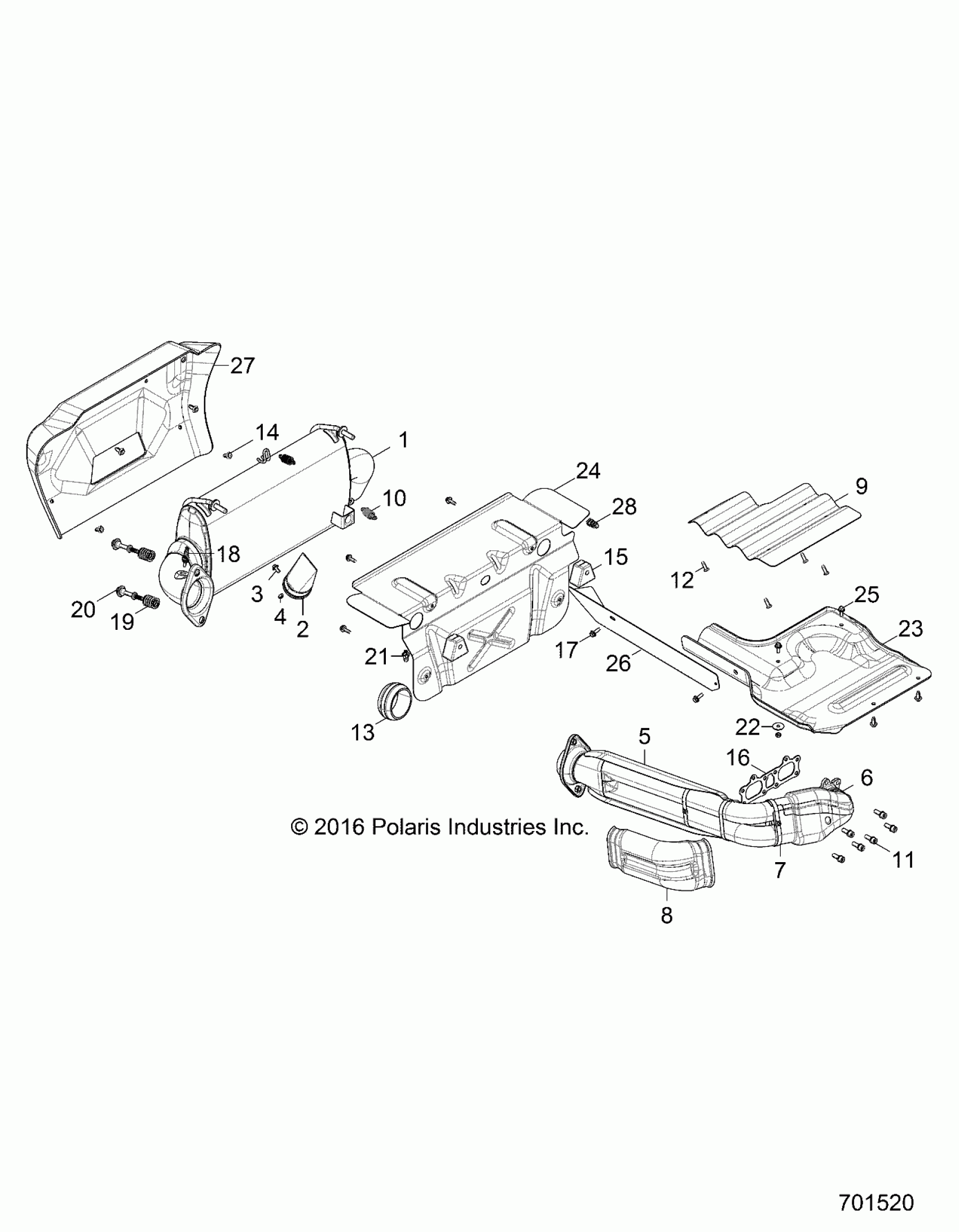

Polaris RZR XP 1000 (R17) - Z17VDE99AM/AP/AW/LW/K99AK/M99AB/R99AZ ENGINE, EXHAUST SYSTEM - Z17VD_99AB/AK/AM/AW/LW/AZ/AP (701520) Diagram

#

Description
Price

1

ASM-SILENCER [INCL. 2-4]

1262595

$615.99

2

ARRESTOR, SPARK

1262390

$47.99

3

SCREW

7517257

$9.59

4

NUT-HEX-M6X1.0 8 SPC

7547120

$4.79

5

ASM., HEADPIPE [INCL. 6-8]

1262599

$363.99

6

CLAMP-HEAT SHIELD,EXHAUST

7081156

$7.19

7

CLAMP, HEAT SHIELD,EXHAUST

7081579

$7.19

8

SHIELD-HEAT,HEADPIPE,OUTSIDE

5257570

Unavailable

9

SHIELD-ACCESS PANEL

5262942

$36.41

10

SPRING-EXHAUST

7041789

$7.99

11

SCREW

7518984

$7.99

12

SCREW

7519045

$3.19

13

GASKET, DOUBLE, SPHERICAL

3610236

$47.99

14

Rivet

7661855

$1.49

15

MOUNT, ISOLATOR

5450115

$14.39

16

GASKET-EXHAUST SEAL

3610184

$48.56

17

SCR-M6X1.0X20,HXHD,FLG,TDFM,BK

7518529

$1.49

18

SENSOR, OXYGEN

4016021

$159.99

19

SPRING, SPHERICAL, EXHAUST

7044274

$14.39

20

STUD-SPHERICAL,EXHAUST

7520079

$13.59

21

CLIP FIR-TREE,DIA6-33MM

7081496

$4.79

22

WASHER-.281X1.00X.051

7556329

$1.49

23

SHIELD-BOX,FRONT

5814245

$43.99

24

SHIELD-REAR,AL

5263026

Unavailable

25

SCR-HXFL-M6X1.0X16 8.8 ZPB

7518591

$3.73

26

SHIELD-FOIL,SIDE BOX,0.05"AL

5263028

$27.99

27

SHIELD-REAR BUMPER

5814362

$55.99

28

CLIP-EDGE,1-3MM,6-45MM,SERT.

7081808

$5.59
