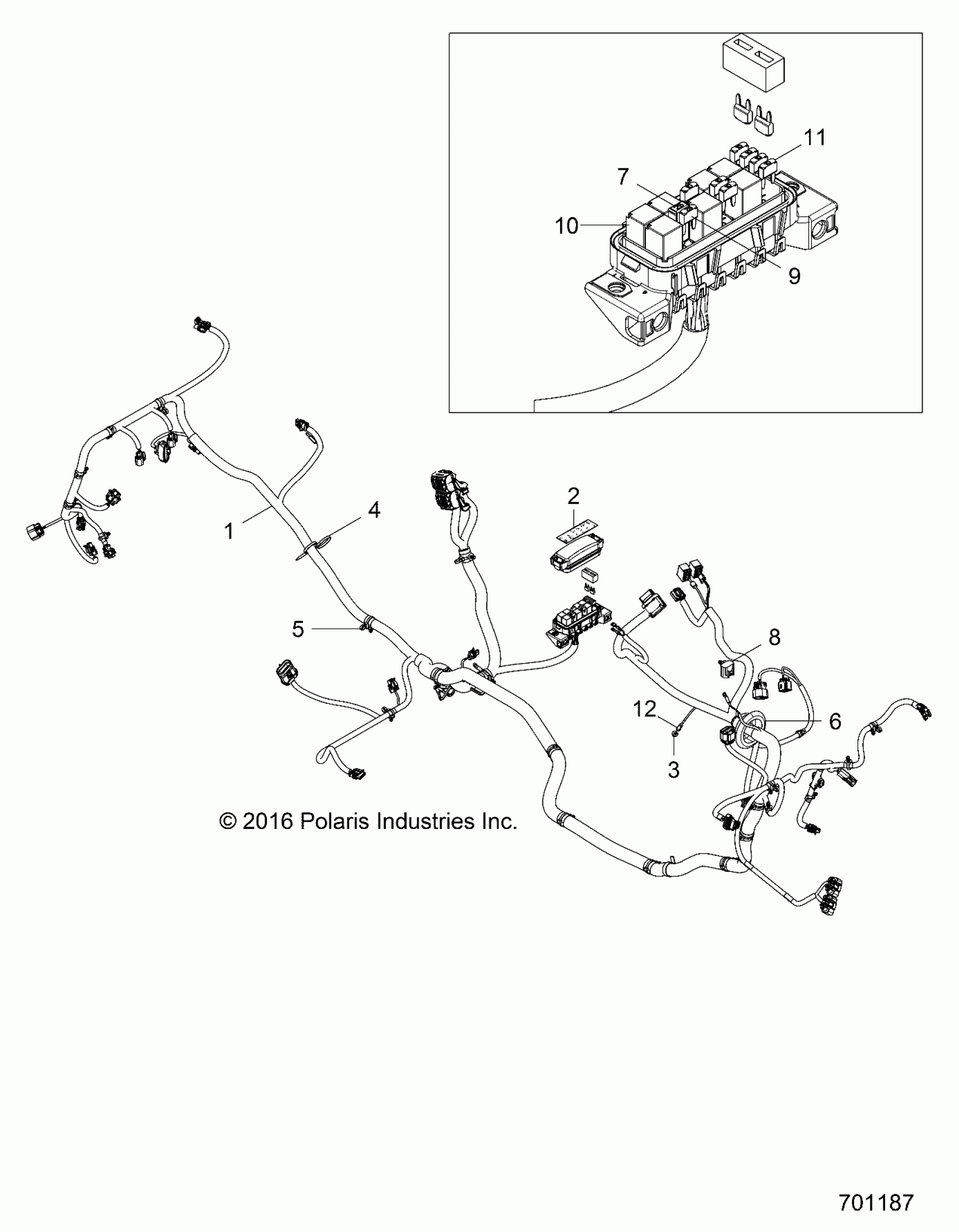

Polaris RZR XP 1000 (R17) - Z17VDE99AM/AP/AW/LW/K99AK/M99AB/R99AZ ELECTRICAL, WIRE HARNESS - Z17VDE99AM/AW/LW/M99AB (701187) Diagram

#

Description

Price

1

HARNESS-CHASSIS,EPS,RZN,64 [INCL. ALL][E99AM/AW/LW][TO 1/30/2017]

2413470

Unavailable

1

HARNESS-CHASSIS,EPS,RZN,64 [INCL. ALL][E99AM/AW/LW][FROM 1/30/2017]

2413848

Unavailable

1

HARNESS-CHASSIS,EPS,RZN,64,SLD [INCL. ALL][M99AB]

2413850

Unavailable

2

LABEL-FUSE BOX

7184131

Unavailable

3

CLIP-ROUTING,DIN BOX

7082020

$5.59

4

CABLE-TIE,DIA6-38MM,DUAL-LOOP

7081916

$4.79

5

CLIP FIR-TREE,DIA6-33MM

7081496

$4.79

6

GROMMET-65MM,BLK

5813954

$7.19

7

BREAKER-CIRCUIT,25 AMP

4015771

$63.99

8

COVER-DIAGNOSTIC,W/CLIP

4012170

$8.08

9

FUSE-25A,MINI BLADE

4011653

$7.99

10

RELAY-SPST,SERIES 303,SEALED

4011283

Unavailable

11

FUSE-IGNITION,10 AMP

2434016

$4.79

12

LED-PANEL MNT,12V,BLUE

2413217

$51.99
