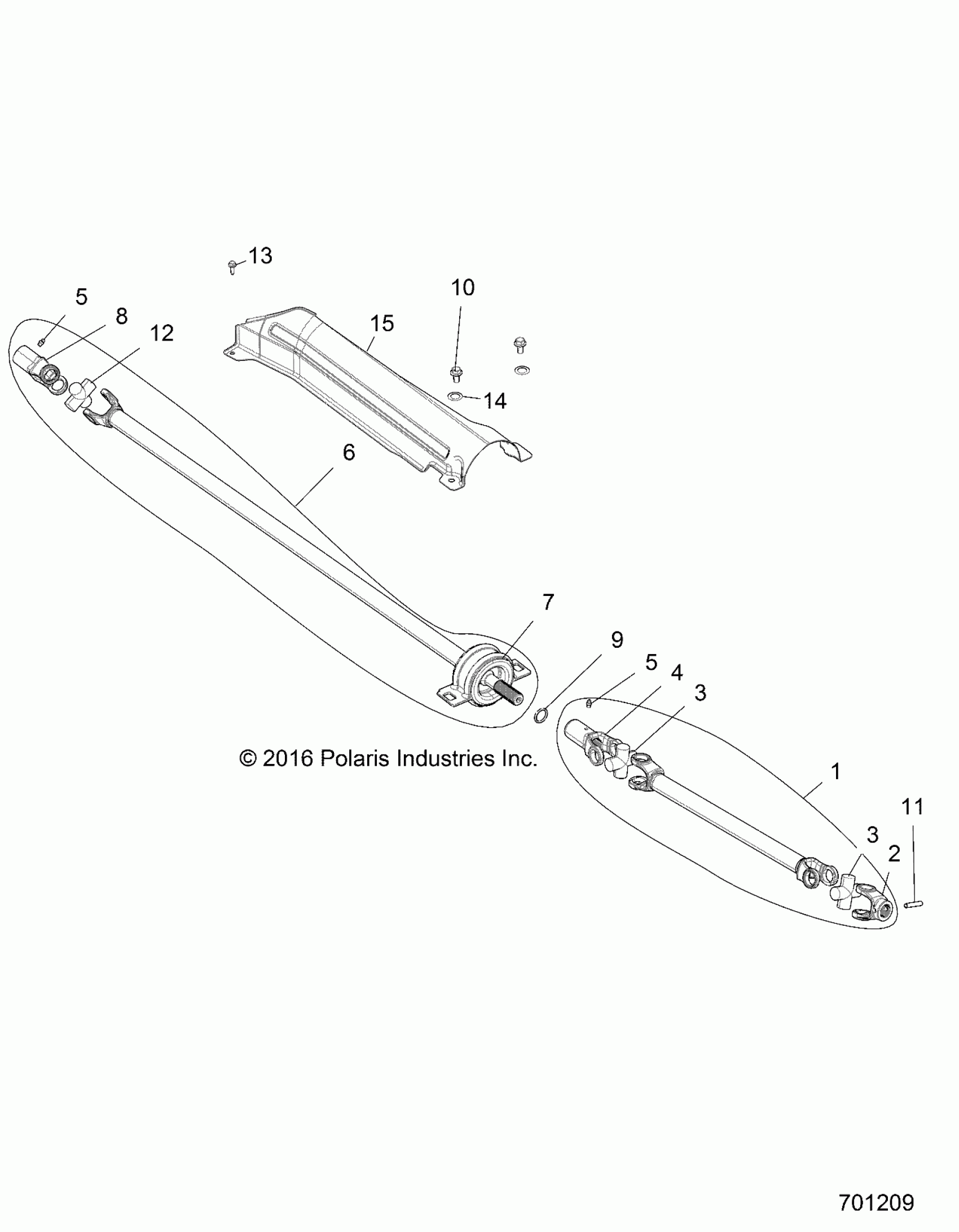

Polaris RZR XP 1000 (R17) - Z17VDE99AM/AP/AW/LW/K99AK/M99AB/R99AZ DRIVE TRAIN, FRONT PROP SHAFT - Z17VD_99AB/AK/AM/AW/LW/AZ/AP (701209) Diagram

ASM., PROPSHAFT, FRONT [INCL. 2-5]

1333350

$308.74

YOKE, PIN

3235618

$113.32

U-JOINT, 1000 SERIES

3235616

$71.24

U-JOINT, 1000 SERIES

3235616

$71.24

YOKE, SLIP

3235619

$224.99

FITTING-LUBRICATION 1/4-28

7080424

$4.76

FITTING-LUBRICATION 1/4-28

7080424

$4.76

ASM., PROPSHAFT, REAR [INCL. 7, 1 QTY OF 12, 1 QTY OF 5,8][BUILT 7/30/14 AND AFTER]

1333424

$304.99

ASM., PROPSHAFT, REAR [INCL. 7, 1 QTY OF 12, 1 QTY OF 5,8][BUILT 7/30/14 AND BEFORE]

1333195

$304.99

ASM., BEARING, FLEX [USE W/1333424]

3514900

$90.24

ASM., BEARING, FLEX [USE W/1333195]

3514806

$90.24

YOKE-SLIP

3235501

$156.74

O-RING

5411965

$3.63

SCR-HXFL-M10X1.5X20 8.8 Z NYL

7518460

$1.59

PIN-SPRING,5/16 X 1 5/8-Y

7661913

$3.97

U-JOINT, 1000 SERIES

3235500

$67.46

SCR-M6X1.0X20,HXHD,FLG,TDFM,BK

7518529

$1.19

WASHER-.438X1.375X.083, FL-B

7555852

$2.38

BRKT-TANK SUPPORT,INNER,BLK

5261940-329

$234.99
