- RZR XP 1000 (R17) - Z17VDE99AM/AP/AW/LW/K99AK/M99AB/R99AZ
CHASSIS, MAIN FRAME AND SKID PLATES - Z17VDR99AZ (C701181)

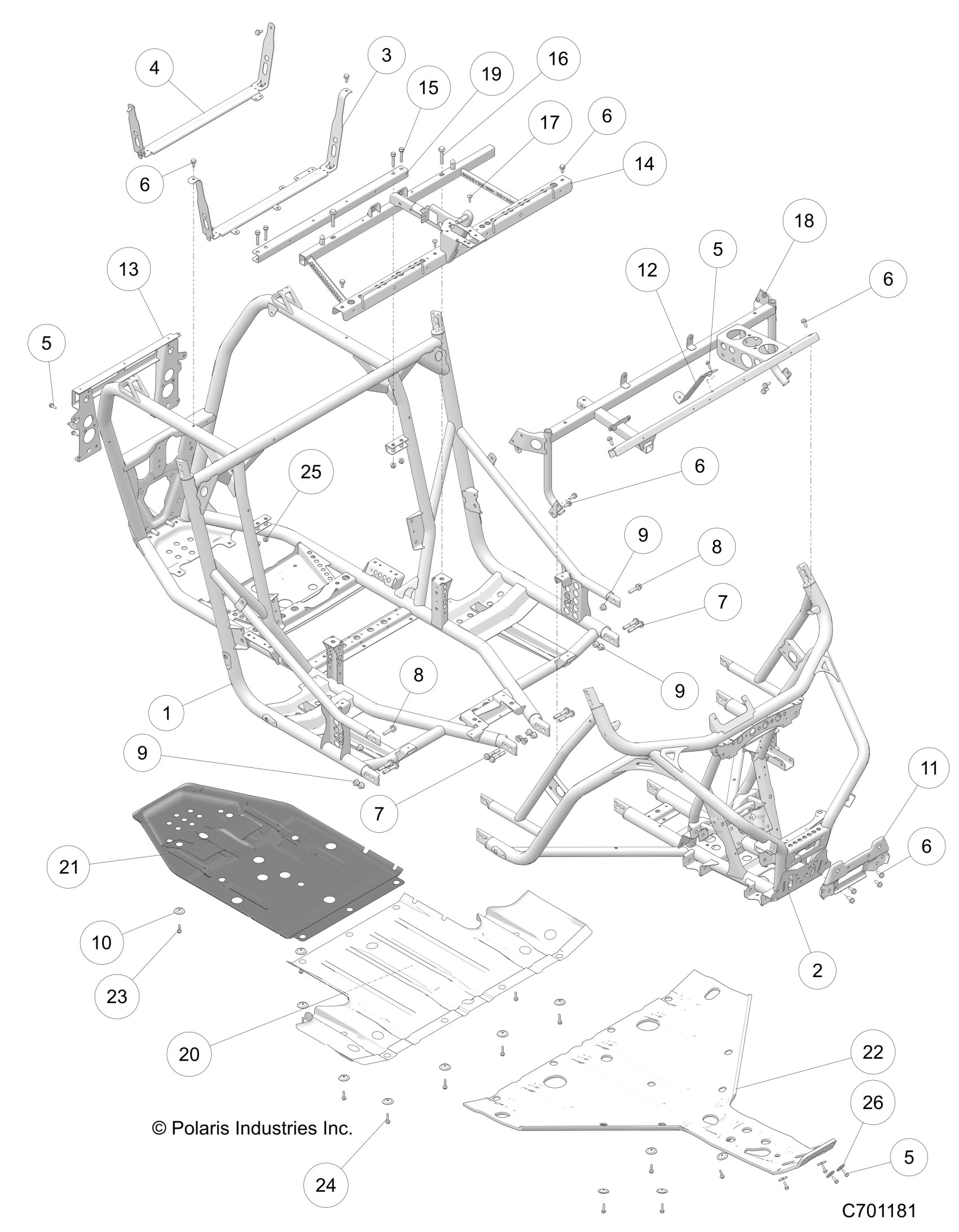

Polaris RZR XP 1000 (R17) - Z17VDE99AM/AP/AW/LW/K99AK/M99AB/R99AZ CHASSIS, MAIN FRAME AND SKID PLATES - Z17VDR99AZ (C701181) Diagram
#
Description
Price
1
WELD-MAIN FRAME,BLK
1022402-458
$2,230.79
2
WELD-MAINFRAME,FRT,SWAY,BLK
1022399-458
$1,363.99
3
BRACKET, BOX STRAP, BLACK
5260947-329
$43.99
4
BRACKET, BOX SUPPORT REAR, BLACK
5260948-329
$43.99
5
SCR-M6X1.0X20,HXHD,FLG,TDFM,BK
7518529
$1.49
5
SCR-M6X1.0X20,HXHD,FLG,TDFM,BK
7518529
$1.49
5
SCR-M6X1.0X20,HXHD,FLG,TDFM,BK
7518529
$1.49
6
BOLT
7518555
$2.39
6
BOLT
7518555
$2.39
6
BOLT
7518555
$2.39
6
BOLT
7518555
$2.39
6
BOLT
7518555
$2.39
7
SCREW
7519285
$2.39
7
SCREW
7519285
$2.39
8
SCREW
7519332
$5.59
8
SCREW
7519332
$5.59
9
NUT-HXFL M10X1.25 8 ZTB NYL
7547333
$1.59
9
NUT-HXFL M10X1.25 8 ZTB NYL
7547333
$1.59
9
NUT-HXFL M10X1.25 8 ZTB NYL
7547333
$1.59
10
WASHER-SKID PLATE
7556065
$4.79
11
BRKT-SUSP MNT,FRT,M.BLK
5259449-458
$51.99
12
BRACKET, DIN MOUNT, BLACK
5257304-329
$27.99
13
SUPPORT, REAR, BLACK
1019529-458
$115.99
14
WELD-SEAT BASE,BLK
1022443-329
$283.99
15
SCR-M8X1.25X45-HX/FL-Y
7516732
$1.59
16
BOLT
7518474
$4.79
17
SCR-TXTH-M6X1.0X25 ZFB
7519650
$3.99
18
DASH, BLACK
1020984-329
$307.99
19
BRKT-CLOSE OFF SUPPORT,BLK
5260539-329
$35.99
20
SKIDPLATE-HMW,MID,RZN
5450926
$271.99
21
SKIDPLATE-HMW,RR,RZN,R2
5452769
$271.99
22
SKIDPLATE-HMW,FRT,BUMPER WRAP
5453214
$335.99
23
SCR-TFHFL-M6X1.0X25,ZOD
7519342
$1.86
24
BOLT-HXFL-M6X1.0X30 RIE TAPR
7519344
$3.99
25
NUT- M8X1.25, FLG, NYLOC-OLIVE D
7547332
$3.99
26
WASHER-.270X1.25X.060,FL-Y
7558221
$2.39
