- RZR XP 1000 (R17) - Z17VDE99AM/AP/AW/LW/K99AK/M99AB/R99AZ
CHASSIS, MAIN FRAME AND SKID PLATES - Z17VD_99AB/AK/AM/AW/LW (701180)

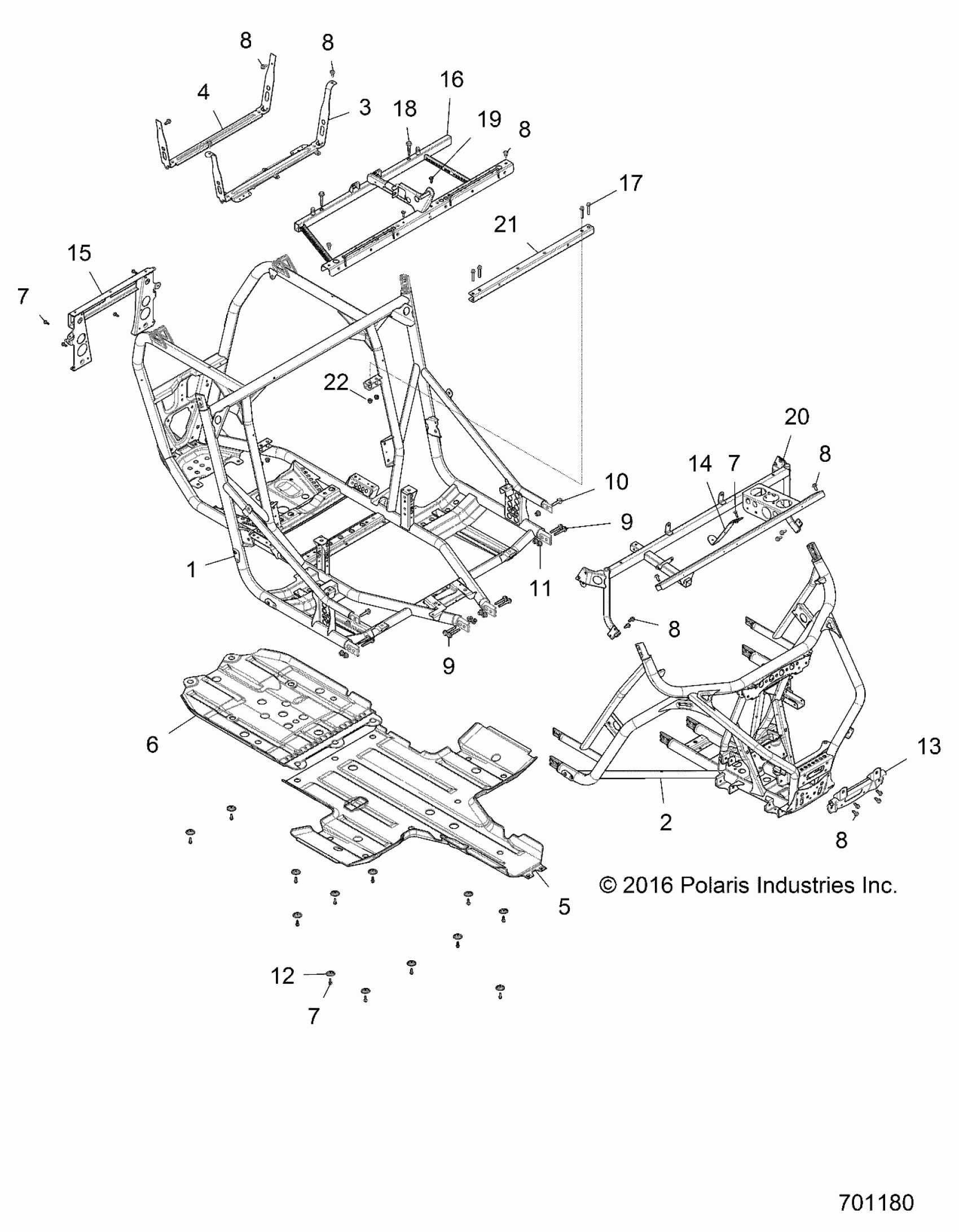

Polaris RZR XP 1000 (R17) - Z17VDE99AM/AP/AW/LW/K99AK/M99AB/R99AZ CHASSIS, MAIN FRAME AND SKID PLATES - Z17VD_99AB/AK/AM/AW/LW (701180) Diagram
#
Description
Price
1
FRAME, MAIN, BLACK [AM][AW]
1021247-458
$2,433.19
1
WELD-MAIN FRAME,BLK [LW][AZ][AB]
1022402-458
$2,230.79
2
WELD-MAINFRAME,FRT,SWAY,BLK
1022399-458
$1,363.99
3
BRACKET, BOX STRAP, BLACK
5260947-329
$43.99
4
BRACKET, BOX SUPPORT REAR, BLACK
5260948-329
$43.99
5
PLATE, SKID, BLACK
5450239-070
Unavailable
6
PLATE, SKID, REAR, BLACK
5452063-070
Unavailable
7
SCR-M6X1.0X20,HXHD,FLG,TDFM,BK
7518529
$1.49
7
SCR-M6X1.0X20,HXHD,FLG,TDFM,BK
7518529
$1.49
7
SCR-M6X1.0X20,HXHD,FLG,TDFM,BK
7518529
$1.49
8
BOLT
7518555
$2.39
8
BOLT
7518555
$2.39
8
BOLT
7518555
$2.39
8
BOLT
7518555
$2.39
8
BOLT
7518555
$2.39
8
BOLT
7518555
$2.39
9
SCREW
7519285
$2.39
9
SCREW
7519285
$2.39
10
SCREW
7519332
$5.59
11
NUT-HXFL M10X1.25 8 ZTB NYL
7547333
$1.59
12
WASHER-SKID PLATE
7556065
$4.79
13
BRKT-SUSP MNT,FRT,M.BLK
5259449-458
$51.99
14
BRACKET, DIN MOUNT, BLACK
5257304-329
$27.99
15
SUPPORT, REAR, BLACK
1019529-458
$115.99
16
BASE, SEAT, BLACK
1020571-329
$195.99
17
SCR-M8X1.25X45-HX/FL-Y
7516732
$1.59
18
BOLT
7518474
$4.79
19
SCR-TXTH-M6X1.0X25 ZFB
7519650
$3.99
20
DASH, BLACK
1020984-329
$307.99
21
BRKT-CLOSE OFF SUPPORT,BLK
5260539-329
$35.99
22
NUT- M8X1.25, FLG, NYLOC-OLIVE D
7547332
$3.99
