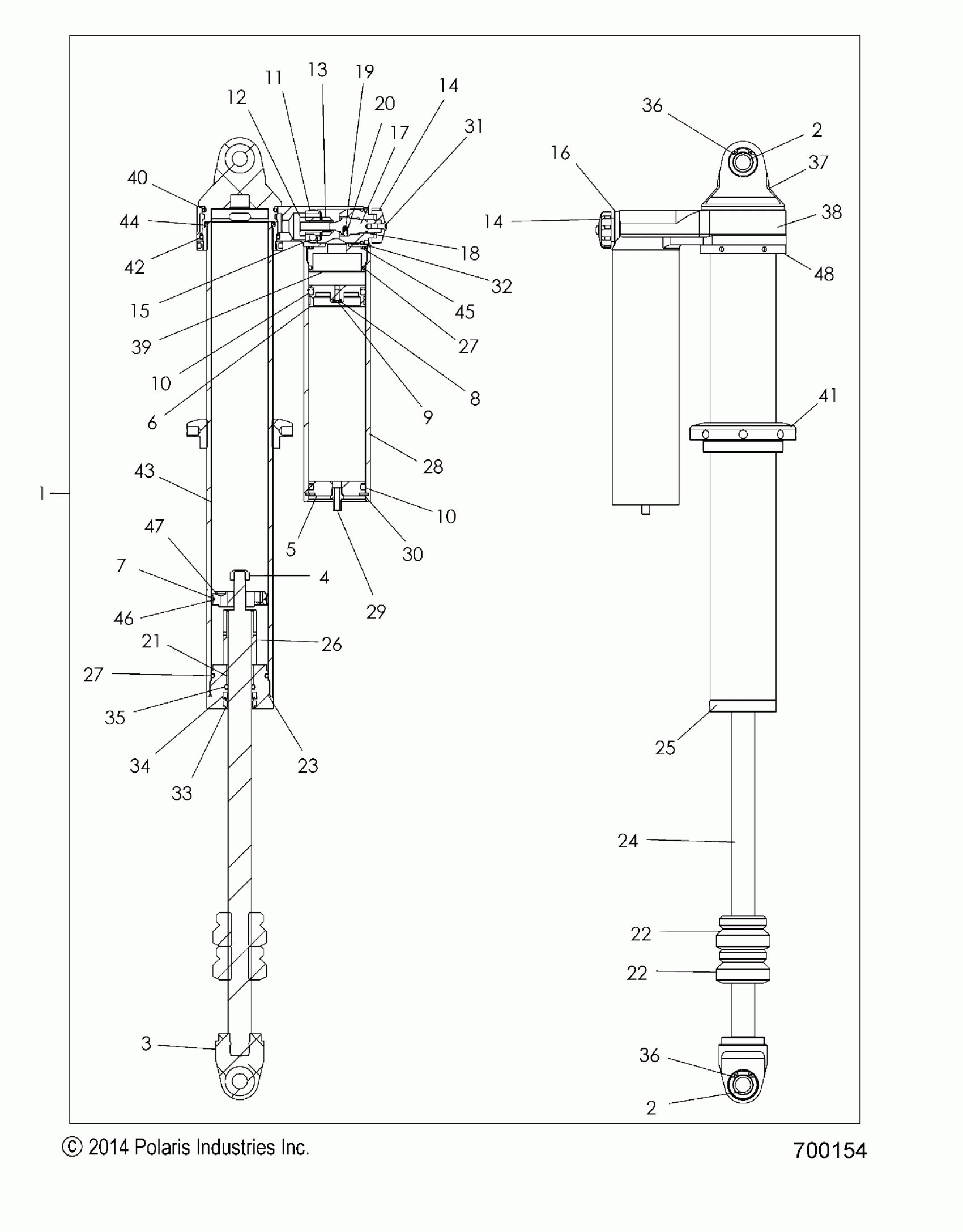

Polaris RZR XP 1000 (R12) - Z16VDE99AF/AM/LM/M99AM SUSPENSION, REAR SHOCK - Z16VDM99AM (700154) Diagram

#

Description
Price

1

SHOCK, REAR [INCL. ALL]

7044257

$760.75

2

BEARING, SPHERICAL

1800592

$59.99

2

BEARING, SPHERICAL

1800592

$59.99

3

LOOP, SHAFT

1800555

$223.99

4

NUT, NYLOCK

1800638

$4.79

5

CAP, END

1800552

$119.99

6

PISTON, RESERVOIR

1800480

$123.99

7

BAND, PISTON

1800509

$55.99

8

O-RING

1800210

$1.59

9

SCREW, BLEED

1800043

$5.59

10

O-RING

1800508

$5.59

10

O-RING

1800508

$5.59

11

VALVE, CHECK

1800546

$57.19

12

BOLT, CLICKER

1800547

$35.99

13

NUT, CRIMP

1800164

$9.59

14

KNOB, ADJUSTER

1800553

$131.99

14

KNOB, ADJUSTER

1800553

$131.99

15

BALL

1800548

$7.19

16

NUT

1800492

Unavailable

17

NUT

1800493

Unavailable

18

O-RING

1800501

$6.39

19

SPRING-COMP .025X.3, 40.5#

1800128

$10.39

20

BALL, DETENT

1800127

$6.39

21

BUSHING, SHAFT

1800643

$37.11

22

BUMPER

1800201

Unavailable

22

BUMPER

1800201

Unavailable

23

O-RING

1800613

$10.39

24

SHAFT, NEEDLE, CHROME

1800713

$139.99

25

ASM., SEALHEAD, 2.5"

1800549

$127.59

26

SPACER

1800657

$27.99

27

O-RING

1800500

$1.99

27

O-RING

1800500

$1.99

28

BODY, RESERVOIR

1800633

Unavailable

29

SCHRADER VALVE

1800021

$43.99

30

RING, RETAINING

1800507

$10.39

31

SCREW

1800357

$3.19

32

O-RING

1800503

$1.59

33

WIPER

1800641

$31.99

33

WIPER

1800641

$31.99

34

SEAL, SHAFT

1800642

$23.99

35

O-RING

1800636

$7.19

36

SNAP RING

1800481

$79.99

37

LOOP, BODY

1800605

$243.99

38

BRIDGE, PIGGYBACK

1800550

$190.95

39

MOUNT, RESERVOIR

1800488

$83.99

40

O-RING

1800497

$5.59

41

NUT, SPRING

1800715

$104.99

42

O-RING

1800499

$1.59

43

BODY

1800714

$195.51

44

O-RING

1800498

$1.99

45

O-RING

1800502

$1.99

46

O-RING, 2-031 VITON

1800717

$1.59

47

PISTON, NO BLEED

1800716

$167.19

48

LOCK NUT, 2.5"

1800551

$83.99
