- RZR XP 1000 (R12) - Z16VDE99AF/AM/LM/M99AM
SUSPENSION, REAR SHOCK - Z16VDE99AF/LM/AM/AS (49RGRSHOCKRR7044376)

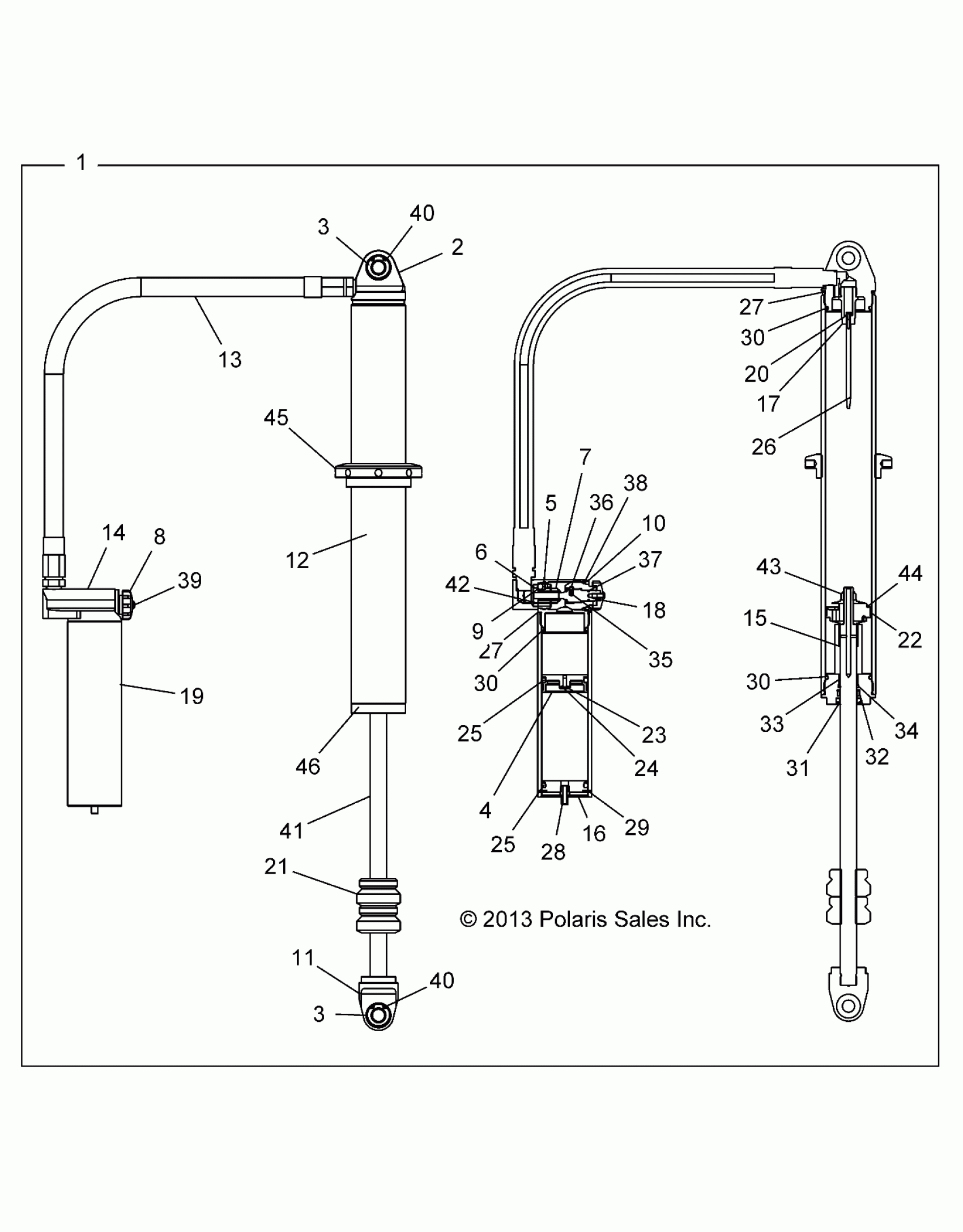

Polaris RZR XP 1000 (R12) - Z16VDE99AF/AM/LM/M99AM SUSPENSION, REAR SHOCK - Z16VDE99AF/LM/AM/AS (49RGRSHOCKRR7044376) Diagram
#
1
SHOCK, REAR [INCL. ALL]
7044376
$865.19
2
LOOP, BODY
1800605
$243.99
3
BEARING, SPHERICAL
1800592
$59.99
3
BEARING, SPHERICAL
1800592
$59.99
4
PISTON, RESERVOIR
1800480
$123.99
5
VALVE, CHECK
1800546
$57.19
6
BOLT, CLICKER
1800547
$35.99
7
NUT, CRIMP
1800164
$9.59
8
KNOB, ADJUSTER
1800553
$131.99
9
BALL
1800548
$7.19
10
NUT
1800492
Unavailable
11
LOOP, SHAFT
1800555
$223.99
12
BODY
1800606
$413.81
13
HOSE
1800607
$112.85
14
MOUNT, RESERVOIR
1800608
$246.61
15
SPACER
1800610
$55.99
16
CAP, END
1800552
$119.99
17
BOLT, NEEDLE
1800611
$31.50
18
NUT
1800493
Unavailable
19
BODY, RESERVOIR
1800644
$87.99
20
SCREW, BLEED W/O RING
1800074
Unavailable
21
BUMPER
1800201
Unavailable
22
BAND, PISTON
1800509
$55.99
23
O-RING
1800210
$1.59
24
SCREW, BLEED
1800043
$5.59
25
O-RING
1800508
$5.59
25
O-RING
1800508
$5.59
26
NEEDLE
1800612
Unavailable
27
O-RING
1800613
$10.39
27
O-RING
1800613
$10.39
28
SCHRADER VALVE
1800021
$43.99
29
RING, RETAINING
1800507
$10.39
30
O-RING
1800500
$1.99
30
O-RING
1800500
$1.99
30
O-RING
1800500
$1.99
31
WIPER
1800506
$39.99
32
SEAL, SHAFT
1800505
$47.99
33
BUSHING, SHAFT
1800504
$27.99
34
O-RING
1800614
Unavailable
35
SPRING-COMP .025X.3, 40.5#
1800128
$10.39
36
BALL, DETENT
1800127
$6.39
37
O-RING
1800501
$6.39
38
O-RING
1800503
$1.59
39
SCREW
1800357
$3.19
40
RING, RETAINING
1800482
$10.39
40
RING, RETAINING
1800482
$10.39
41
SHAFT, NEEDLE, CHROME
1800620
$223.99
42
SCREW
1800639
$13.59
43
NUT, NYLOCK
1800638
$4.79
44
PISTON, NO BLEED
1800659
$111.99
45
NUT, SPRING
1800715
$104.99
46
ASM., SEALHEAD, 2.5"
1800549
$127.59
