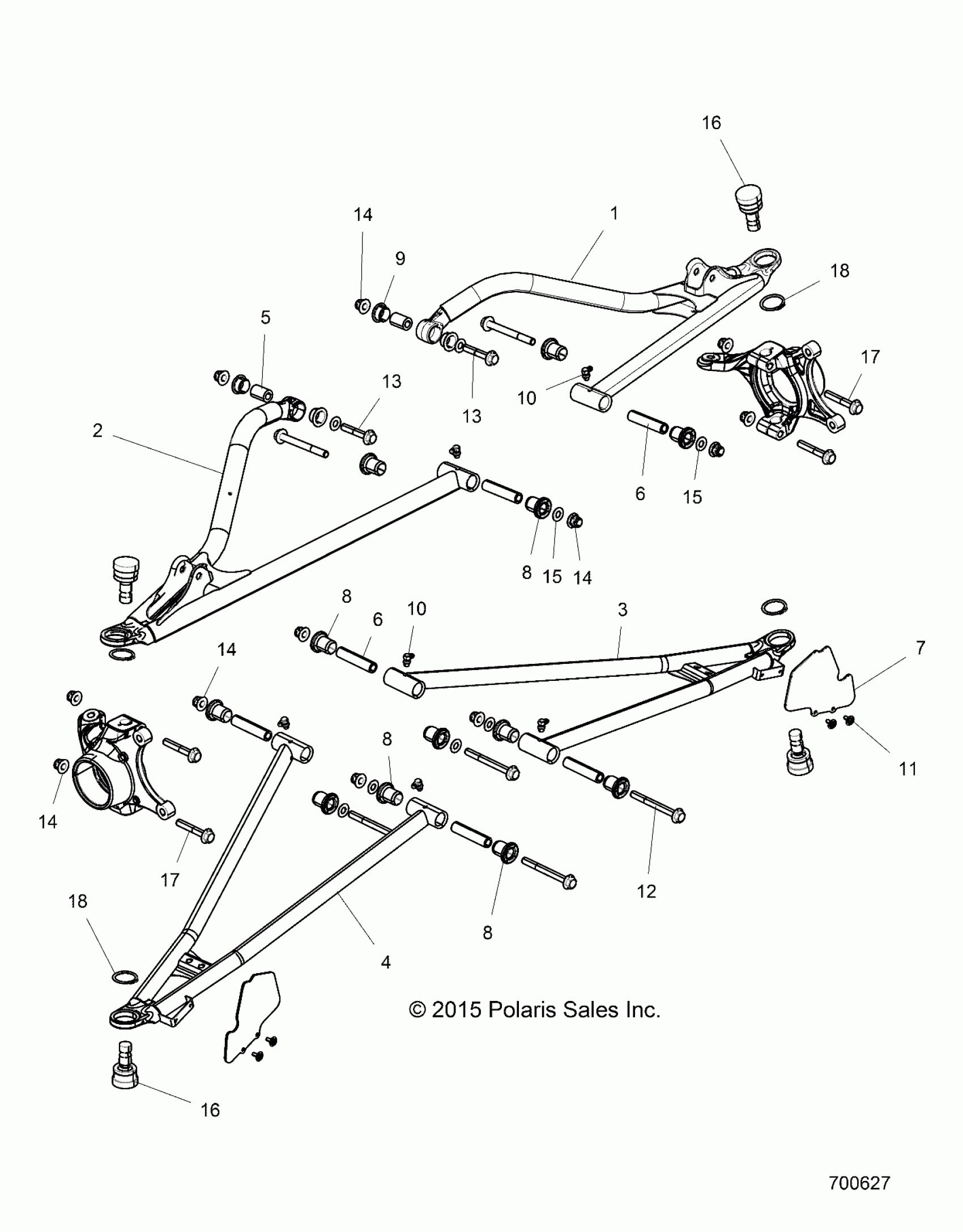

Polaris RZR XP 1000 (R12) - Z16VDE99AF/AM/LM/M99AM SUSPENSION, FRONT CONTROL ARMS - Z16VDE99AF/AM/LM/AS/M99AM (700627) Diagram

#

Description
Price

1

ARM, CONTROL, UPPER, FRONT, LH, 64, INDY RED [M99AM]

1021732-293

Unavailable

1

ARM, CONTROL, UPPER, FRONT, LH, CLOUD SILVER [AF][AS]

1021732-385

Unavailable

1

WELD-CTRL ARM,UPR,FR,LH,64,L/S [AM][LM]

1021732-630

$333.32

2

ARM, CONTROL, UPPER, FRONT, RH, 64, INDY RED [M99AM]

1021733-293

Unavailable

2

ARM, CONTROL, UPPER, FRONT, RH, CLOUD SILVER [AF][AS]

1021733-385

$333.32

2

WELD-CTRL ARM,UPR,FR,RH,64,L/S [AM][LM[

1021733-630

Unavailable

3

ARM, CONTROL, LOWER, FRONT, LH, CLOUD SILVER [AF][AS]

1018826-385

$150.06

3

WELD-CTRL ARM,LWR,FR,LH,64,L/S [AM][LM]

1018826-630

$154.90

3

ARM, CONTROL, HC, LOWER, FRONT, LH, 64, INDY RED [M99AM]

1020540-293

$209.51

4

ARM, CONTROL, LOWER, FRONT, RH, CLOUD SILVER [AF][AS]

1018827-385

$150.06

4

WELD-CTRL ARM,LWR,FR,RH,64,L/S [AM][LM]

1018827-630

$154.90

4

ARM, CONTROL, HC, LOWER, FRONT, RH, 64, INDY RED [M99AM]

1020541-293

$222.68

5

TUBE, PIVOT

5138276

$28.32

6

SHAFT-PIVOT,70.99MM,15.88OD

5138797

$10.44

6

SHAFT-PIVOT,70.99MM,15.88OD

5138797

$10.44

7

SHIELD, CV, FRONT, BLACK

5438641-070

$3.22

8

BUSHING-STANDARD,ORV

5439874

$2.38

8

ASM-BUSHING,HD,W/SEAL,5.23 FLG [OPTIONAL]

1543367

$10.32

8

BUSHING-STANDARD,ORV

5439874

$2.38

8

ASM-BUSHING,HD,W/SEAL,5.23 FLG [OPTIONAL]

1543367

$10.32

8

BUSHING-STANDARD,ORV

5439874

$2.38

8

ASM-BUSHING,HD,W/SEAL,5.23 FLG [OPTIONAL]

1543367

$10.32

8

BUSHING-STANDARD,ORV

5439874

$2.38

8

ASM-BUSHING,HD,W/SEAL,5.23 FLG [OPTIONAL]

1543367

$10.32

9

BUSHING, CONTROL ARM

5450095

$2.38

10

FITTING, ZERK

7080510

$5.56

10

FITTING, ZERK

7080510

$5.56

11

Screw

7512084

$1.19

12

SCREW

7519043

$9.52

13

SCREW

7519285

$2.38

13

SCREW

7519285

$2.38

14

NUT-HXFL M10X1.25 8 ZTB NYL

7547333

$1.59

14

NUT-HXFL M10X1.25 8 ZTB NYL

7547333

$1.59

14

NUT-HXFL M10X1.25 8 ZTB NYL

7547333

$1.59

14

NUT-HXFL M10X1.25 8 ZTB NYL

7547333

$1.59

15

WASHER

7556153

$1.98

15

WASHER

7556153

$1.98

16

BALL, JOINT, HARDENED

7081992

$48.56

16

BALL, JOINT, HARDENED

7081992

$48.56

17

SCREW

7519306

$5.56

17

SCREW

7519306

$5.56

18

RING, RETAINING

7710716

$8.08

18

RING, RETAINING

7710716

$8.08
