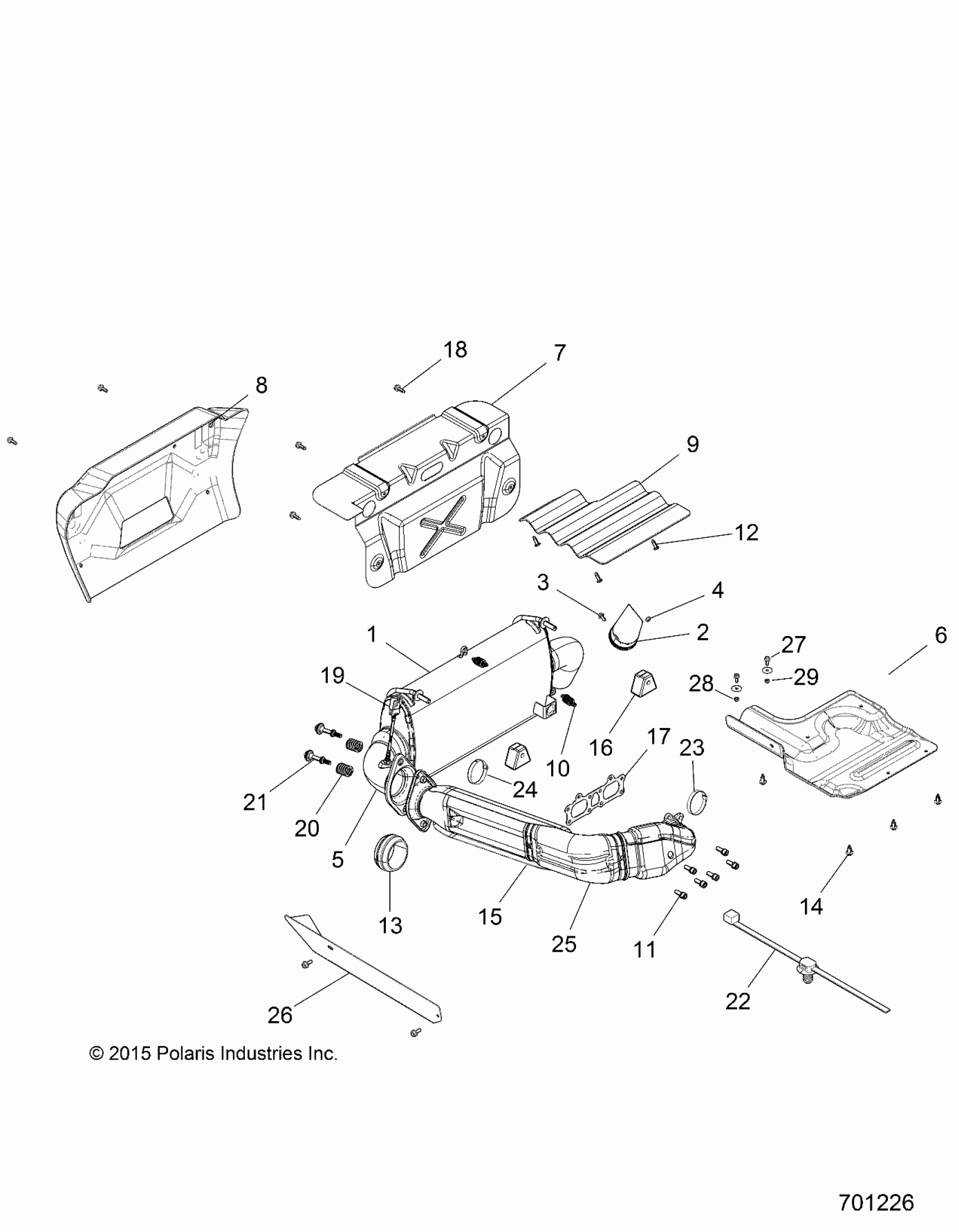

Polaris RZR XP 1000 (R12) - Z16VDE99AF/AM/LM/M99AM ENGINE, EXHAUST SYSTEM - Z16VDE99AF/AM/LM/AS/M99AM (701226) Diagram

#

Description
Price

1

ASM., SILENCER [INCL. 2-5]

1262595

$615.99

2

ARRESTOR, SPARK

1262390

$47.99

3

SCREW

7517257

$9.59

4

NUT-HEX-M6X1.0 8 SPC

7547120

$4.79

5

SILENCER

-------

Unavailable

6

SHIELD-BOX,FRONT [AF][AM][LM][AS]

5814245

$43.99

7

SHIELD, FOIL, REAR BOX

5260102

$44.51

8

SHIELD-REAR BUMPER

5814362

$55.99

9

SHIELD, FOIL, ACCESS PANEL

5814000

Unavailable

9

SHIELD, ACCESS PANEL [M99AM]

5814082

$39.99

10

SPRING-EXHAUST

7041789

$7.99

11

SCREW

7518984

$7.99

12

SCREW

7519045

$3.19

13

GASKET, DOUBLE, SPHERICAL

3610236

$47.99

14

Rivet

7661855

$1.49

15

ASM., HEADPIPE

1262599

$363.99

16

MOUNT, ISOLATOR

5450115

$14.39

17

GASKET-EXHAUST SEAL

3610184

$48.56

18

SCR-M6X1.0X20,HXHD,FLG,TDFM,BK

7518529

$1.49

19

SENSOR, OXYGEN

4016021

$159.99

20

SPRING, SPHERICAL, EXHAUST

7044274

$14.39

21

STUD-SPHERICAL,EXHAUST

7520079

$13.59

22

CLIP FIR-TREE,DIA6-33MM

7081496

$4.79

23

CLAMP-HEAT SHIELD,EXHAUST

7081156

$7.19

24

CLAMP, HEAT SHIELD,EXHAUST

7081579

$7.19

25

SHIELD-HEAT,HEADPIPE,OUTSIDE

5257570

Unavailable

26

K-SHIELD,SIDE BOX

2206583

Unavailable

27

SCR-HXFL-M6X1.0X16 8.8 ZPB

7518591

$3.73

28

NUT-HEX-M6X1.0 8 SPC

7547120

$4.79

29

WASHER-.281X1.00X.051

7556329

$1.49
