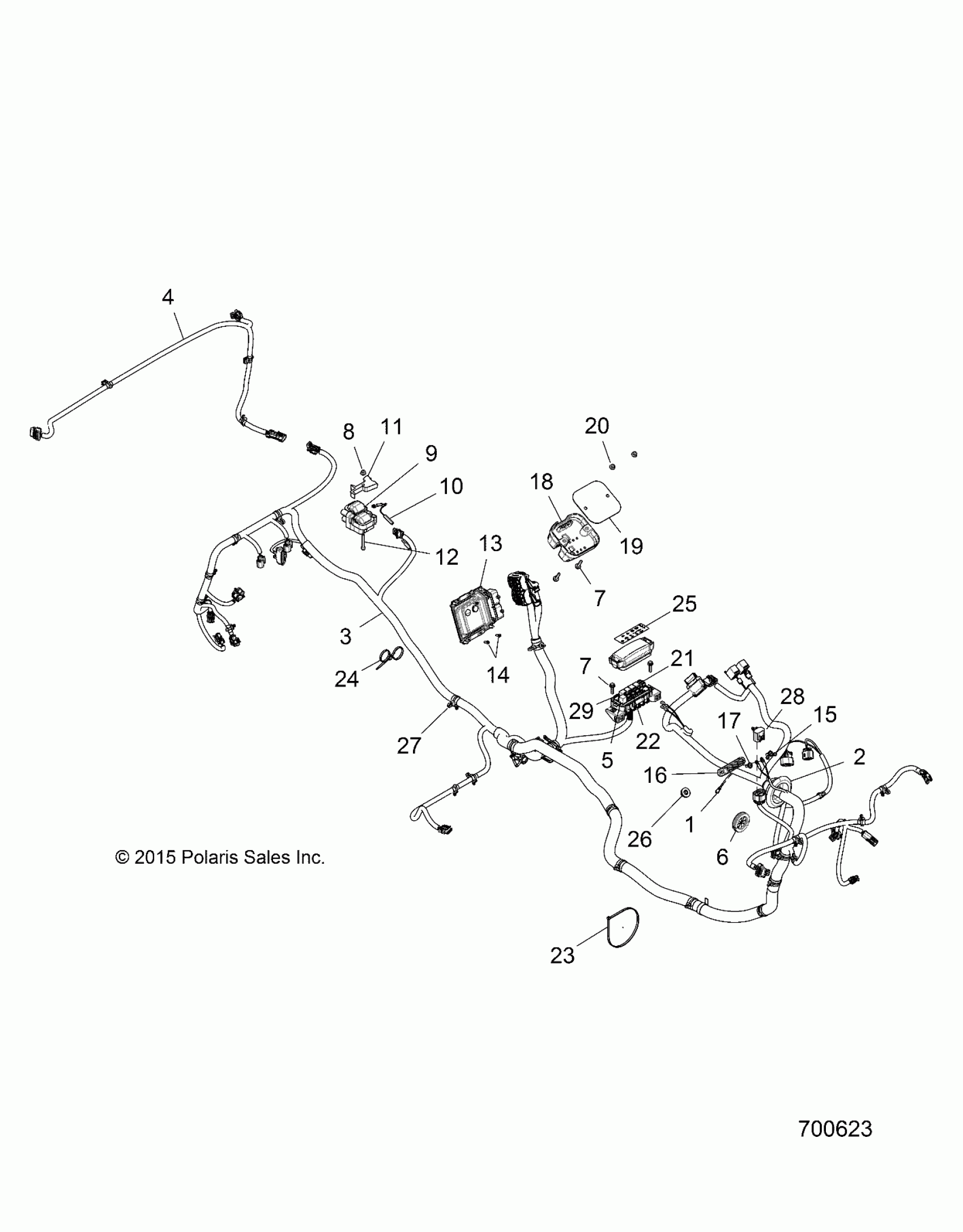

Polaris RZR XP 1000 (R12) - Z16VDE99AF/AM/LM/M99AM ELECTRICAL, WIRE HARNESS - Z16VDE99AF/AM/LM/AS (700623) Diagram

#

Description
Price

1

LED, PANEL, MOUNT

2413217

$51.99

2

GROMMET

5813954

$7.19

3

HARNESS, CHASSIS, EPS [INCL. 1-2, 5, 21-22, 24-29]

2413232

$1,064.79

4

HARNESS, BOX

2412884

$55.99

5

RELAY-SPST,SERIES 303,SEALED

4011283

Unavailable

6

GROMMET, ELECTRICAL, CAB

5414440

$7.19

7

BOLT

7518576

$3.19

7

BOLT

7518576

$3.19

8

NUT-M6 FLANGE,NYLOC

7547274

$1.49

9

COIL-EFI

4010425

Unavailable

10

JUMPER, COIL GROUND

4014422

$27.99

11

SPACER-COIL MOUNT

5436577

$3.99

12

SCREW

7518780

$3.99

13

ECM, NO START, ME17

4014125

$694.99

14

SCREW

7519091

$3.19

15

NUTS, KEPS, 10-32

7547341

$1.49

16

BLOCK-TERMINAL,3 POST,TALL

4015778

$27.99

17

Screw

7518196

$1.49

18

NUT- M8X1.25, FLG, NYLOC-OLIVE D

7547332

$3.99

18

REGULATOR-3PH,50A,SERIES,HISPD

4014856

Unavailable

18

K-REGULATOR ADAPTER [IF BUILT 2/22/16 AND BEFORE ORDER KIT][INCLS. RIG., HARNESS, BOLTS, NUTS]

2206367

$101.19

18

SCR-HXFL-M6X1.0X30,RIE,DGPNT

7519202

$3.99

18

HARNESS-REGULATOR ADAPTE

2413573

$87.99

19

PLATE, HEAT SINK, REGULATOR

5254970

Unavailable

20

NUT- M8X1.25, FLG, NYLOC-OLIVE D

7547332

$3.99

21

FUSE-PARK,20 AMP

2434017

Unavailable

22

FUSE-IGNITION,10 AMP

2434016

$4.79

23

CABLE-TIE,10-102MM,WEATH.-RES.

7080761

$2.39

24

CABLE-TIE,DIA6-38MM,DUAL-LOOP

7081916

$4.79

25

LABEL, FUSE BOX

7180884

Unavailable

26

CLIP, ROUTING, DIN BOX

7082020

$5.59

27

CLIP FIR-TREE,DIA6-33MM

7081496

$4.79

28

COVER-DIAGNOSTIC,W/CLIP

4012170

$8.08

29

BREAKER-CIRCUIT,20 AMP

4011372

$40.46
