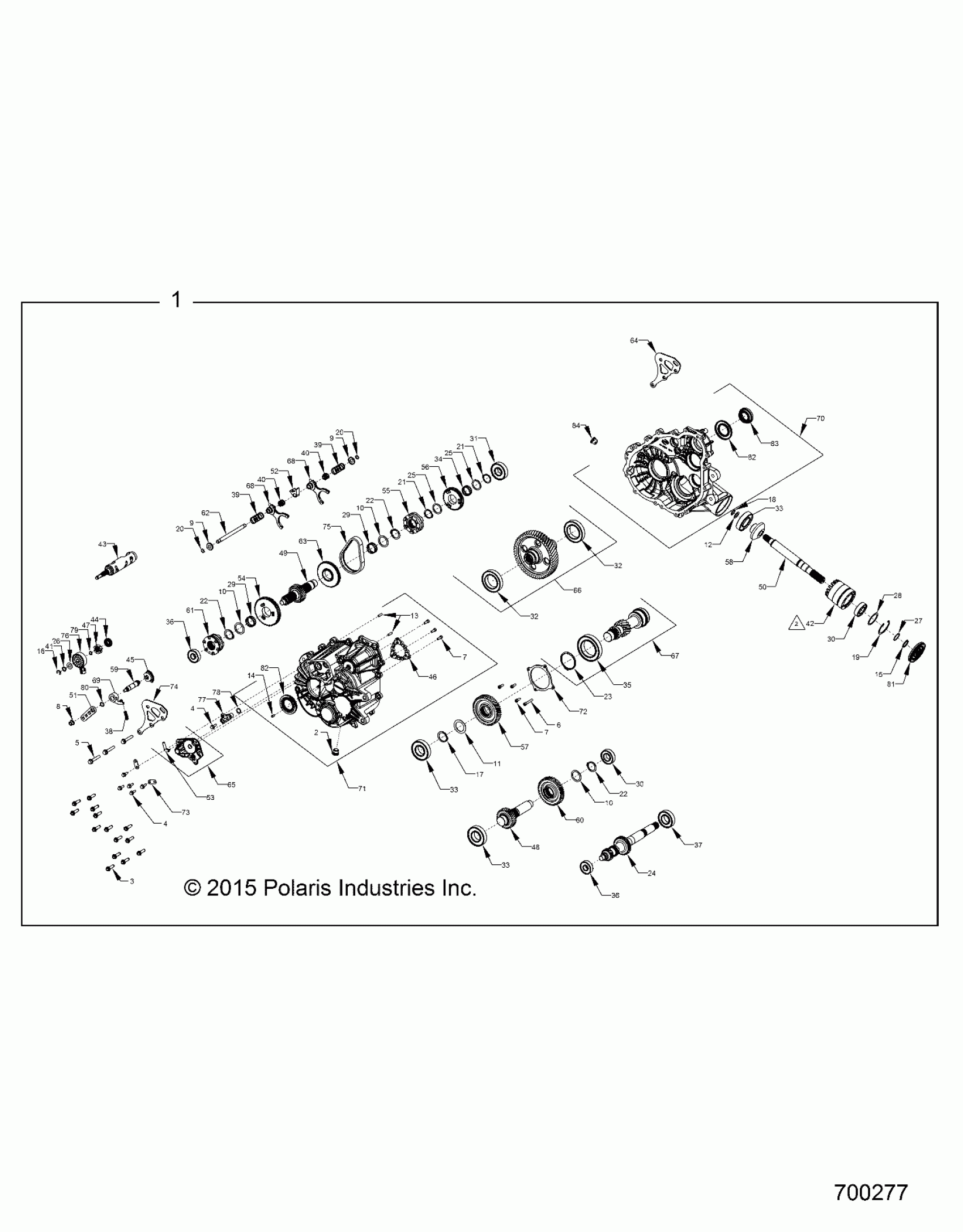

Polaris RZR XP 1000 (R12) - Z16VDE99AF/AM/LM/M99AM DRIVE TRAIN, MAIN GEARCASE INTERNALS - Z16VDM99AM (700277) Diagram

#

Description
Price

1

ASM-GEARCASE,COMPLETE,HC [INCL ALL]

1333472

$4,864.99

2

PLUG, M18 X 1.5 MAGNETIC

3234756

$31.75

3

SCREW-HEXFLANGEHEAD,M8X1.25X30

3234898

$9.52

4

SCREW, HEX FLANGE HEAD M6 X 1 X 20

3235206

$7.14

4

SCREW, HEX FLANGE HEAD M6 X 1 X 20

3235206

$7.14

5

SCREW HEX FLANGE M8 X 50

3235207

$10.32

6

SCREW, SOCKET HEAD CAP, M6 X 1.0 X 40

3235208

$11.11

7

SCREW, SOCKET HEAD CAP, M6 X 1.0 X 18

3235332

$3.97

7

SCREW, SOCKET HEAD CAP, M6 X 1.0 X 18

3235332

$3.97

8

NUT, LOCK HEX FLANGE NYLON M8 X 1.25

3235210

$7.94

9

WASHER-CUP

3234091

$9.52

9

WASHER-CUP

3234091

$9.52

10

WCUAPSHER 32.3 X 42 X 1.5

3235211

$10.32

10

WCUAPSHER 32.3 X 42 X 1.5

3235211

$10.32

10

WCUAPSHER 32.3 X 42 X 1.5

3235211

$10.32

11

WASHER 35.6 X 57 X 1.5

3235212

$13.49

12

WASHER 17.3 X 25 X 1.5

3235213

$15.87

13

PIN, DOWEL 6 X 20

3234330

$7.14

14

PIN, SPRING SLOTTED 6 X 12

7043746

$8.08

15

RING,RETAINING BASIC,EXTERNAL 0.984

3233106

$5.56

16

RING SNAP

3233834

$10.32

17

RING, RETAINING SHAFT, DIA. 1.375

3233364

$6.46

18

RING, RETAINING EXTERNAL SHR-66

3234318

$3.17

19

RING,RETAINING BASIC,INTERNAL 2.047

3234269

$9.52

20

RING,RETAINING BASIC,EXTERNAL 0.428

3234090

$10.32

20

RING,RETAINING BASIC,EXTERNAL 0.428

3234090

$10.32

21

RING, RETAINING

3234205

$11.11

21

RING, RETAINING

3234205

$11.11

22

RING-RETAIN,EXT,MSR-32(130296)

3235214

$9.52

22

RING-RETAIN,EXT,MSR-32(130296)

3235214

$9.52

22

RING-RETAIN,EXT,MSR-32(130296)

3235214

$9.52

23

RING, RETAINING VSH-237

3235216

$10.32

24

SHAFT, INPUT 42T/20T/25T

3235764

$189.99

25

WASHER,THRUST,1.187 X 1.500 X .0600

3233378

$9.52

25

WASHER,THRUST,1.187 X 1.500 X .0600

3233378

$9.52

26

WASHER,THRUST,0.446 X 0.88 X 0.025

3234642

$10.32

27

SHIM 1.180 OD X .995 ID

3234272

$36.41

28

SHIM 2.040 OD X 1.63 ID

3234273

$13.75

29

BEARING, NEEDLE

3233014

$43.65

29

BEARING, NEEDLE

3233014

$43.65

30

BEARING, BALL, 6205 C3 25X52X15

3233019

$31.75

30

BEARING, BALL, 6205 C3 25X52X15

3233019

$31.75

31

BEARING

3233020

$47.62

32

BEARING-BALL 6010 C3 50 X 80 X 10

3233268

$51.59

32

BEARING-BALL 6010 C3 50 X 80 X 10

3233268

$51.59

33

BEARING,BALL 6207 C3 35X72X17

3234065

$47.62

33

BEARING,BALL 6207 C3 35X72X17

3234065

$47.62

33

BEARING,BALL 6207 C3 35X72X17

3234065

$47.62

34

BEARING, NEEDLE CAGE ASSY

3233384

$31.75

35

BEARING, BALL 6012 C3 60 X 95 X 18

3235218

$59.52

36

BEARING, BALL 6303 17 X 47 X 14

3234652

$15.87

36

BEARING, BALL 6303 17 X 47 X 14

3234652

$15.87

37

BEARING, BALL 6206RSH2 STD 30X62X16

3235496

$37.99

38

SPRING, COMPRESSION .360 OD X 1.125

3233830

$10.32

39

SPRING,COMPRESSION, .92 O.D. X 2.000

3234078

$24.27

39

SPRING,COMPRESSION, .92 O.D. X 2.000

3234078

$24.27

40

SPRING, COMPRESSION .46 I.D. X .73

3234089

$28.32

40

SPRING, COMPRESSION .46 I.D. X .73

3234089

$28.32

41

SPRING, WASHER

3235327

$9.52

42

TUBE, SNORKEL MACH

3234278

$101.17

43

DRUM-SHIFT,MACH.(255289)

3235463

$279.27

44

GEAR, SECTOR 16T

3233839

$36.41

45

GEAR-SECTOR,31T

3233832

$36.41

46

PLATE, PARK 12-FACE

3235456

$40.46

47

DETENT STAR

3235603

$40.46

48

SHAFT, IDLER 29T

3235223

$128.24

49

SHAFT-REVERSE,27T(285878)

3235380

$246.89

50

SHAFT, FRONT OUTPUT

3235394

$133.56

51

BELLCRANK 92 DEGREE

3235227

$28.32

52

COLLAR-SHIFT

3234073

$31.75

53

TUBE, VENT 90 -1/4" HOSE

3234230

$10.51

54

GEAR, LOW 67T

3235232

$125.46

55

ENGAGEMENT DOG, 6-FACE

3235233

$129.51

56

GEAR, 53T

3235234

$99.74

57

GEAR, 46T STAGE 3

3235236

$128.24

58

GEAR, 13T SNORKEL

3235237

$156.74

59

SHAFT-SHIFT(352973)

3235238

$42.74

60

GEAR, 46T STAGE 2

3235381

$156.74

61

SHIFT DOG, PARK

3235457

$145.70

62

RAIL, SHIFT SHAFT

3235542

$28.32

63

SPROCKET 48T 6-FACE

3235762

$128.24

64

WELDMENT, REAR MOUNT BRACKET

3235558

$53.24

65

SUBASSEMBLY, SECTOR COVER [INCLUDES ALL HARDWARE]

3235713

$135.54

66

SUBASSEMBLY OUTPUT

3235335

$408.49

67

SUBASM.,SHAFT

3235336

$446.49

68

SUBASSEMBLY SHIFT FORK

3235454

$89.03

68

SUBASSEMBLY SHIFT FORK

3235454

$89.03

69

SUBASSEMBLY, PAWL DETENT, ROLLER

3235452

$36.41

70

SUBASSEMBLY, LH CASE

3235514

$669.99

71

SUBASSEMBLY RH

3235765

$649.99

72

COVER-BEARING,CNTR DR.

3235241

$48.56

73

BRACKET WIRE HARNESS

3235350

$8.89

74

BRACKET, REAR MOUNT

3235559

$40.46

75

CHAIN SILENT, TYPE 103 .25P X .48W X 58L

3235633

$267.13

76

SWITCH, ROTARY 2 PIN RESISTIVE

7661999

$117.37

77

SENSOR-SPEED,TRANS

4013908

$109.27

78

O-RING

3234302

$7.27

79

O-RING, -012 VITON

3233836

$6.87

80

O-RING, -014 VITON

3233828

$6.87

81

SEAL, TRIPLE LIP, VITON 25 X 80 X 10

3235658

$66.49

82

SEAL, TRIPLE LIP, VITON 40 X 70 X 7

3235052

$32.37

82

SEAL, TRIPLE LIP, VITON 40 X 70 X 7

3235052

$32.37

83

SEAL, TRIPLE LIP, VITON HELIX 30 X47

3235495

$47.49

84

PLUG, M18 X 1.5

3234755

$27.78
