- RZR XP 1000 (R12) - Z16VDE99AF/AM/LM/M99AM
DRIVE TRAIN, CLUTCH COVER AND DUCTING - Z16VDE99AF/AM/LM/AS (49RGRCLUTCHCVR151000)

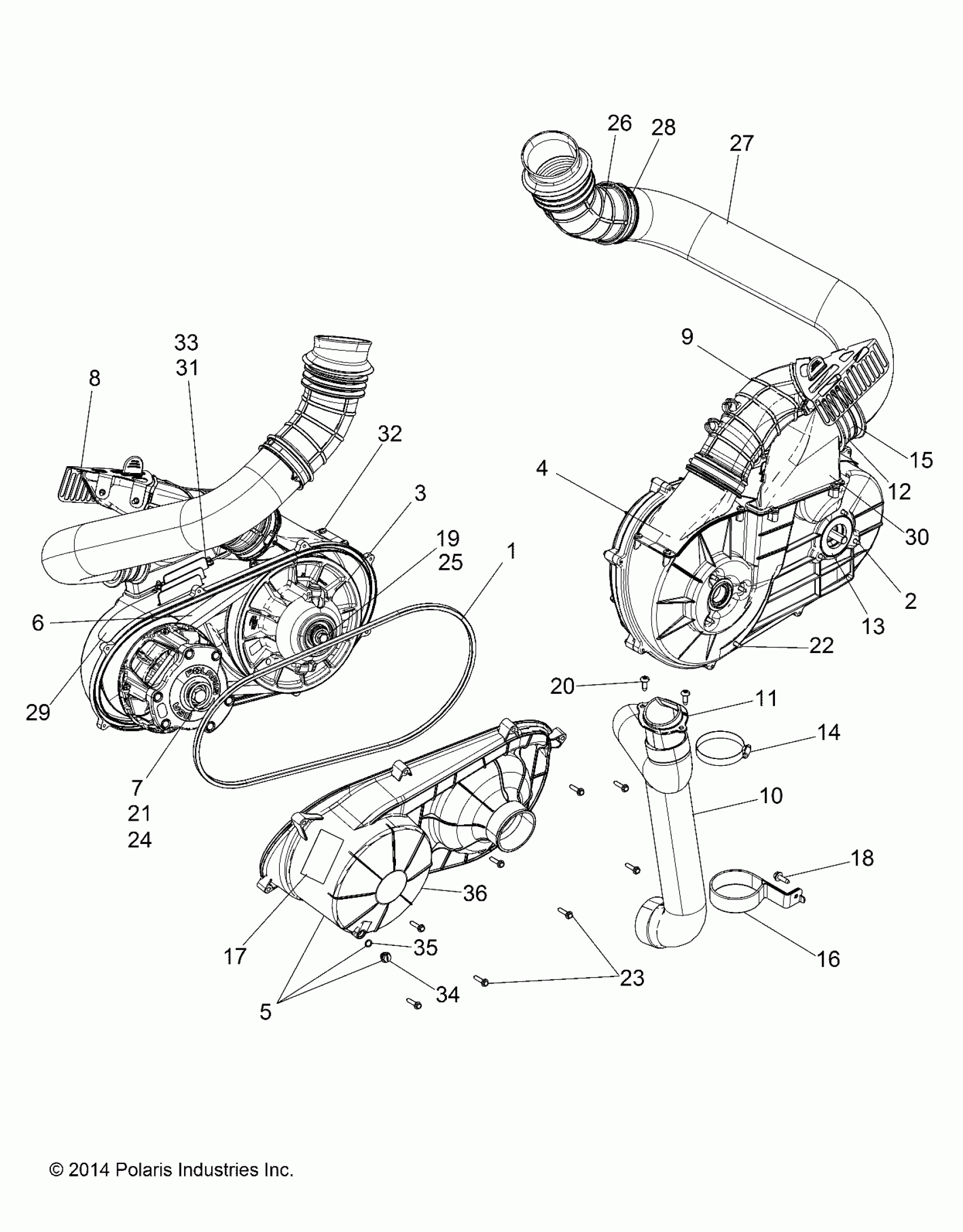

Polaris RZR XP 1000 (R12) - Z16VDE99AF/AM/LM/M99AM DRIVE TRAIN, CLUTCH COVER AND DUCTING - Z16VDE99AF/AM/LM/AS (49RGRCLUTCHCVR151000) Diagram
#
Description
Price
1
SEAL, OUTER CLUTCH COVER
5521831
Unavailable
2
SCREW
7519279
$10.39
3
ASM., CLUTCH, DRIVEN
-------
Unavailable
4
ASM., COVER, CLUTCH, INNER [INCL. 29-33]
2635158
$159.99
5
ASM., COVER, CLUTCH, OUTER [INCL. 34-36]
2635611
$175.99
6
BELT, DRIVE
3211180
$159.99
7
WASHER-CLUTCH RET,M14
5132441
$23.99
8
BRACKET, SCREEN, BELT
5256957
$31.99
9
HOSE, CLUTCH, AIR OUTLET
5414537
$91.99
10
HOSE, CLUTCH, INTAKE, SP
5415317
$95.99
11
BOOT, PLASTIC, INTAKE
5451776
$9.59
12
BOOT, INTAKE, CLUTCH
5813639
$10.39
13
SEAL-COVER,PTO
5813708
$23.99
14
CLAMP, HOSE
7080907
$11.19
15
CLAMP, WORM DRIVE
7081626
$7.99
16
CLAMP-P, LARGE
7082035
$23.99
17
DECAL-BELT,WARNING/CHECK
7177469
Unavailable
18
SCR-M6X1.0X20,HXHD,FLG,TDFM,BK
7518529
$1.49
19
SCREW
7519043
$9.59
20
SCREW
7519045
$3.19
21
SCREW
7519208
Unavailable
22
WASHER-.28X.62-.14(RBR-BK)-Z
7555748
$4.79
23
SCREW
7519330
$3.99
24
WASHER
7556003
$6.39
25
WASHER
7556130
$6.39
26
HOSE, CLUTCH, AIR IN
5414580
$87.99
27
DUCT, INTAKE, CLUTCH AIR
5450655
$99.99
28
CLAMP, HOSE
7081914
$10.39
29
BRKT-GUARD,CLUTCH COVER
5256223
$35.99
30
DUCT-CLUTCH,AIR INLET
5439086
$39.99
31
SCREW
7518546
$3.19
32
SCREW
7519205
$1.59
33
NUT-HXFL-M6X1.0 8 ZB3 NYL
7547453
$3.99
34
O RING-.364X.504X.07
5410542
Unavailable
35
PLUG-DRAIN,CLUTCH COVER
5434264
$5.59
36
COVER, CLUTCH, OUTER, SP
5451767
Unavailable
