- RZR XP 1000 (R12) - Z16VDE99AF/AM/LM/M99AM
BODY, SEAT ASM. AND SLIDER - Z16VDE99AF/AM/LM/AS/M99AM (701019)

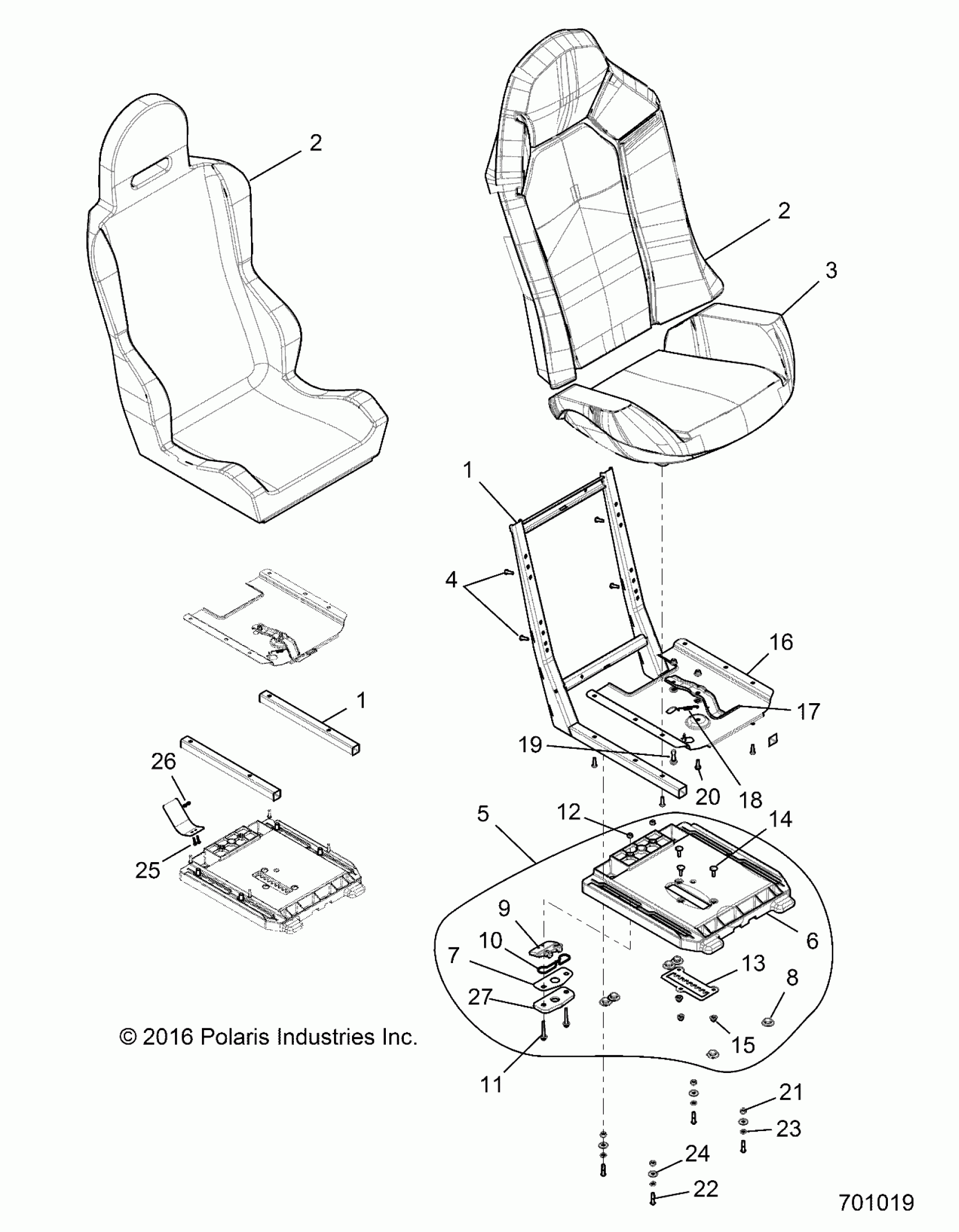

Polaris RZR XP 1000 (R12) - Z16VDE99AF/AM/LM/M99AM BODY, SEAT ASM. AND SLIDER - Z16VDE99AF/AM/LM/AS/M99AM (701019) Diagram
#
Description
Price
1
FRAME, SEAT
1021289
$67.99
1
FRAME, SEAT
1021289
$67.99
2
ASM-SEAT BACK,BLK/WHITE [AF][M99AM][AS]
2686828
$409.49
2
ASM-SEAT BACK,LIME S/BLK [AM][LM]
2686797
$409.49
2
ASM-SEAT BACK,BLK/WHITE [AF][M99AM][AS]
2686828
$409.49
2
ASM-SEAT BACK,LIME S/BLK [AM][LM]
2686797
$409.49
3
ASM-SEAT BTM,BLK/WHITE [AF][M99AM][AS]
2686831
$247.99
3
ASM-SEAT BTM,LIME S/BLK [AM][LM]
2686800
$239.99
4
SCREW
7515177
$3.19
5
ASM., BASE, SEAT SLIDER [INCL. 6-14, QTY 6 OF 15]
2685704
$195.99
6
SEAT-BASE [INCL. 7-12]
5450170
$42.06
7
PLATE-LATCH,SEAT
5258647
$6.39
8
GROMMET, SEAT BASE
5413441
$3.99
9
HANDLE-SEAT BASE LATCH
5437121
$4.84
10
SPRING, LATCH, SEAT
7081466
$39.99
11
Screw
7517610
$1.59
12
NUT-6MM X 1 NYLOK-Z
7546703
$1.49
13
BRACKET, SEAT SLIDER ADJUSTMENT PLATE
5257975
Unavailable
14
BOLT, CARRIAGE
7518994
$3.22
15
NUT- M8X1.25, FLG, NYLOC-OLIVE D
7547332
$3.99
16
BRACKET, SEAT SLIDER MOUNTING PLATE
5261437
$59.99
17
BRACKET, SEAT SLIDER LEVER
5260733
$27.99
18
SPRING
7044099
$5.59
19
BOLT, SHOULDER
7518786
$2.39
20
BOLT, SHOULDER
7518897
$1.59
21
TUBE, SPACER
5337939
Unavailable
22
SCREW
7519296
$1.59
23
WASHER, SPRING LOCK
7552801
$1.59
24
Washer, Flat
7555859
$1.49
25
SCREW
7520177
$3.19
26
NUT, NYLOCK
7547624
$2.39
27
LATCH-COVER PLATE,BLK
5450510-070
$4.79
