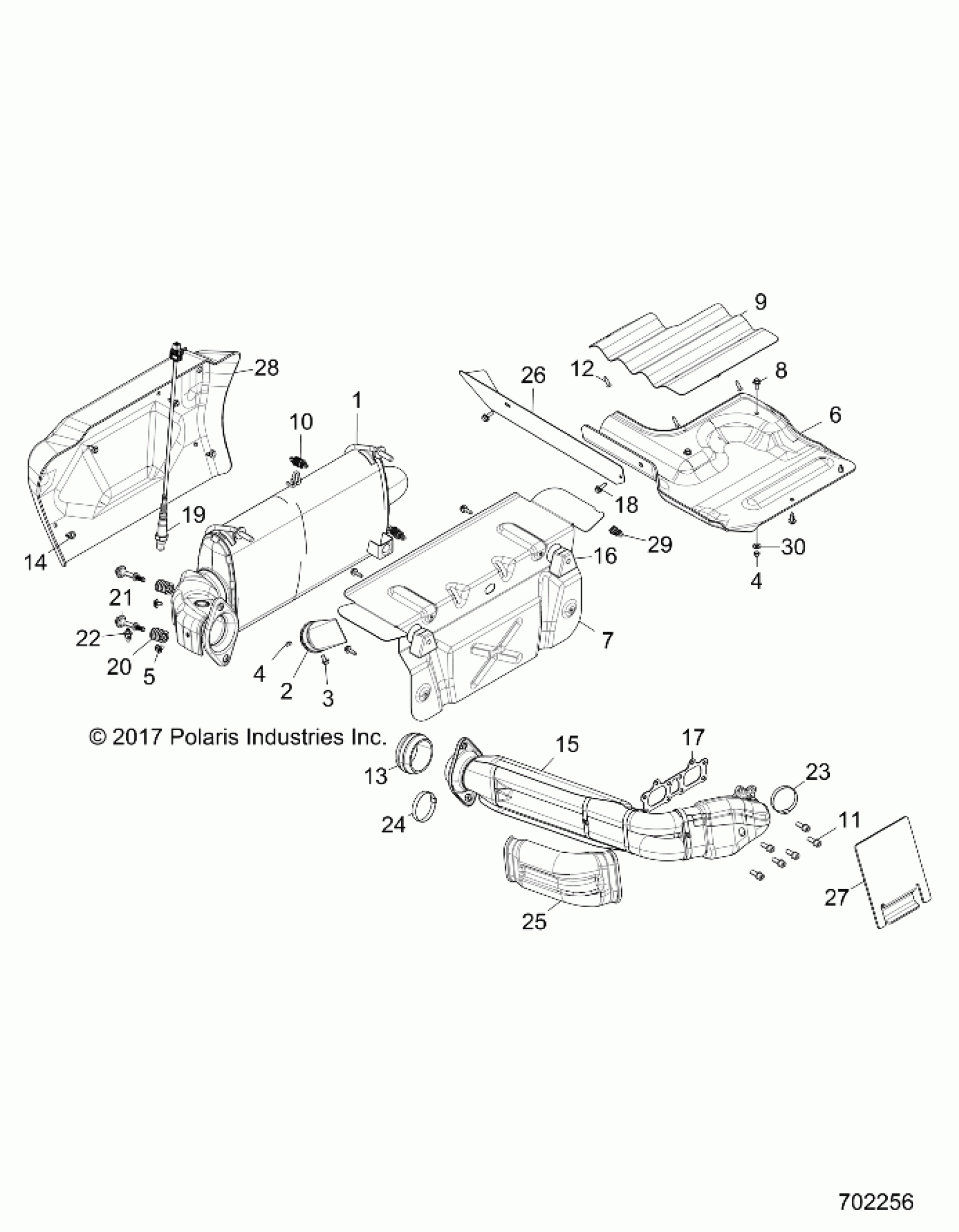

Polaris RZR XP 1000 (R08) - Z18VDE99AK/AW/AJ/BJ/BK/BW/LW/KAK/BK/MAL/RAL/BL ENGINE, EXHAUST SYSTEM - Z18VDE99AK/AW/AJ/BJ/BK/BW/LW/K99AK/BK/M99AL/R99AL/BL (702256) Diagram

#

Description
Price

1

ASM-SILENCER [INCL. 2-5]

1263066

$642.39

2

ARRESTOR, SPARK

1262390

$47.99

3

SCREW

7517257

$9.59

4

NUT-HEX-M6X1.0 8 SPC

7547120

$4.79

4

NUT-HEX-M6X1.0 8 SPC

7547120

$4.79

5

SCR-HHSEMS-M6X1.0X10 A286,LOCK

7520291

$7.19

5

SCR-HHSEMS-M6X1.0X10 A286,LOCK

7520291

$7.19

6

SHIELD-BOX,FRONT

5814245

$43.99

7

SHIELD-REAR,AL [TO 1/15/2018]

5263026

Unavailable

7

SHIELD-REAR,STAINLESS [FROM 1/15/2018]

5266576

Unavailable

8

SCR-HXFL-M6X1.0X16 8.8 ZPB

7518591

$3.73

9

SHIELD-ACCESS PANEL

5262942

$36.41

10

SPRING-EXHAUST

7041789

$7.99

11

SCREW

7518984

$7.99

12

SCR-#10X3/4-HI/LO-PN-T25,TRX-M

7512026

$1.49

13

GASKET, DOUBLE, SPHERICAL

3610236

$47.99

14

Rivet

7661855

$1.49

15

ASM., HEADPIPE [INCL. 23-25]

1262599

$363.99

16

MOUNT, ISOLATOR

5450115

$14.39

17

GASKET-EXHAUST SEAL

3610184

$48.56

18

SCR-M6X1.0X20,HXHD,FLG,TDFM,BK

7518529

$1.49

19

SENSOR-LAMBDA,LSF 4.2

4011853

$135.54

20

SPRING, SPHERICAL, EXHAUST

7044274

$14.39

21

STUD-SPHERICAL,EXHAUST

7520079

$13.59

22

CLIP FIR-TREE,DIA6-33MM

7081496

$4.79

23

CLAMP-HEAT SHIELD,EXHAUST

7081156

$7.19

24

CLAMP, HEAT SHIELD,EXHAUST

7081579

$7.19

25

SHIELD-HEAT,HEADPIPE,OUTSIDE

5257570

Unavailable

26

SHIELD-FOIL,SIDE BOX,0.05"AL

5263028

$27.99

27

SHIELD, ACCESS PANEL [TO 9/1/17]

5814082

$39.99

27

SHIELD-ACCESS PANEL [FROM 9/1/17]

5814648

Unavailable

28

SHIELD-REAR BUMPER

5814362

$55.99

29

CLIP-EDGE,1-3MM,6-45MM,SERT.

7081808

$5.59

30

WASHER-.281X1.00X.051

7556329

$1.49
