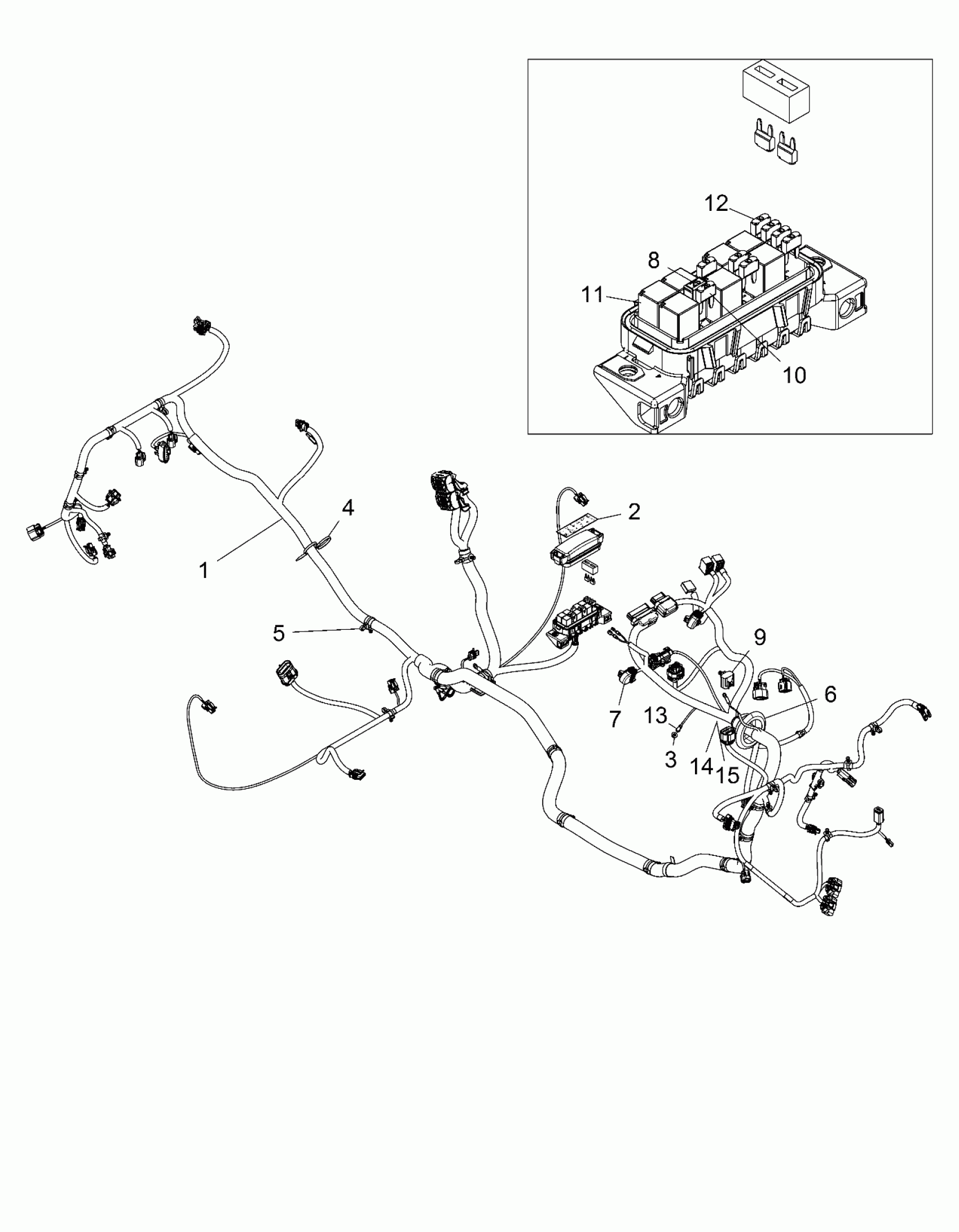

Polaris RZR XP 1000 (R08) - Z18VDE99AK/AW/AJ/BJ/BK/BW/LW/KAK/BK/MAL/RAL/BL ELECTRICAL, WIRE HARNESS - Z18VDK99AK/BK (702027) Diagram

#

Description

Price

1

HARNESS-CHASSIS,EPS,RZR,64,CR [INCL. ALL]

2413987

Unavailable

2

LABEL-FUSE BOX

7184131

Unavailable

3

CLIP-ROUTING,DIN BOX

7082020

$5.59

4

CABLE-TIE,DIA6-38MM,DUAL-LOOP

7081916

$4.79

5

CLIP FIR-TREE,DIA6-33MM

7081496

$4.79

6

GROMMET-65MM,BLK

5813954

$7.19

7

CAP-VINYL,500X1000,BLACK

5438233

$6.68

8

BREAKER-CIRCUIT,25 AMP

4015771

$63.99

9

COVER-DIAGNOSTIC,W/CLIP

4012170

$8.08

10

FUSE-25A,MINI BLADE

4011653

$7.99

11

RELAY-SPST,SERIES 303,SEALED

4011283

Unavailable

12

FUSE-IGNITION,10 AMP

2434016

$4.79

13

LED-PANEL MNT,12V,BLUE

2413217

$51.99

14

RESISTOR-5K OHM

2413793

$19.99

15

RESISTOR-7K OHM

2413792

$19.99
