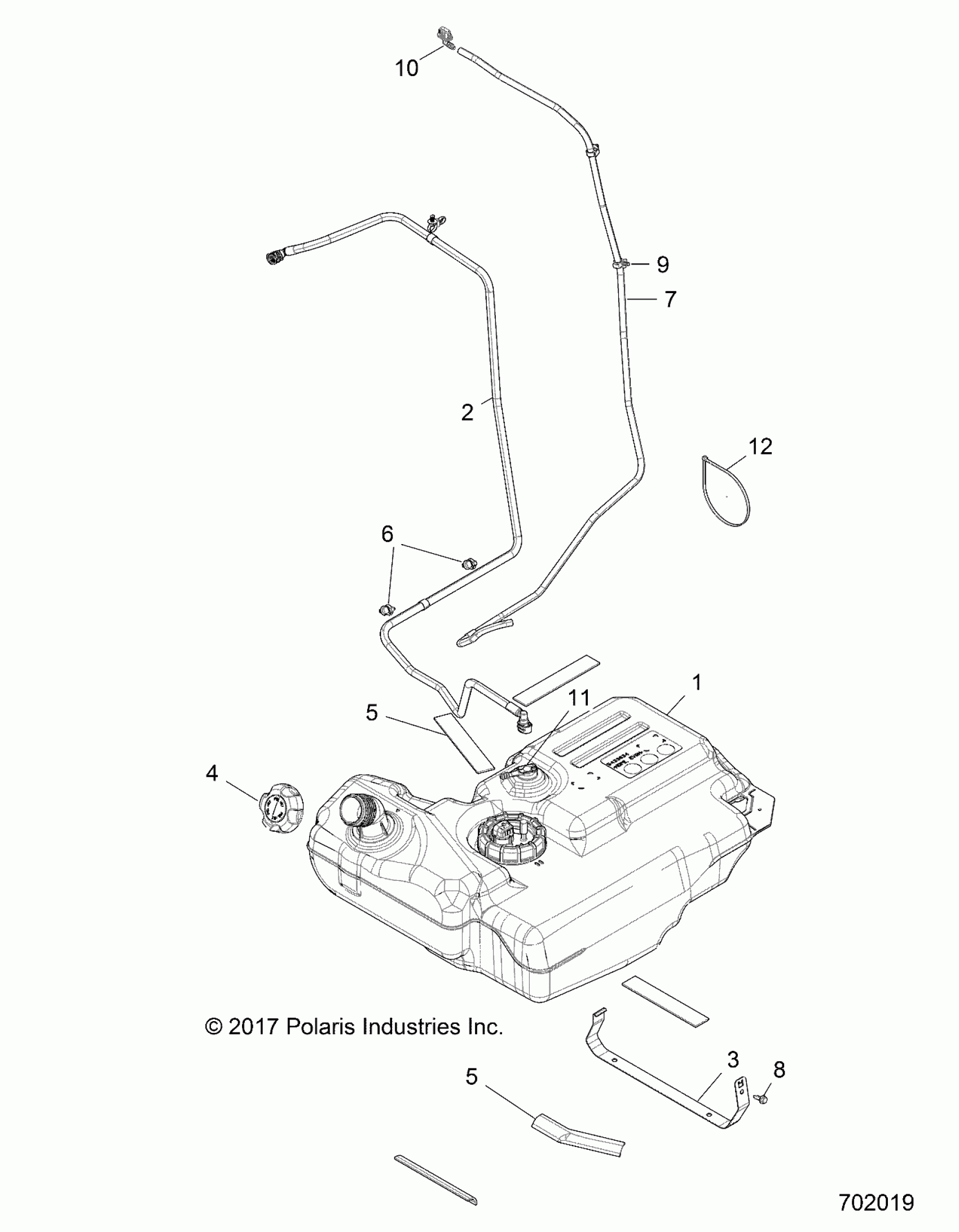

Polaris RZR XP 1000 (R08) - Z18VDE99AK/AW/AJ/BJ/BK/BW/LW/KAK/BK/MAL/RAL/BL BODY, FUEL TANK - Z18VDE99AK/AW/AJ/BK/BW/LW/K99AK/BK/M99AL/R99AL/BL (701177) Diagram

#

Description
Price

1

ASM., FUEL TANK [INCL. PUMP]

2521436

$1,149.99

2

ASM-FUEL LINE

2521837

$109.27

3

STRAP, FUEL TANK, BLK

5259555-329

$24.27

4

CAP-GAS TANK

5439075

$24.27

5

PAD-BATTERY

5810290

$7.27

5

PAD-BATTERY

5810290

$7.27

6

CLIP FIR-TREE,DIA6-33MM [QTY 4 FOR M99AL]

7081496

$4.76

7

ASM-VENT LINE,274CM [M99AL]

2521689

$58.08

7

ASM-VENT LINE,180CM

2521749

$52.24

8

SCR-M6X1.0X20,HXHD,FLG,TDFM,BK

7518529

$1.19

9

CLIP, ROUTING, HINGED [QTY 2 FOR M99AL]

7670116

$5.56

10

FITTING-VENT LINE,90 [NOT USED ON M99AL]

5453464

$5.56

11

KIT, FUEL PUMP

2205502

$469.99

12

CABLE-TIE,10-102MM,WEATH.-RES.

7080761

$2.41
