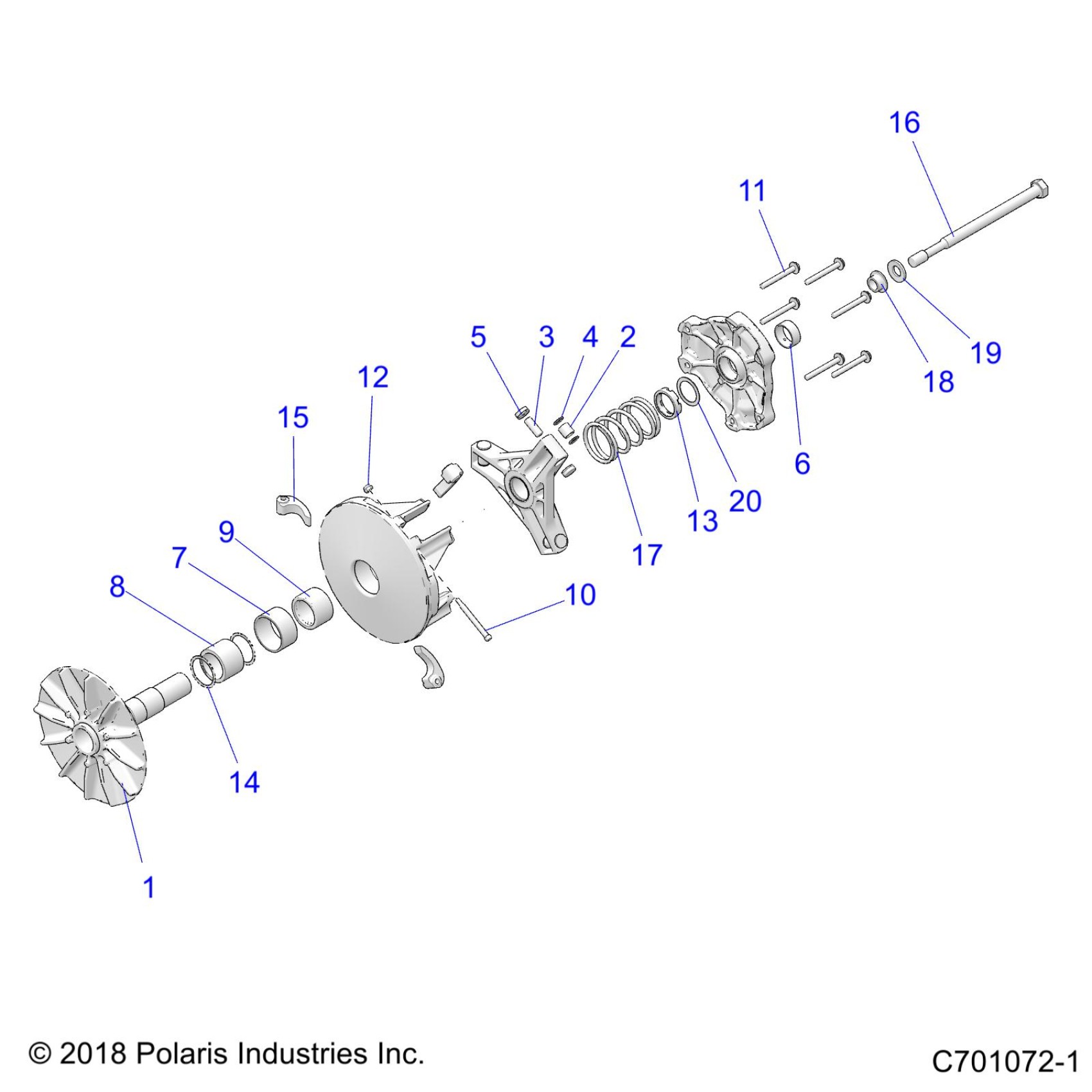

Polaris RZR XP 1000 (R04) - Z21NAE99AC/AK/BC/BK/K99AG/AP/BG/BP DRIVE TRAIN, PRIMARY CLUTCH - Z21NAE99AC/AK/BC/BK/K99AG/AP/BG/BP (C701072-1) Diagram

#

Description
Price

1

ASM., DRIVE CLUTCH, BASIC, BEARING [INCL. 2-14]

1323317

$613.07

2

ASM-ROLLER AND BUSHING

1321622

$32.37

3

PIN-ROLLER

5020422

$2.39

4

WASHER-CLUTCH,SPIDER ROLLER

5438247

$1.59

5

BUTTON, CLUTCH, RUBBER BACKED

5450940

$7.99

6

BEARING, COVER,(10)

3576510

$9.59

7

BEARING-DU,1.75ID

3514492

$31.99

8

BEARING-NEEDLE

3514609

$35.99

9

SPACER, CLUTCH, TALL, PM

5632894

$43.99

10

SCR-SH-1/4X2 SAE4037 BLKOX&OIL

7512266

$3.19

11

SCR-1/4-20X2 1/4 HX FLNG GR5-Y

7518349

$1.49

12

NUT-10-24-FLEX LOC-Z

7541906

$3.19

13

NUT, JAM

7547498

$23.99

14

WASHER-CLUTCH,VESPEL

7556335

$6.39

15

WEIGHT-SHIFT,29-75,PM

5633720

$31.99

16

SCR-M14X1.5X215,HX,10.9,Y35,R

7518412

$34.99

17

SPRING-CLUTCH,58-135

7044263

$27.99

18

WASHER-CLUTCH RET,M14

5132441

$23.99

19

WASHER-BLVL,.567X1.125X.118-Y

7556003

$6.39

20

SPACER, CLUTCH, LIMITER

5438963

$3.99
