Description

Price

1

SHOCK-FRONT,RZRXP,PIGGYBK,LH [INCL. ALL]

7045256

$949.99

1

SHOCK-FRONT,RZRXP,PIGGYBK,RH [INCL. ALL]

7045257

$949.99

2

RES BODY, 2.0", 5.0L (ANODIZE HARD CLEAR)

1800392

$109.27

3

SHAFT, .625 CHROME NEEDLE 13.957L .144 BLEED X1

----

Unavailable

4

SNAP RING, 1.75" ID

1800159

$5.56

5

BALL, DETENT 3/16"

1800127

$6.46

6

SPRING-COMP .025X.3, 40.5#

1800128

$11.32

7

RING, SNAP, END BEARING

1800041

$8.08

8

O-RING BODY LOOP

1800030

$1.37

8

O-RING BODY LOOP

1800030

$1.37

9

WIPER, 5/8" D/TYPE- BLK

1800034

$36.41

10

Bump Stop, MCU, 2.00Dia x 1.75L (ISC 140174-N)

1800859

$82.29

11

BODY, MONOTUBE CO, 2.0 x 14.285L Hard CLEAR

1800860

$304.99

12

BRIDGE, WIDE 2.0 WER ADJUSTER (CLEAR)

1800921

$164.99

13

NEEDLE, IPC, PRESS IN

----

Unavailable

14

CAP, WIPER 2.0 PRESS IN (CLEAR ANODIZE)

1800794

$54.99

15

KNOB,CLICKER BLK (1000604)

1800418

$63.24

16

IFP PISTON ASM 1.750, W- BLEED

1800739

$44.99

17

ASM-CLICKER STUD 404613

1800758

$29.99

18

ASM. CLICKER PISTON

----

Unavailable

19

SCREW, 10X5/8 BTN SS (500603)

1800357

$2.19

20

8-32 X .125L SET SCREW CUP POINT

----

Unavailable

21

JAMB NUT, 2.0IN ACME (CLEAR)

1800868

$52.37

22

RING-RETAINING 1520119

1800862

$6.35

23

RETAINING RING WIRE 0.0625 X 1.750ID

1800795

$8.08

24

O-RING, 2-226 1600018

1800863

$4.76

24

O-RING, 2-226 1600018

1800863

$4.76

25

O-RING, 2-324

1800184

$5.65

26

Spring Retainer Supplied by Polaris

5633421

$76.89

27

#8-32 X .500 LOW HEAD SCREW

1800843

$4.76

28

O-RING, 2-108 1600026

1800864

$4.76

29

SPRING NUT-2" CLEAR 1620014-AC

1800865

$49.99

30

ASM. SEAL HEAD, 2.0, PRESS- IN, STD SEALS

1800869

$56.99

31

ASM. END CAP 2in (CLEAR)

1800755

$49.99

32

O-RING 2-312 1000312

1800810

$3.63

32

O-RING 2-312 1000312

1800810

$3.63

33

BEARING-HKFS8T-10MM 1600130

1800809

$59.99

33

BEARING-HKFS8T-10MM 1600130

1800809

$59.99

34

5mm ID x 2mm thk. O-RING

----

Unavailable

35

SPACER

----

Unavailable

36

DROOP SPACER W NEG SPRING

1800858

$44.99

37

SPRING, 500LB

----

Unavailable

38

LOCK NUT 7/16 X 20 RAW

----

Unavailable

39

2 PC PISTON ASM INTERLOCKING (WITH OUT VALVING)

1800516

$129.51

40

EXT SHAFTLOOP .625THD 1IN BEARING

1800600

$259.99

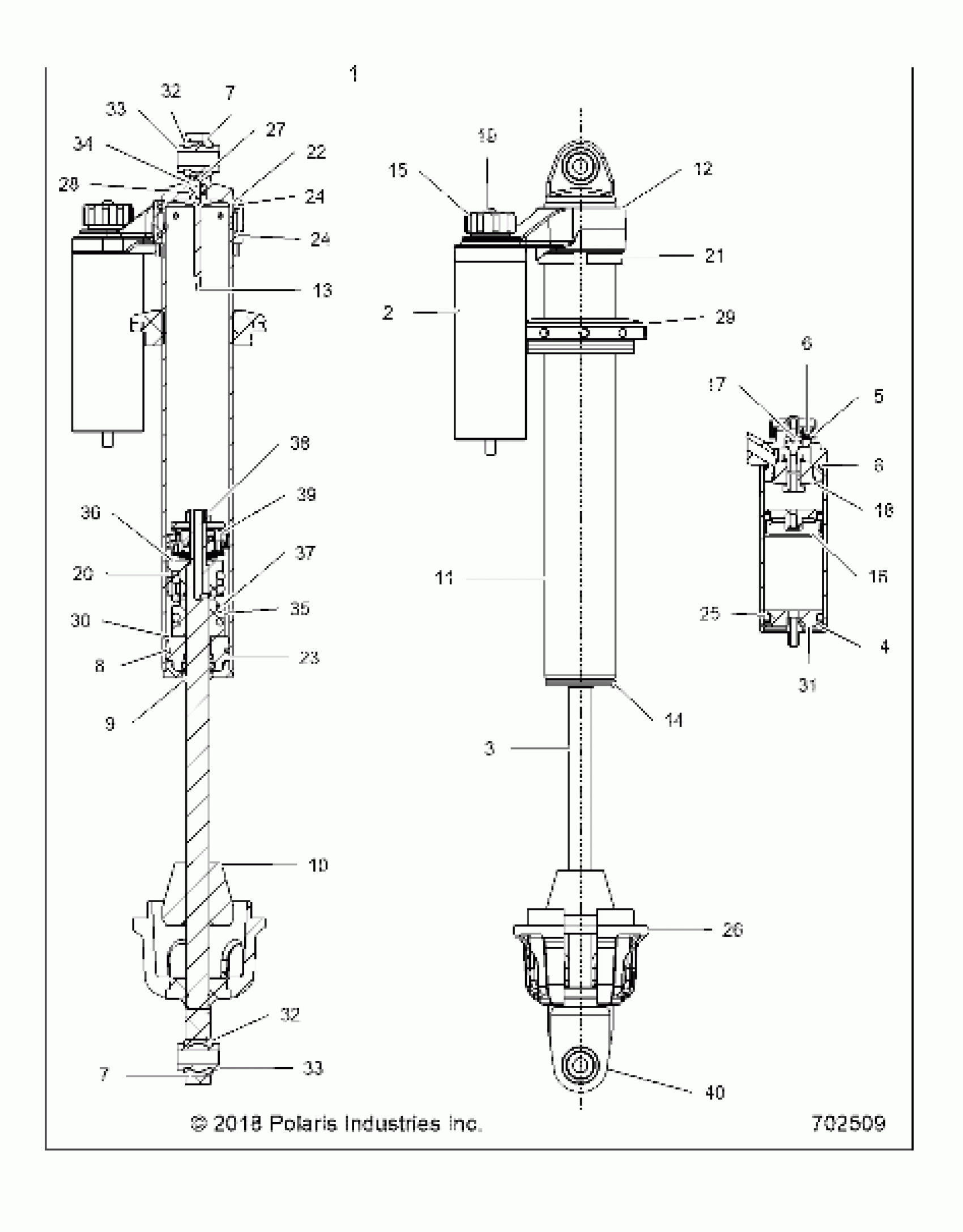

Polaris RZR XP 1000 PREMIUM RIDE COMMAND (R04) - Z23NAK99AL/99BL/AR/BR SUSPENSION, FRONT SHOCK INTERNALS - Z23NAK99A/99B (702509) Diagram

SHOCK-FRONT,RZRXP,PIGGYBK,LH [INCL. ALL]

SHOCK-FRONT,RZRXP,PIGGYBK,RH [INCL. ALL]

RES BODY, 2.0", 5.0L (ANODIZE HARD CLEAR)

SHAFT, .625 CHROME NEEDLE 13.957L .144 BLEED X1

SNAP RING, 1.75" ID

BALL, DETENT 3/16"

SPRING-COMP .025X.3, 40.5#

RING, SNAP, END BEARING

O-RING BODY LOOP

O-RING BODY LOOP

WIPER, 5/8" D/TYPE- BLK

Bump Stop, MCU, 2.00Dia x 1.75L (ISC 140174-N)

BODY, MONOTUBE CO, 2.0 x 14.285L Hard CLEAR

BRIDGE, WIDE 2.0 WER ADJUSTER (CLEAR)

NEEDLE, IPC, PRESS IN

CAP, WIPER 2.0 PRESS IN (CLEAR ANODIZE)

KNOB,CLICKER BLK (1000604)

IFP PISTON ASM 1.750, W- BLEED

ASM-CLICKER STUD 404613

ASM. CLICKER PISTON

SCREW, 10X5/8 BTN SS (500603)

8-32 X .125L SET SCREW CUP POINT

JAMB NUT, 2.0IN ACME (CLEAR)

RING-RETAINING 1520119

RETAINING RING WIRE 0.0625 X 1.750ID

O-RING, 2-226 1600018

O-RING, 2-226 1600018

O-RING, 2-324

Spring Retainer Supplied by Polaris

#8-32 X .500 LOW HEAD SCREW

O-RING, 2-108 1600026

SPRING NUT-2" CLEAR 1620014-AC

ASM. SEAL HEAD, 2.0, PRESS- IN, STD SEALS

ASM. END CAP 2in (CLEAR)

O-RING 2-312 1000312

O-RING 2-312 1000312

BEARING-HKFS8T-10MM 1600130

BEARING-HKFS8T-10MM 1600130

5mm ID x 2mm thk. O-RING

SPACER

DROOP SPACER W NEG SPRING

SPRING, 500LB

LOCK NUT 7/16 X 20 RAW

2 PC PISTON ASM INTERLOCKING (WITH OUT VALVING)

EXT SHAFTLOOP .625THD 1IN BEARING
