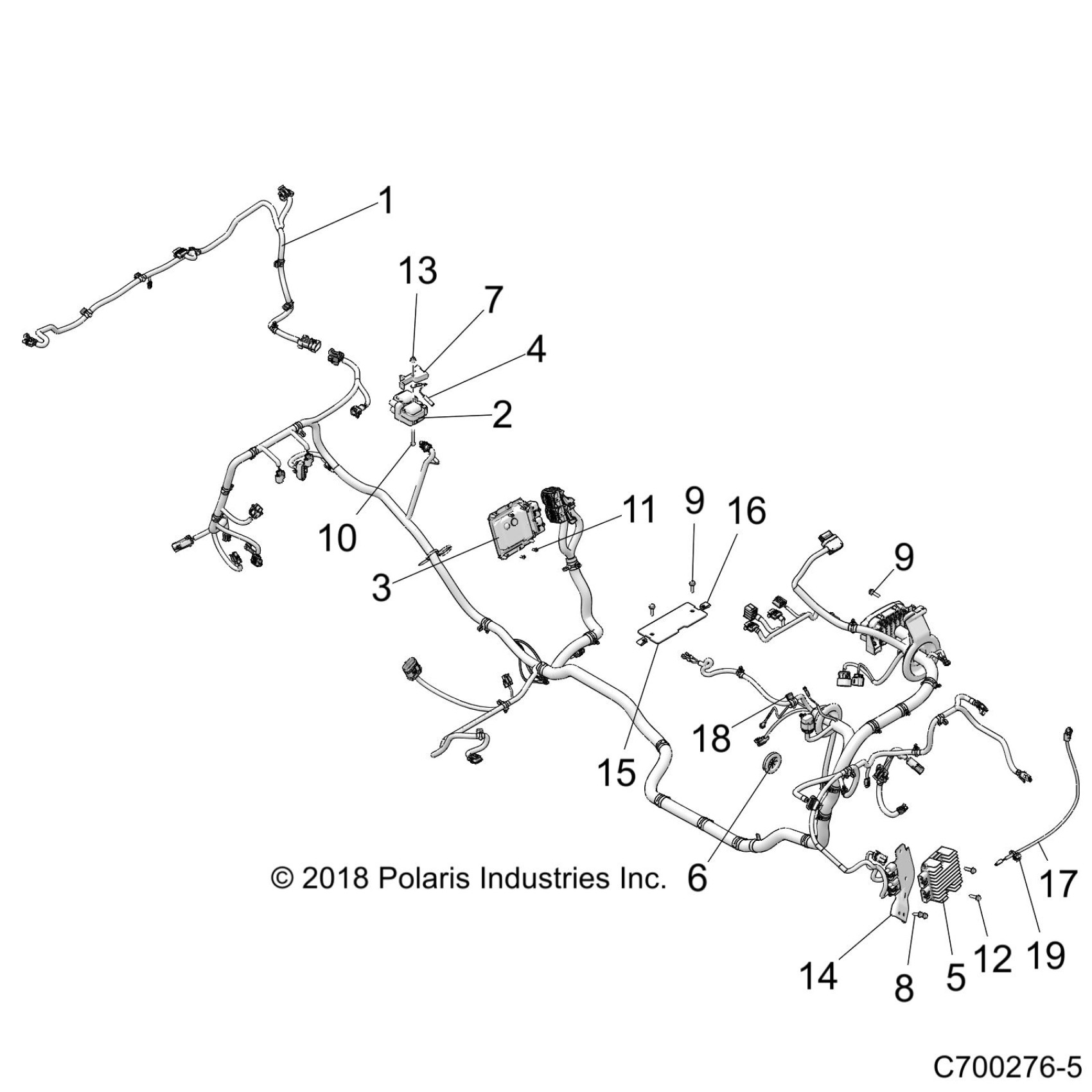

Polaris RZR XP 1000 PREMIUM RIDE COMMAND (R04) - Z23NAK99AL/99BL/AR/BR ELECTRICAL, ECM, COIL, REGULATOR - Z23NAK99A/99B (C700276-5) Diagram

#

Description
Price

1

HARNESS-BOX,RZR,72,CAMERA

2414085

$95.99

2

COIL-EFI

4010425

Unavailable

3

ECM-HARD,ME17,2CYL,250K

4014125

$694.99

4

JUMPER, COIL GROUND

4014422

$27.99

5

REGULATOR-3PH,50A,SERIES,HISPD

4016868

$123.99

6

GROMMET-ELEC,CAB,SLIT

5415049

$3.99

7

SPACER-COIL MOUNT

5436577

$3.99

8

SCR-M6X1.0X20,HXHD,FLG,TDFM,BK

7518529

$1.49

9

SCREW-HXFL-M6X1.0X20 8.8 ZY3

7518576

$3.19

9

SCREW-HXFL-M6X1.0X20 8.8 ZY3

7518576

$3.19

10

SCR-M6X1.0X40,HX/SOC/CP-B

7518780

$3.99

11

SCR-#10X1/2-HI/LO-PN-T25, TRX-M

7519091

$3.19

12

SCR-TFHFL-M6X1.0X25,ZOD

7519342

$1.86

13

NUT-M6 FLANGE,NYLOC

7547274

$1.49

14

BRKT-MOUNT,REGULATOR,ECOAT

5264572-329

$35.99

15

PANEL-CLOSEOFF,FUSE CTR LOC

5454317

$8.79

16

NUT-M6-1.0, U-TYPE (2.5-3.8)

7547674

$1.49

17

HARNESS-TEMP SENSOR

2413743

$69.99

18

CLIP FIR-TREE,DIA6-33MM

7081496

$4.79

19

CLIP, EDGE, HARNESS

7081890

$10.39
