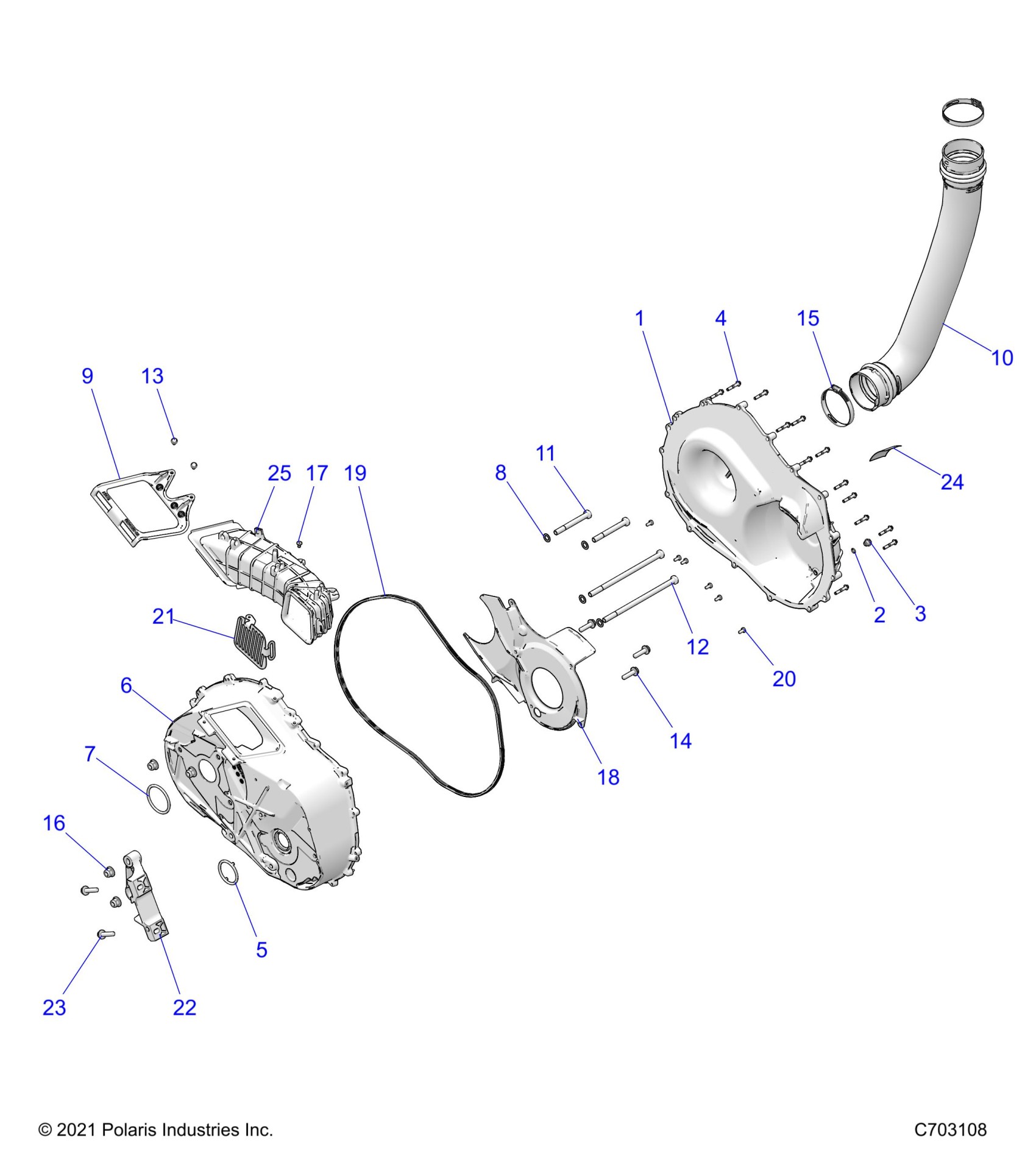

Polaris RZR XP 1000 PREMIUM (R08) - Z24NEC99AM/BM DRIVE TRAIN, CLUTCH COVER AND DUCTING - Z24NEC99AM/BM (C703108) Diagram

ASM-COVER,CLUTCH,OUTER [INCL. 2-4][TO 5/15/2025]

2639100

Unavailable

ASM-COVER,CLUTCH,OUTER [INCL. 2-4][FROM 5/15/2025]

2639856

$179.99

O RING-.364X.504X.07

5410542

Unavailable

PLUG-DRAIN,CLUTCH COVER

5434264

$5.59

SCR-HXFL-M6X2.0X38 SPC

7521195

$11.43

O-RING-2.25X2.625X.21,NBR,BARB

5417662

$8.79

COVER-CLUTCH,INNER,MACH

5144719

$227.99

O-RING-0.489X0.629X0.070,EPDM

5415647

$1.59

WASHER-.510X.840X.031 Y

7555919

$4.99

MOUNT-OUTLET DUCT

5634404

$27.99

ASM-DUCT,CVT,INLET

1244605

$95.99

SCR-TXBH-M12X1.75X110 8.8 SPC

7520945

$7.99

SCR-TXBH-M12X1.75X245 8.8 SPC

7520946

$13.59

SCR-TFHFL-M6X1.0X25,ZOD

7519342

$1.86

SCR-HHSEMS-M10X1.5X40 10.9 SPC

7521294

$5.59

CLAMP-HOSE SLOTTED,92-100 DIA

7081969

$10.39

NUT-HXFL M12X1.75 8 ZOD NYL

7547441

$4.79

RIVET-POP 3/16 (.376-.500) AL-LFB

7621460

$1.49

BAFFLE-INNER COVER

5457973

$31.99

SEAL-CLTCH CVR,SILICONE FOAM

5526344

$34.99

SCR-TXPH-M6X1.0X15 GR5 ZOD NYL

7518656

$3.99

BRKT-SCREEN,BELT

1028036

$31.99

BRKT-TRANSJOINT,MAG,MACH

5144809

$47.99

SCR-HXFL-M10X1.5X1.5 8.8 ZY3

7518531

$4.79

DECAL-BELT,WARNING/CHECK

7177469

Unavailable

DUCT-CLUTCH,OUTLET

5418437

$47.99
