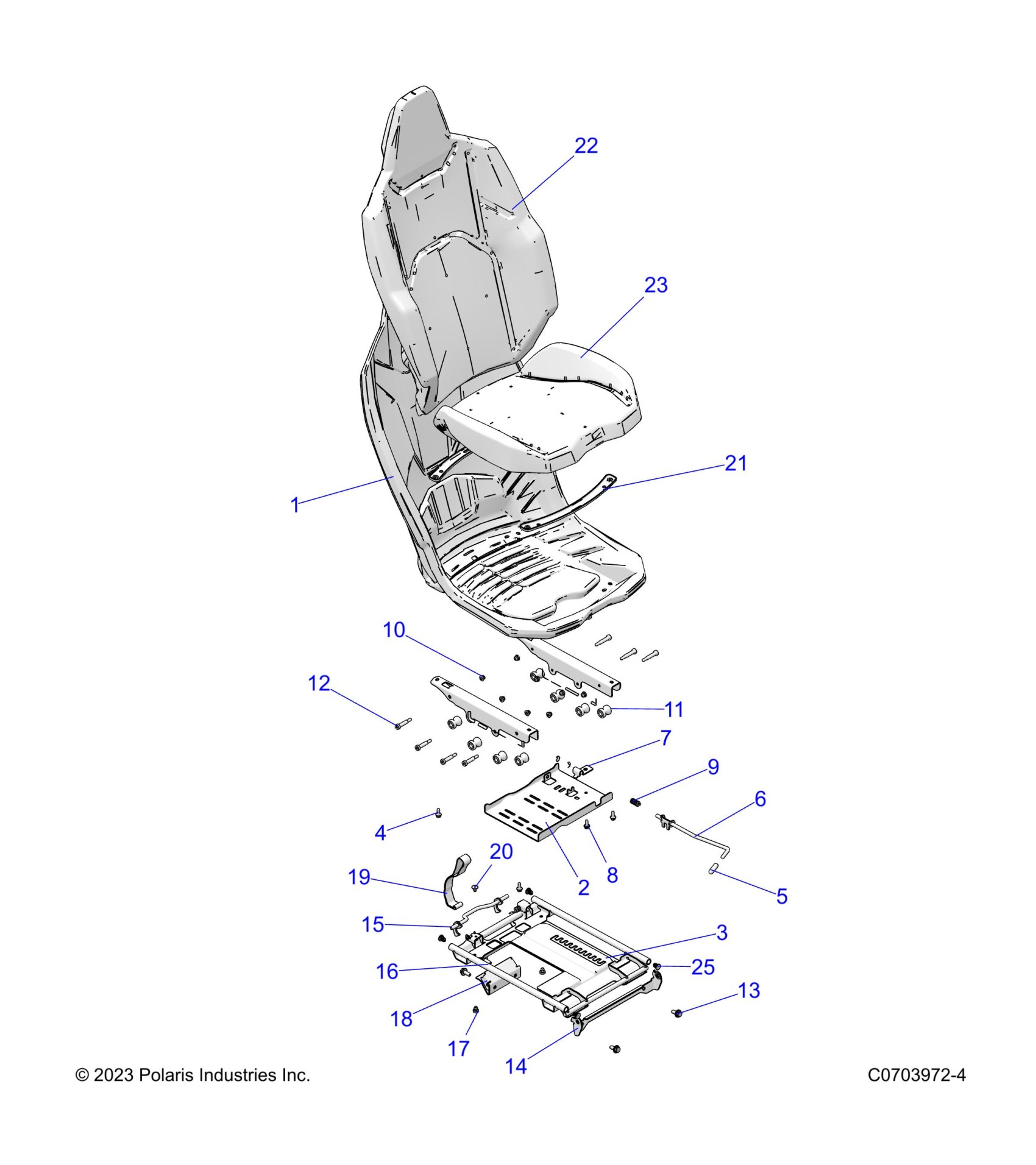

Polaris RZR XP 1000 PREMIUM (R08) - Z24NEC99AM/BM BODY, SEAT ASM. AND SLIDER - Z24NEC99AM/BM (C0703972-4) Diagram

SEAT-SHELL

5459426

$114.39

ASM-SEAT BASE-SLIDER [INCL. 5-9,15-16]

2637765

$63.99

ASM-SEAT BASE-STATIC [INCL. 15,17,19,20,24]

2639145

$119.99

SCREW-HXFL-M6X1.0X16 8.8 ZPB

7518591

$3.73

CAP-LEVER

5457972

$3.73

WELD-SEAT SLIDER ROD,ECOAT

1025338-329

$9.59

BRKT-P-CLIP,SEAT SLIDER,ECOAT

5268611-329

$5.60

SCR-M6X1X16 TR/TX,TRI-LOB

7521354

$4.66

SPRING-SEAT ADJUSTER

7045595

$5.60

NUT-HXFL-M6X1.0 8 ZB3 NYL

7548043

$4.66

ROLLER-SEAT SLIDER

5456629

$5.60

SCR-SHS-M6X1.0-M8X30

7521353

$5.60

SCR-TFHFL-M8X1.25X20 CHS ZOD

7518555

$2.39

WELD-FRONT MOUNT,SLIDER,ECOAT

1027797-329

$31.99

WELD-HOOK,REAR,ECOAT

1026909-329

$31.99

WELD-SEAT BASE,SLIDER,ECOAT �

1025336-329

$71.99

BUMPER-RUBBER

5417657

$2.79

WELD-REAR LATCH,ECOAT

1027799-329

$27.99

STRAP-SEAT

2691935

$23.99

RIVET 3/16(.063-.250)ST-ST-LF-B �

7621472

$1.49

ASM-SEAT SUPPORT

1027788

$12.79

BUN-SEAT,BACK

5814977

$35.99

ASM-CVR-SEAT BACK,BLK/ORG,BKST [COVER ONLY]

2692834

$123.99

BUN-SEAT,BOTTOM

5814978

$35.99

ASM-CVR-SEAT BTM,BLK/ORG,BK ST [COVER ONLY]

2692835

$91.99

PLUG-PLASTIC

5457971

$3.99
