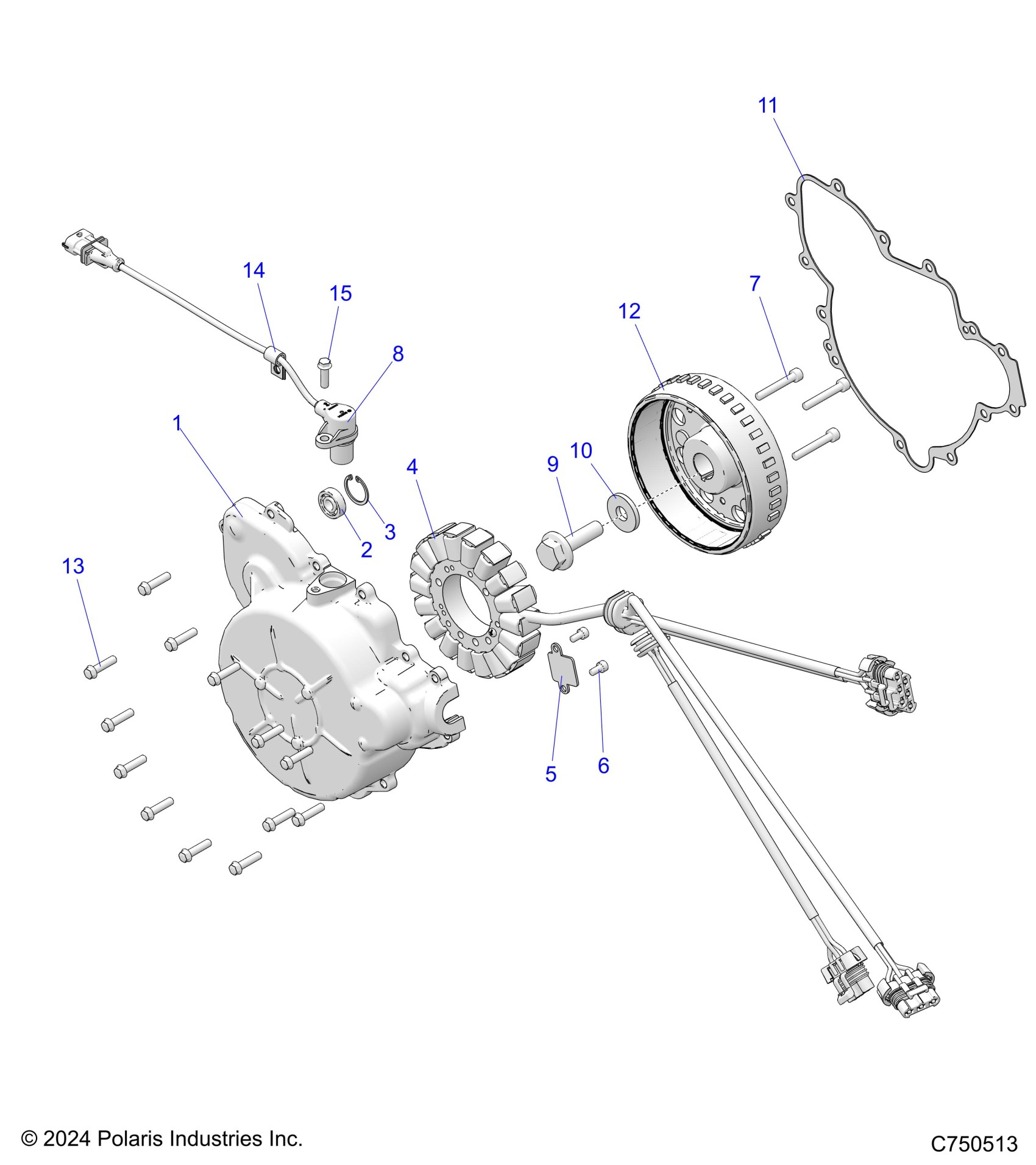

Polaris RZR XP 1000 PREMIUM (R02) - Z25NEB99A4/B4 ENGINE, STATOR AND FLYWHEEL - Z25NEB99A4/B4 (C750513) Diagram

Description

Price

ASM-COVER-STATOR [INCLUDES 1-7]

1205305

$395.99

ASM-IGN COVER,STARTER BRG [INCLUDES 2 & 3]

1206299

$159.75

COVER-STATOR,MACHINED

5143721

Unavailable

BEARING-BALL,9X24X7

3514717

$8.79

RING-SNAP,DIN472,24X1.2MM

7710654

$23.99

STATOR

4015340

$263.99

BRACKET, RETAINER, WIRE

5255473

$7.19

SCREW-M5X0.8X10 SOC/CP-D

7517847

$3.19

SCR-M6X1.0X40,HX/SOC/CP-Y/D

7510005

$5.70

SENSOR, CRANK POSITION

2411719

$101.17

SCREW-HXFL-M12X1.25X43 12.9

7520178

$27.99

WSHR-32X12X4,HARD

7556885

$5.59

GASKET, COVER, IGNITION

5814160

$39.99

FLYWHEEL

4014688

$181.49

SCREW-HXFLG,M6X1.0X25,10.9

7519297

$3.99

CLAMP-HOSE,.312DIA,VINYL COAT

7080683

$2.39

SCREW-HXFL-M6X1.0X20 8.8 ZY3

7518576

$3.19
