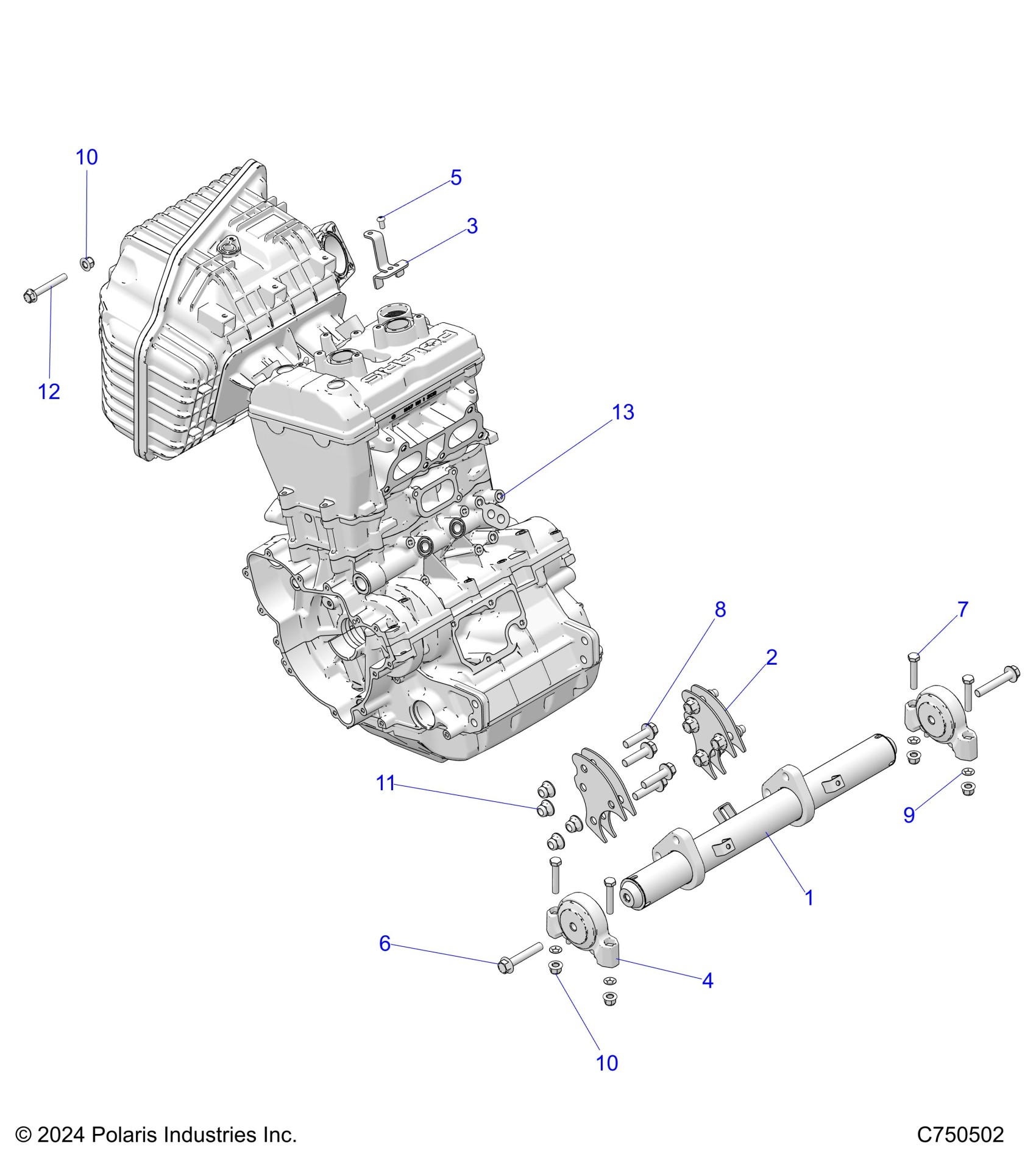

Polaris RZR XP 1000 PREMIUM (R02) - Z25NEB99A4/B4 ENGINE, MOUNTING & LONG BLOCK - Z25NEB99A4/B4 (C750502) Diagram

#

Description

Price

1

WELD-MOUNT,ENGINE,ECOAT

1027289-329

$147.99

2

BRACKET, MOUNT, ENGINE

5257952

$31.99

3

BRKT-HEAD,VENT,LINE,ECOAT

5269637-329

$35.99

4

MOUNT-ISOLATOR,DRIVELINE

1332955

$71.99

5

SCR-TORX BTNHD,M6X12,0600129

7518330

$4.79

6

SCR-HXFL-M10X1.5X60 10.9 ZOD [TO 11/1/2024]

7520355

$7.19

6

SCR-HXFL-M10X1.5X60 10.9 ZFB [FROM 11/1/2024]

7521333-60

$3.73

7

SCREW-HH M8X1.25X45 8.8 ZOD

7519097

$1.59

8

SCR-HXFL-M10X1.25X40 8.8 ZOD

7519332

$5.59

9

NUT-5/16-PAL-Y

7547030

$4.79

10

NUT- M8X1.25, FLG, NYLOC-OLIVE D

7547332

$3.99

10

NUT- M8X1.25, FLG, NYLOC-OLIVE D

7547332

$3.99

11

NUT-HXFL M10X1.25 8 ZTB NYL

7547333

$1.59

12

SCR-HXFL-M8X1.25X60 8.8 ZOD

7519298

$3.99

13

K-LONG BLOCK 999MB

2211893

$5,847.59
