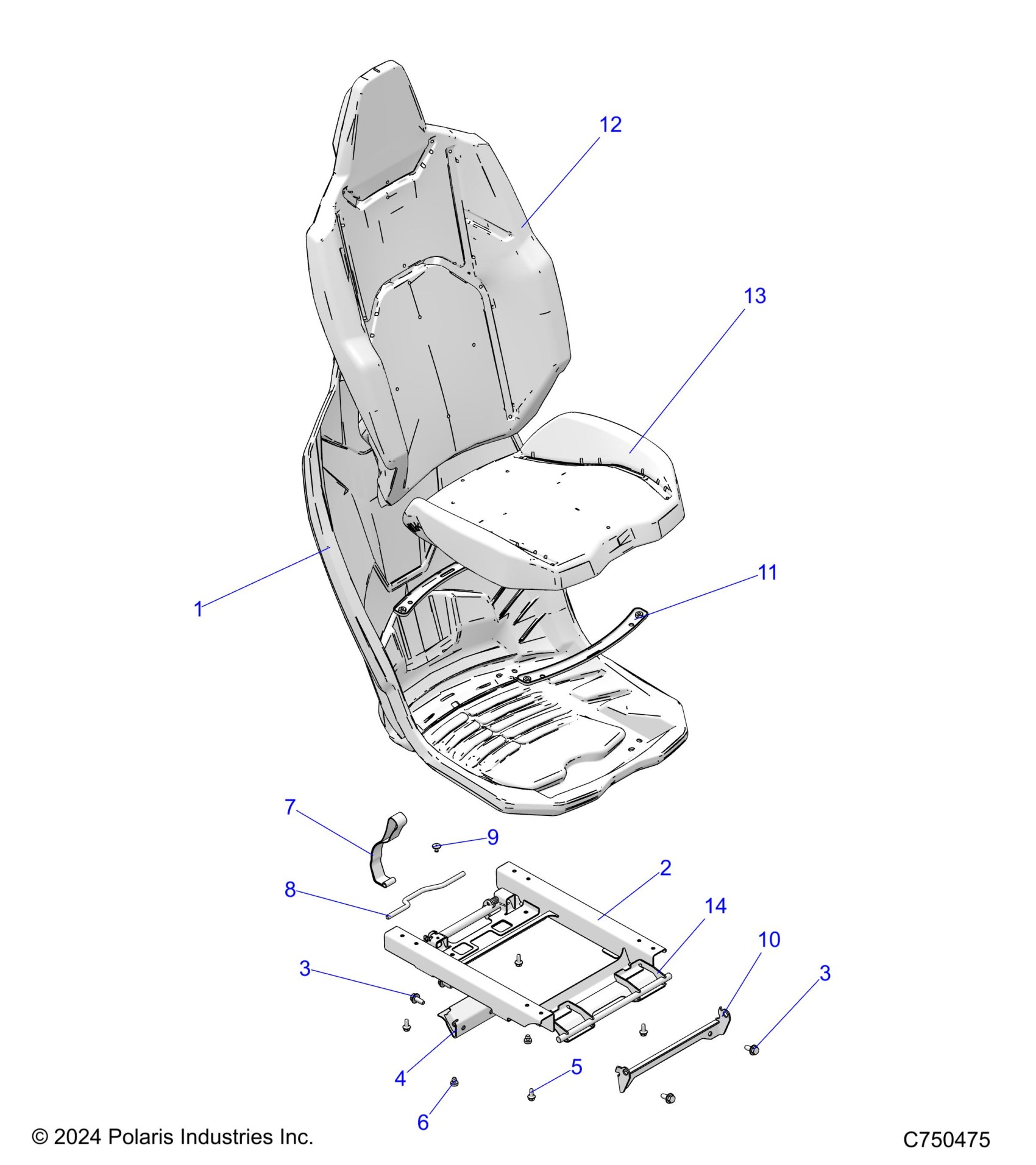

Polaris RZR XP 1000 PREMIUM (R02) - Z25NEB99A4/B4 BODY, SEAT ASM. PASSENGER - Z25NEB99A4/B4 (C750475) Diagram

SEAT-SHELL

5459426

$114.39

WELD-SEAT MNT,STATIC,ECOAT

1028113-329

$103.99

SCR-TFHFL-M8X1.25X20 CHS ZOD

7518555

$2.39

SCR-TFHFL-M8X1.25X20 CHS ZOD

7518555

$2.39

WELD-REAR LATCH,ECOAT

1027799-329

$27.99

SCREW-HXFL-M6X1.0X16 8.8 ZPB

7518591

$3.73

BUMPER-RUBBER

5417657

$2.79

STRAP-SEAT

2691935

$23.99

WELD-HOOK,REAR,ECOAT

1026909-329

$31.99

RIVET 3/16(.063-.250)ST-ST-LF-B

7621472

$1.49

WELD-FRONT MOUNT,STATIC,ECOAT

1027798-329

$35.99

ASM-SEAT SUPPORT

1027788

$12.79

BUN-SEAT,BACK

5814977

$35.99

ASM-CVR-SEAT BACK,BLK/ORG,BKST [COVER ONLY]

2692834

$123.99

BUN-SEAT,BOTTOM

5814978

$35.99

ASM-CVR-SEAT BTM,BLK/ORG,BK ST [COVER ONLY]

2692835

$91.99

ASM-SEAT MOUNT,STATIC [INCL. 2,6-9]

2639142

$167.99
