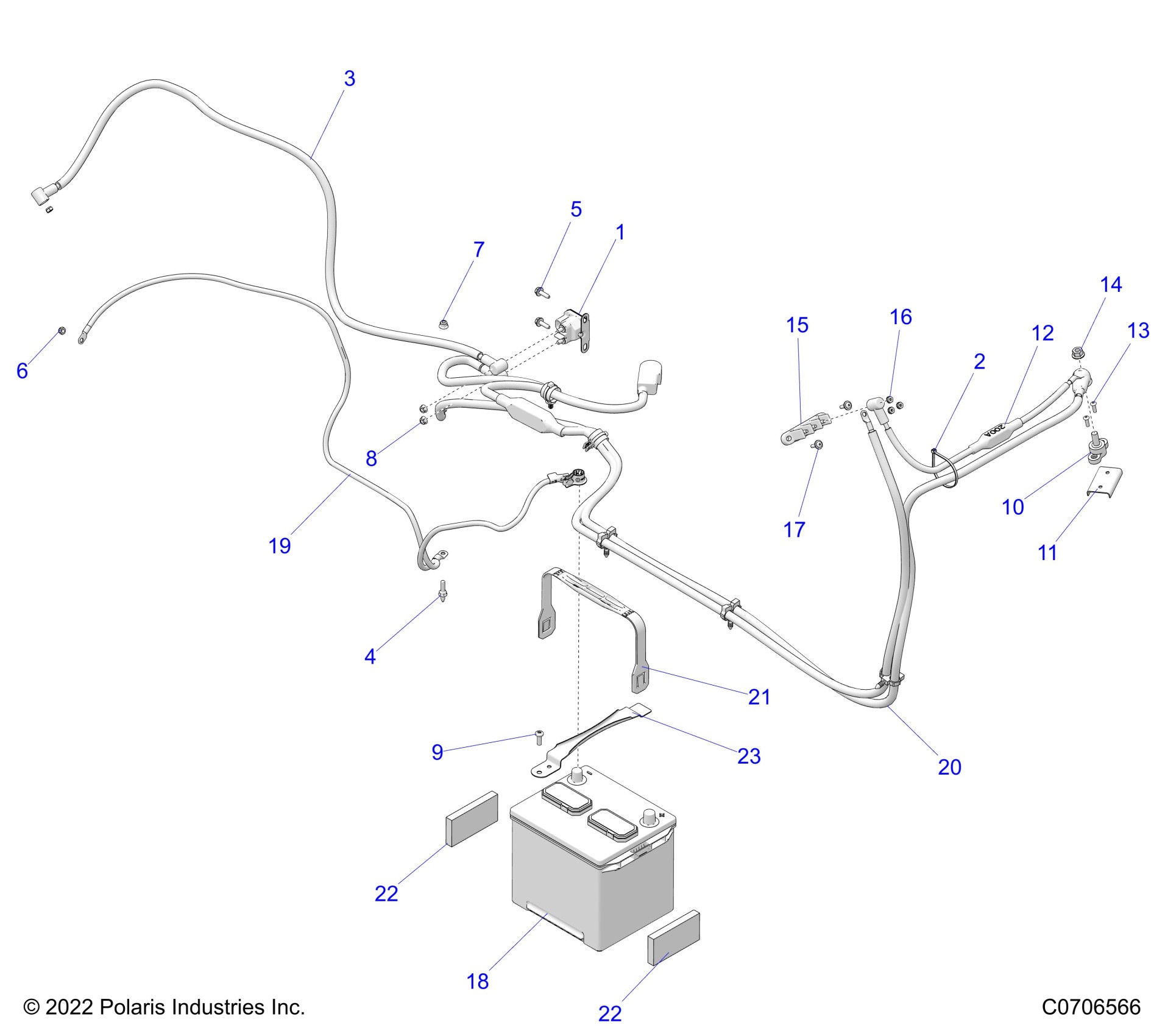

Polaris RZR XP 1000 PREMIUM (R02) - Z23NAV99AL/99BL/AR/BR ELECTRICAL, BATTERY - Z23NAV99A/99B (C0706566) Diagram

SOLENOID-STARTER,SEALED

4014655

$49.99

CABLE-TIE,DIA12-50MM,WTHR-RES.

7080138

$2.41

CABLE-START TO SOLENOID

4015426

$35.99

STUD-M6X1.0X19-M6 TAPTITE

7519333

$7.99

SCR-M6X1.0X20,HXHD,FLG,TDFM,BK

7518529

$1.49

NUT-6MM X 1 NYLOK-Z

7546703

$1.49

NUT-M6 FLANGE,NYLOC

7547274

$1.49

NUT-HXFLGHD, M6, SERRATED

7547270

$3.99

SCR-TXPH-#14 X .75 HI-LO RIE

7519731

$3.99

BLOCK-JUNCTION

4011615

$27.99

BRKT-MTG,B+ POST,BLK

5264769-329

$11.99

CABLE-JUMPER,ACCY,FUSED [FROM 6/13/2022]

4080976

$67.99

CABLE-JUMPER,ACCY,FUSED [TO 6/13/2022]

4017147

Unavailable

SCR-#10-24X5/8PN/TR-RDTORX-Y

7517756

$1.49

NUT-FLANGED,3/8-16 NYLON-Z

7547180

$2.39

BLOCK-TERMINAL,3 POST,TALL

4015778

$27.99

NUTS, KEPS, 10-32

7547341

$1.49

SCR-10-24X3/4 PH/TX/TRI-SEMS Y

7518196

$1.49

BATTERY-575 CCA,FLOODED,FILLED

4014132

Unavailable

BATTERY-HD,AGM,SEALED,R2 [HD OPTION]

4081855

$183.99

CABLE-GROUND,ENG,BAT,CHAS

4015424

$43.99

CABLE-SET,PRI PWR,FUSED

4080978

$151.99

STRAP, BATTERY, LIFT

5450916

$5.59

PAD, BATTERY, FOAM

5814037

Unavailable

PAD, BATTERY, FOAM

5814037

Unavailable

STRAP, BATTERY, MAIN, BLACK

5257312-329

$19.99
