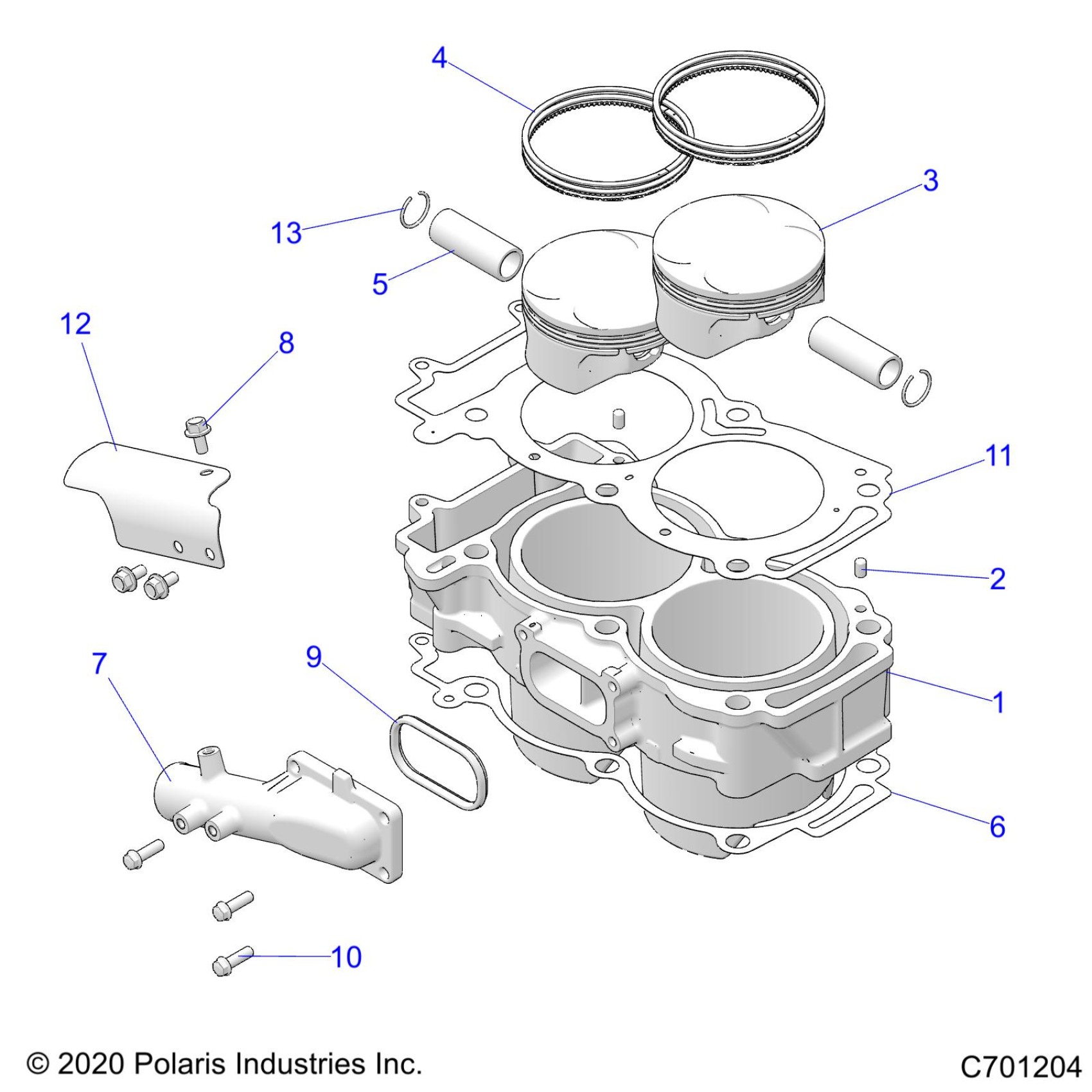

Polaris RZR XP 1000 HIGH LIFTER (R04) - Z22NAM99AR ENGINE, CYLINDER AND PISTON - Z22NAM99AR (C701204) Diagram

#

Description

Price

1

ASM-CYLINDER,999 [INCL. 2]

3023156

$479.69

2

PIN-DOWEL,M6X10

5132835

$2.39

3

KIT-PISTON 3022567 [INCL. 4,5,13]

2205244

$189.99

4

KIT-PISTON RINGS

2205245

Unavailable

5

PIN-PISTON

3022358

$23.99

6

GASKET, BASE, 2 CYL

5253037

$32.37

7

COVER-WATER INLET,MACH

5141311

$31.99

8

SCR-HXFL-M6X1.0X12 8.8

7520710

$3.99

9

GASKET-WATER,INLET

5813736

$24.27

10

SCREW-HXFL-M6X1.0X20 8.8 ZY3

7518576

$3.19

11

GASKET, CYLINDER, HEAD [TO 5/2/2022]

5813737

Unavailable

11

GASKET-CYLINDER,HEAD [FROM 5/2/2022]

5814793

$72.60

12

SHIELD-HEAT BOLTED,COOLANT

5265306

$10.39

13

RING-RTG,ROUND,20.0X1.6

3022413

$3.99
