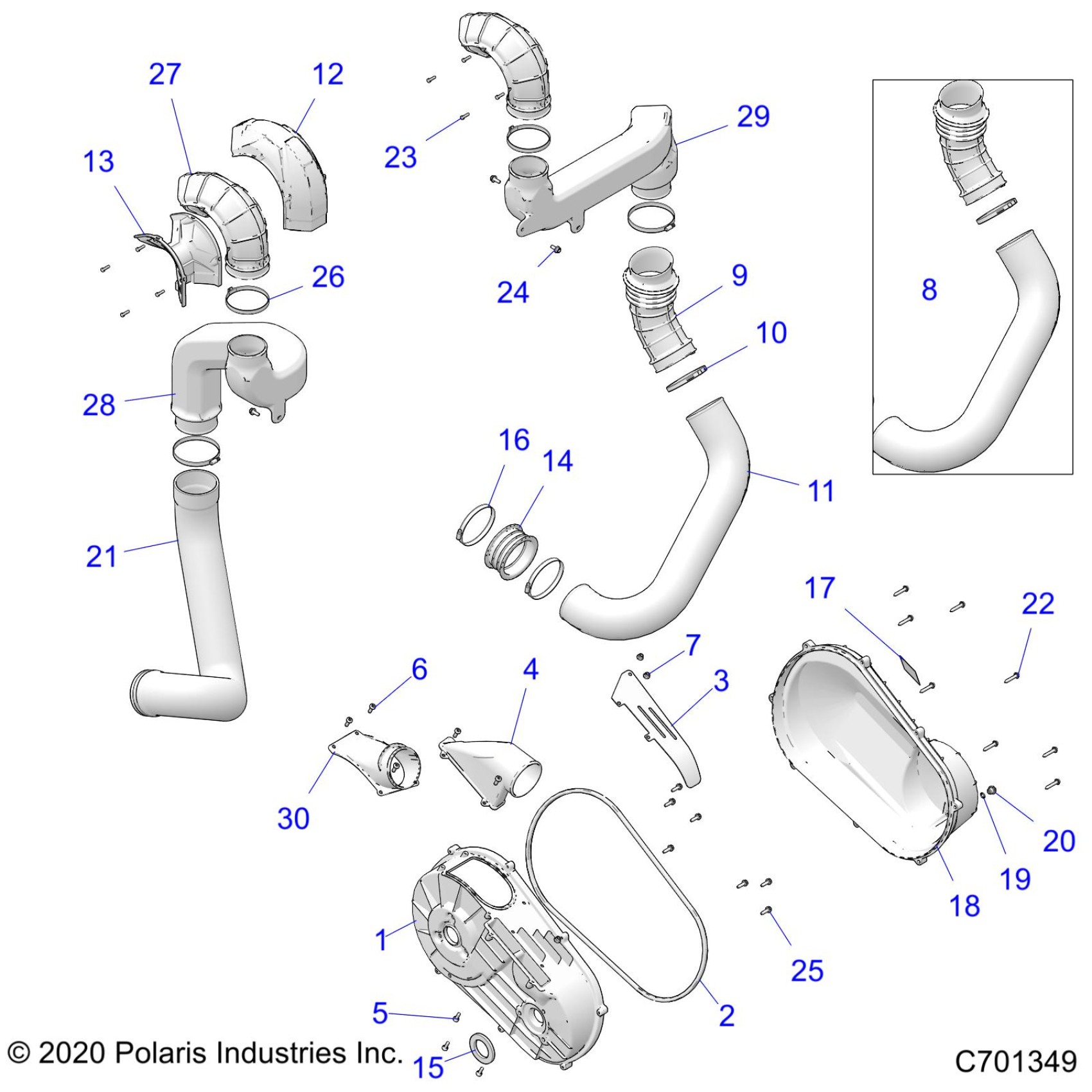

Polaris RZR XP 1000 HIGH LIFTER (R04) - Z22NAM99AR DRIVE TRAIN, CLUTCH COVER AND DUCTING - Z22NAM99AR (C701349) Diagram

#

Description
Price

1

ASM., COVER, CLUTCH, INNER [INCL. 1, 3-6, 7(QTY 3)]

2635158

$169.98

1

COVER-CLUTCH,INNER,BLK

5454487-070

$183.95

2

SEAL, COVER, CLUTCH, OUTER

5521831

$44.51

3

BRKT-GUARD,CLUTCH COVER

5256223

$44.99

4

DUCT-CLUTCH,AIR INLET

5439086

$40.46

5

SCR-M6X1.0X20MM,TX,PH,8.8-B

7518546

$3.17

6

SCR-#14X3/4 HI/LO-PH-PN TRX-M

7519205

$1.59

7

NUT-HXFL-M6X1.0 8 ZB3 NYL

7547453

$3.97

8

ASM., INTAKE, CLUTCH DUCT [INCL. 9-11]

1240782

$166.24

9

HOSE, CLUTCH, AIR IN

5414580

$93.08

10

CLAMP-HOSE,OETIKER,94.8-98

7081914

$10.32

11

DUCT, INTAKE, CLUTCH AIR

5450655

$125.86

12

CVR-PLAST,INTAKHOSE,TOP,GH GRY

5451616-728

$52.60

13

COVER, PLASTIC, INTAKE HOSE, BOTTOM, BLACK

5451617-070

$44.51

14

BOOT, INTAKE, CLUTCH

5813639

$10.51

15

SEAL-COVER,PTO

5813708

$24.27

16

CLAMP-WORM DRIVE,3.69 DIA

7081626

$7.94

17

DECAL-BELT,WARNING/CHECK

7177469

Unavailable

18

ASM., COVER, CLUTCH, OUTER [INCL. 17-20]

2207124

$223.24

19

O RING-.364X.504X.07

5410542

$4.84

20

PLUG-DRAIN,CLUTCH COVER

5434264

$5.65

21

HOSE, CLUTCH, AIR OUTLET, HC

5415126

$161.49

22

SCREW-NXFL-M6X35 ZOD HILO

7519330

$3.97

23

SCREW-TXPH-#10x1.0 ZPB HI/LO

7520164

$1.59

24

SCREW-HXFL-M6X1.0X16 8.8 ZPB

7518591

$3.79

25

SCR-TFHFL-M6X1.0X20 S/R ZOD

7519278

$4.76

26

CLAMP, HOSE

7081996

$23.81

27

HOSE, INLET, HC

5415215

$66.49

28

DUCT, CLUTCH, EXHAUST, HC

5451475

$87.13

29

DUCT, CLUTCH, INTAKE, HC

5451474

$87.13

30

DUCT, CLUTCH, AIR OUTLET

5450846

$44.51
