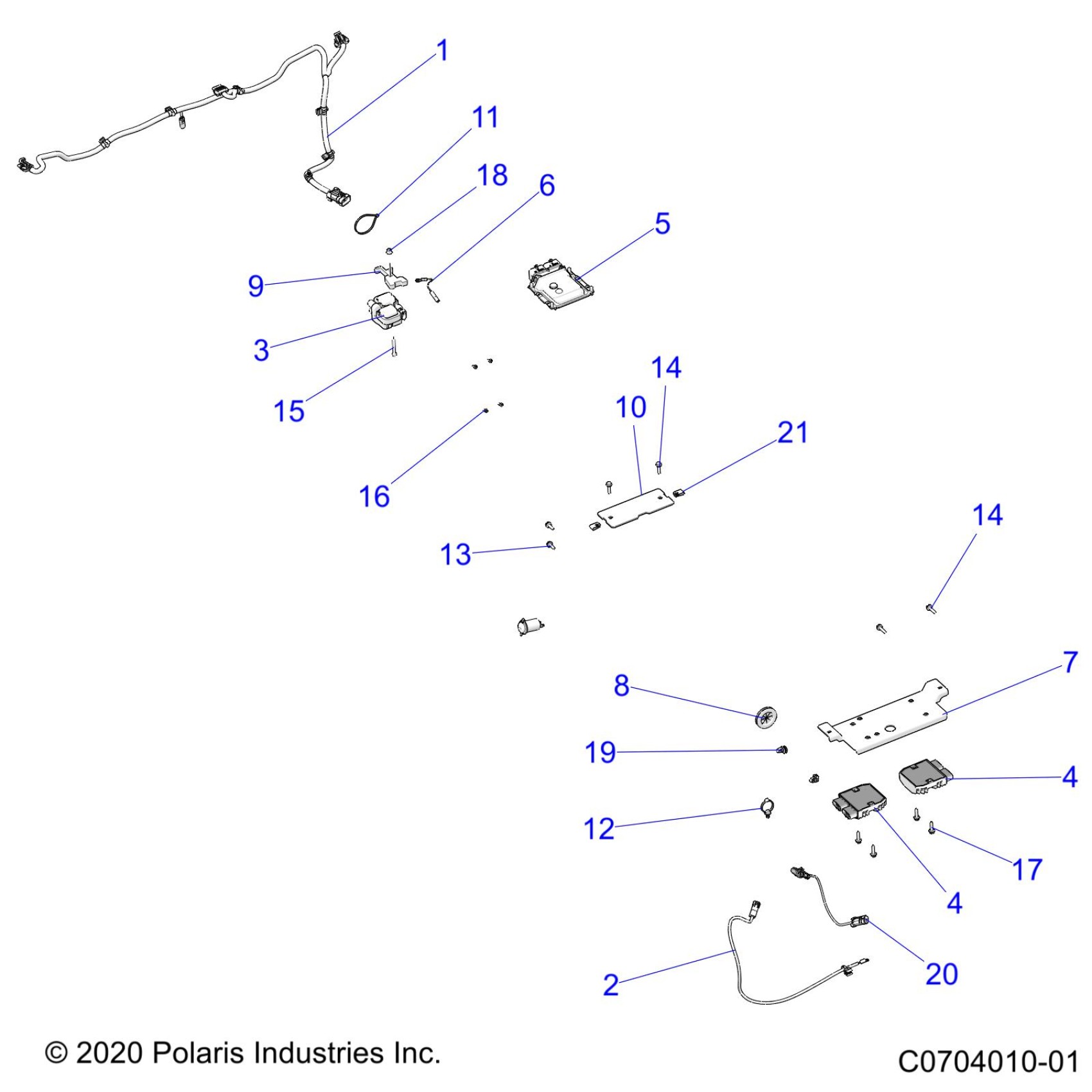

Polaris RZR TURBO S4 (R05) - Z21P4E92AE/AN/BE/BN/L92AL/AT/BL/BT ELECTRICAL, ECU, REGULATOR, ETC. - Z21P4E92AE/AN/BE/BN/L92AL/AT/BL/BT (C0704010-1) Diagram

HARNESS-BOX,RZR,72,CAMERA

2414085

$95.99

HARNESS-TEMP SENSOR [L92AL][L92BL][L92AT][L92BT]

2413743

$69.99

COIL-EFI

4010425

Unavailable

REGULATOR-3PH,35A,SERIES,105C

4012941

$227.99

REGULATOR-3PH,35A,SERIES,105C

4012941

$227.99

ECM-NO START,ME17,WB CJ125

4015694

$329.59

JUMPER, COIL GROUND

4014422

$27.99

BRKT-MOUNT,REGULATOR,DUAL,BLK

5267079-329

$43.99

GROMMET-ELEC,CAB,SLIT

5415049

$3.99

SPACER-COIL MOUNT

5436577

$3.99

PANEL-CLOSEOFF,FUSE CTR LOC

5454317

$8.79

CABLE-TIE,DIA12-50MM,WTHR-RES.

7080138

$2.41

CLIP FIR-TREE,DIA6-33MM

7081496

$4.79

SCR-M6X1.0X20,HXHD,FLG,TDFM,BK

7518529

$1.49

SCREW-HXFL-M6X1.0X20 8.8 ZY3

7518576

$3.19

SCREW-HXFL-M6X1.0X20 8.8 ZY3

7518576

$3.19

SCR-M6X1.0X40,HX/SOC/CP-B

7518780

$3.99

SCR-#10X1/2-HI/LO-PN-T25, TRX-M

7519091

$3.19

SCR-TFHFL-M6X1.0X25,ZOD

7519342

$1.86

NUT-M6 FLANGE,NYLOC

7547274

$1.49

CLIP-EDGE, 1-3mm THICKNESS [L92AL][L92AT][L92BL][L92BT]

7082402

$7.19

HARNESS-ADAPTER,FRNT,DRIVE [E92AN][E92AE][E92BE][E92BN]

2414995

$39.99

NUT-M6-1.0, U-TYPE (2.5-3.8)

7547674

$1.49
