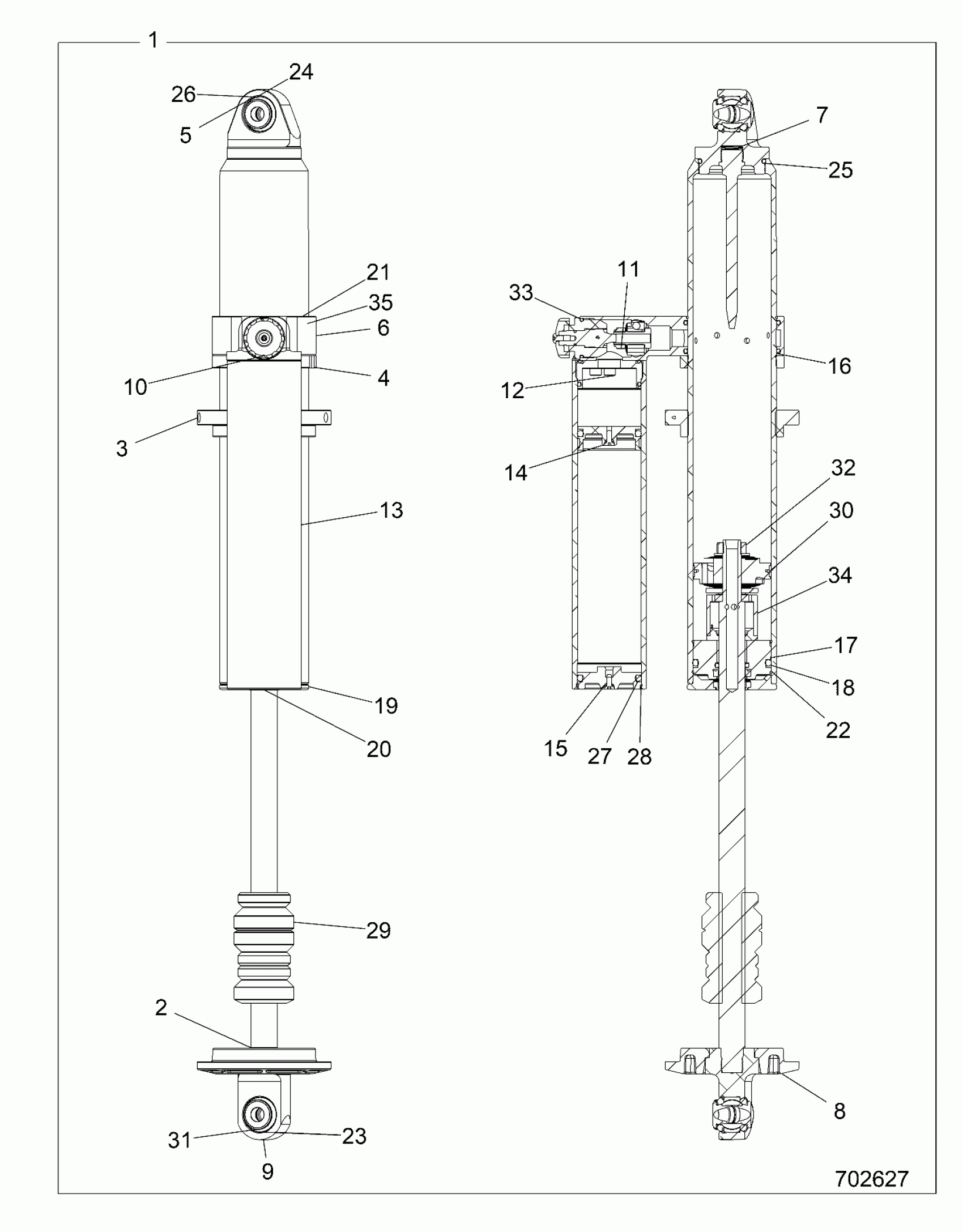

Polaris RZR TURBO S VELOCITY (R01) - Z20PAE92AC/BC/F92AC/LC SUSPENSION, REAR SHOCK - Z20PAE92AC/BC/F92AC/LC (C700165-2) Diagram

#

Description
Price

1

SHOCK-REAR,LH [INCL ALL]

7045342

$1,201.19

1

SHOCK-REAR,RH [INCL ALL]

7045343

$1,201.19

2

SHAFT, NEEDLE, .875, .625 STEM

1800972

$487.49

3

SPRING NUT, 3.0, 3.5 ID spring

1800973

$65.99

4

NUT-JAM,3.0",1830026

1800974

$143.99

5

3.0 BODY LOOP, 1.187 BORE, BRNG STEP

1800975

$179.99

6

3.0 BRIDGE, LS ADJ, 2.5 res

1800976

$351.99

7

NEEDLE-3/8,THREAD IN,NO SLOT

1801033

$143.99

8

RETAINER-SPRING,3",CAST

5633622

$43.99

9

SHAFT LOOP, 1.187 BORE, BEARING STEP

1800977

$63.99

10

ASM. SS RETENTION NUT (GOLD)

1800857

$111.99

11

VALVE, CHECK ASSEMBLY

1800848

$61.59

12

ASM. 2.5 RES MOUNT

1800978

$107.99

13

RES BODY, 2.5" X 11", WIRE RING

1800979

$231.99

14

RES, PISTON 2.5IN ASM

1800752

$164.59

15

2.5 END CAP WITH BUILT IN CHARGE PORT

1800960

$75.99

16

2-234 O-RING (VITON)

1800980

$23.99

17

3.0 SEAL HEAD, 7/8 SHAFT, PRESS IN, WIRE RING

1800981

$117.03

18

O-RING 2-331 (VITON)

1800982

$27.99

19

3.0 WIPER CAP, PRESS IN, 7/8 SHAFT

1800983

$67.99

20

WIPER 2.5 SH .875 SHAFT

1800641

$31.99

21

RETAINING RING 3.0

1800984

$2.63

22

RETAINING RING 3.0

1800985

$3.51

23

COM-10 BEARING

1800986

$79.99

24

INTERNAL SNAP RING, 1.875"

1800987

$13.59

25

O-RING 2-226 (VITON)

1800988

$19.99

26

O-RING 2-314

1800990

$3.51

27

O-RING 2-327

1800508

$5.59

28

ID RETAINING RING, 2.5"

1800847

$23.99

29

3.70L BUMP STOP LG

1800993

$35.99

30

PISTON ASSEMBLY

1800991

$242.43

31

HEIM SPACER, 12MM - COM-10

1800992

$31.99

32

NUT, FLEXLOC, THIN, 5/8-18

1800970

$43.99

33

O-RING 2-122

1800503

$1.59

34

ASM,VALVE-CHECK, RR,2 PC,.100

1800967

$131.99

35

BODY, MID-MOUNT, 3.0 CO, WITH CAP

1800971

$492.79
